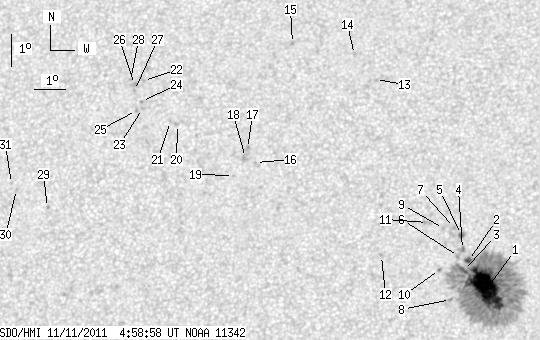

SDO HMI 2011-11-11 04:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 67.54 | 419.23 | 34.32 | 213.63 | 16.42 | 64.35 | -2.74 | 10.56 | 0.2340 | -686.3 | -412.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-11 04:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 61.34 | 373.24 | 31.16 | 189.57 | 15.97 | 65.09 | -2.00 | 8.72 | 0.2224 | -1416.5 | -478.2 | |
| 2.84 | -1.00 | 1.45 | -1.00 | 16.82 | 64.53 | -2.57 | 10.42 | 0.2383 | -805.5 | 999999 | |
| 3.36 | -1.00 | 1.71 | -1.00 | 16.52 | 64.38 | -2.72 | 11.28 | 0.2337 | -612.3 | 999999 | |
| 0.00 | 3.88 | 0.00 | 1.98 | 17.16 | 64.34 | -2.76 | 10.90 | 0.2445 | -932.0 | -708.7 | |
| 0.00 | 3.27 | 0.00 | 1.68 | 17.62 | 64.30 | -2.80 | 10.68 | 0.2523 | -943.0 | -852.2 | |
| 0.00 | 2.58 | 0.00 | 1.32 | 16.94 | 64.21 | -2.88 | 11.54 | 0.2414 | -670.0 | -448.9 | |
| 0.00 | 1.46 | 0.00 | 0.75 | 17.83 | 64.08 | -3.02 | 11.32 | 0.2566 | -823.0 | -644.4 | |
| 0.00 | 1.38 | 0.00 | 0.70 | 15.63 | 63.99 | -3.11 | 13.77 | 0.2204 | -702.0 | -515.1 | |
| 0.00 | 1.12 | 0.00 | 0.57 | 17.80 | 63.73 | -3.36 | 12.60 | 0.2572 | -765.0 | -658.2 | |
| 0.00 | 1.29 | 0.00 | 0.66 | 16.54 | 63.63 | -3.46 | 14.21 | 0.2370 | -960.0 | -854.7 | |
| 0.00 | 3.27 | 0.00 | 1.68 | 17.98 | 63.23 | -3.87 | 14.22 | 0.2622 | -417.0 | -405.0 | |
| 0.00 | 1.21 | 0.00 | 0.62 | 16.96 | 61.82 | -5.28 | 20.45 | 0.2529 | -797.0 | -520.9 | |
| 0.00 | 1.12 | 0.00 | 0.59 | 22.41 | 61.44 | -5.65 | 15.56 | 0.3411 | -673.0 | -652.2 | |
| 0.00 | 1.55 | 0.00 | 0.82 | 23.19 | 60.73 | -6.37 | 16.69 | 0.3566 | -688.0 | -468.8 | |
| 0.00 | 1.55 | 0.00 | 0.83 | 23.53 | 58.69 | -8.41 | 21.19 | 0.3725 | -943.0 | -706.8 | |
| 0.00 | 0.95 | 0.00 | 0.50 | 19.79 | 57.72 | -9.37 | 28.34 | 0.3242 | 914.0 | 749.3 | |
| 0.00 | 1.98 | 0.00 | 1.04 | 20.23 | 57.44 | -9.66 | 28.37 | 0.3326 | 985.0 | 775.3 | |
| 0.00 | 4.14 | 0.00 | 2.17 | 19.95 | 57.39 | -9.70 | 28.92 | 0.3290 | 845.0 | 701.6 | |
| 0.00 | 0.95 | 0.00 | 0.50 | 19.39 | 57.04 | -10.05 | 30.69 | 0.3240 | 884.0 | 658.7 | |
| 0.00 | 1.46 | 0.00 | 0.78 | 20.95 | 55.13 | -11.97 | 32.51 | 0.3619 | 234.0 | 379.1 | |
| 0.00 | 0.52 | 0.00 | 0.27 | 21.04 | 54.89 | -12.20 | 32.86 | 0.3651 | 736.0 | 612.5 | |
| 0.00 | 1.21 | 0.00 | 0.65 | 22.31 | 53.89 | -13.20 | 32.90 | 0.3907 | 858.0 | 618.2 | |
| 0.00 | 1.21 | 0.00 | 0.65 | 21.43 | 53.94 | -13.15 | 34.16 | 0.3788 | 868.0 | 686.4 | |
| 0.00 | 1.12 | 0.00 | 0.60 | 21.65 | 53.89 | -13.20 | 33.92 | 0.3821 | 915.0 | 778.9 | |
| 0.00 | 1.46 | 0.00 | 0.78 | 21.37 | 53.75 | -13.34 | 34.64 | 0.3797 | 822.0 | 630.2 | |
| 0.00 | 2.84 | 0.00 | 1.53 | 22.18 | 53.61 | -13.48 | 33.64 | 0.3915 | 824.0 | 722.5 | |
| 0.00 | 0.43 | 0.00 | 0.23 | 21.99 | 53.63 | -13.47 | 33.89 | 0.3889 | 925.0 | 840.6 | |
| 0.00 | 0.86 | 0.00 | 0.46 | 22.34 | 53.46 | -13.63 | 33.68 | 0.3948 | 711.0 | 535.5 | |
| 0.00 | 1.03 | 0.00 | 0.55 | 18.33 | 51.14 | -15.96 | 45.02 | 0.3706 | 925.0 | 742.8 | |
| 0.00 | 1.29 | 0.00 | 0.69 | 18.86 | 50.07 | -17.02 | 45.72 | 0.3886 | 840.0 | 644.9 | |
| 0.00 | 0.86 | 0.00 | 0.46 | 19.04 | 49.89 | -17.21 | 45.66 | 0.3927 | 613.0 | 484.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
