group	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
11339	260.95	1529.06	174.29	1013.07	19.12	106.10	39.55	295.42	0.6677	-487.3	-292.8

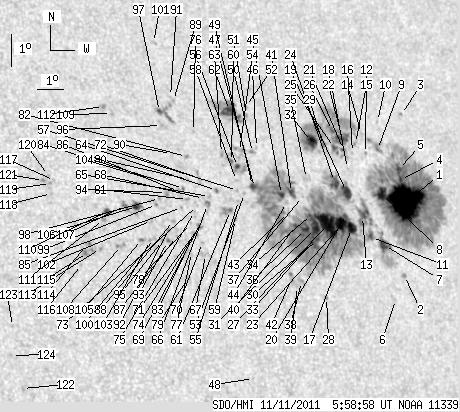

previous   or   next   observation for the same group / back to the solar disc SDO HMI 2011-11-11 05:58:58 UT See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!)

spot	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
1	80.13	463.87	55.39	321.31	18.91	108.94	42.39	293.92	0.7001	-1170.6	-221.2
2	0.00	2.33	0.00	1.58	16.65	108.20	41.65	291.01	0.6845	-690.0	-554.0
3	0.00	1.03	0.00	0.73	21.60	109.65	43.10	297.31	0.7174	677.0	572.8
4	1.46	-1.00	1.02	-1.00	19.59	108.90	42.36	294.88	0.7020	-629.7	999999
5	3.36	-1.00	2.33	-1.00	19.90	108.92	42.37	295.30	0.7033	-512.2	999999
6	0.00	0.69	0.00	0.46	15.94	107.65	41.10	290.16	0.6757	-664.0	-608.4
7	7.24	33.52	4.88	22.59	17.59	107.63	41.08	292.55	0.6806	-848.1	-459.9
8	6.29	-1.00	4.29	-1.00	19.16	107.96	41.41	294.64	0.6898	-1042.2	999999
9	1.12	9.99	0.77	6.89	20.55	108.24	41.69	296.45	0.6980	-391.5	53.8
10	0.00	1.21	0.00	0.84	21.42	108.54	41.99	297.52	0.7046	-536.0	-385.6
11	2.15	621.28	1.44	404.79	17.86	107.17	40.62	293.10	0.6760	-727.6	-549.7
12	0.00	1.21	0.00	0.82	20.45	107.70	41.15	296.53	0.6915	-189.0	-257.0
13	9.56	-11.00	6.41	-11.00	18.51	106.98	40.43	294.10	0.6761	-742.9	999999
14	0.00	0.95	0.00	0.65	21.07	107.74	41.19	297.38	0.6943	-392.0	-298.6
15	0.00	1.90	0.00	1.29	20.77	107.38	40.83	297.11	0.6892	-423.0	-377.6
16	0.00	0.86	0.00	0.58	20.50	107.17	40.62	296.82	0.6857	-501.0	-449.1
17	6.63	-11.00	4.41	-11.00	18.16	106.43	39.88	293.82	0.6683	-906.4	999999
18	0.00	0.78	0.00	0.52	20.01	106.80	40.26	296.29	0.6796	-587.0	-490.2
19	8.10	-11.00	5.41	-11.00	19.30	106.55	40.00	295.40	0.6739	-897.4	999999
20	1.12	-11.00	0.74	-11.00	18.60	106.35	39.80	294.48	0.6689	-544.2	999999
21	1.29	152.24	0.87	102.47	20.60	106.83	40.28	297.12	0.6822	-742.1	-245.7
22	11.55	-21.00	7.82	-21.00	20.91	106.88	40.34	297.52	0.6841	-749.3	999999
23	10.77	-11.00	7.12	-11.00	18.30	106.06	39.51	294.16	0.6644	-1086.8	999999
24	8.96	-11.00	5.97	-11.00	19.63	106.15	39.60	296.03	0.6706	-807.0	999999
25	2.76	-21.00	1.85	-21.00	20.68	106.47	39.93	297.37	0.6785	-769.3	999999
26	2.58	-21.00	1.74	-21.00	21.21	106.56	40.01	298.08	0.6817	-605.7	999999
27	25.93	-11.00	17.01	-11.00	18.32	105.50	38.95	294.42	0.6577	-1107.5	999999
28	0.00	1.12	0.00	0.72	16.10	104.90	38.36	291.35	0.6425	683.0	606.8
29	2.15	-21.00	1.44	-21.00	20.76	106.04	39.50	297.68	0.6739	-677.7	999999
30	1.21	-11.00	0.78	-11.00	17.87	104.98	38.43	293.98	0.6498	-915.4	999999
31	6.63	-11.00	4.32	-11.00	18.21	104.99	38.44	294.48	0.6512	-1123.5	999999
32	10.60	-21.00	7.04	-21.00	20.90	105.59	39.05	298.08	0.6694	-1093.3	999999
33	1.03	-11.00	0.67	-11.00	17.79	104.72	38.17	293.97	0.6463	-1222.5	999999
34	0.43	-11.00	0.28	-11.00	18.65	104.94	38.39	295.14	0.6524	-735.8	999999
35	0.00	3.88	0.00	2.54	19.76	105.05	38.50	296.71	0.6582	-245.0	-318.3
36	3.45	-11.00	2.23	-11.00	18.20	104.58	38.04	294.63	0.6462	-1147.0	999999
37	0.00	0.78	0.00	0.51	19.21	104.74	38.19	296.06	0.6522	-578.0	-450.8
38	0.00	3.96	0.00	2.53	16.62	104.04	37.49	292.48	0.6335	-450.0	-461.0
39	0.00	1.72	0.00	1.10	16.47	103.85	37.30	292.34	0.6306	-137.0	-118.5
40	1.98	-11.00	1.28	-11.00	18.33	104.22	37.67	294.99	0.6424	-955.0	999999
41	5.08	-11.00	3.30	-11.00	19.35	104.33	37.79	296.45	0.6480	-827.9	999999
42	0.00	4.82	0.00	3.07	16.72	103.67	37.13	292.80	0.6293	-460.0	-469.0
43	0.00	2.67	0.00	1.72	18.74	104.05	37.50	295.68	0.6420	-749.0	-644.8
44	0.00	1.72	0.00	1.11	19.05	104.05	37.50	296.13	0.6433	-822.0	-714.7
45	3.79	-11.00	2.44	-11.00	19.30	103.92	37.37	296.57	0.6429	-999.1	999999
46	0.00	0.86	0.00	0.56	20.79	103.34	36.79	299.04	0.6428	401.0	340.5
47	1.64	-11.00	1.04	-11.00	19.55	102.92	36.38	297.43	0.6320	-386.7	999999
48	0.00	0.86	0.00	0.53	13.74	101.63	35.08	288.89	0.5923	566.0	446.9
49	1.55	-11.00	0.99	-11.00	19.62	102.86	36.31	297.56	0.6316	325.4	999999
50	0.00	2.15	0.00	1.38	20.64	103.14	36.59	298.93	0.6397	577.0	443.1
51	0.00	1.55	0.00	1.00	21.79	103.24	36.69	300.55	0.6465	-726.0	-618.2
52	0.00	1.90	0.00	1.23	22.08	103.28	36.73	300.93	0.6485	-668.0	-519.0
53	0.00	1.12	0.00	0.71	19.38	102.49	35.94	297.40	0.6259	-793.0	-629.4
54	0.00	8.70	0.00	5.56	20.68	102.64	36.09	299.26	0.6340	361.0	437.8
55	0.00	1.12	0.00	0.71	19.17	102.20	35.65	297.23	0.6215	-760.0	-635.9
56	1.90	17.32	1.21	11.01	20.22	102.44	35.89	298.69	0.6293	661.5	303.8
57	0.00	1.21	0.00	0.76	19.48	102.24	35.69	297.68	0.6234	-635.0	-510.9
58	0.00	1.21	0.00	0.76	19.79	102.28	35.73	298.13	0.6254	211.0	152.6
59	0.00	1.46	0.00	0.92	18.59	101.94	35.40	296.48	0.6156	484.0	351.4
60	1.29	-56.00	0.82	-56.00	20.39	102.24	35.70	299.03	0.6278	757.3	999999
61	0.52	6.98	0.32	4.37	18.88	101.82	35.27	296.98	0.6154	-830.3	-316.6
62	12.75	37.39	8.20	24.02	21.97	102.61	36.06	301.16	0.6403	-954.7	-647.2
63	0.00	2.41	0.00	1.53	20.65	101.92	35.38	299.60	0.6254	684.0	559.9
64	0.43	1.64	0.27	1.02	19.51	101.44	34.89	298.16	0.6138	-503.4	-391.1
65	0.00	1.55	0.00	0.97	19.33	101.12	34.58	298.06	0.6091	356.0	273.6
66	0.00	3.53	0.00	2.20	19.09	100.99	34.44	297.76	0.6062	483.0	434.4
67	0.00	5.08	0.00	3.12	17.56	100.57	34.02	295.58	0.5936	617.0	459.6
68	0.00	1.64	0.00	1.02	19.28	100.88	34.33	298.11	0.6058	445.0	366.8
69	0.00	1.38	0.00	0.85	18.63	100.69	34.14	297.21	0.6003	422.0	348.2
70	0.00	0.95	0.00	0.58	17.93	100.53	33.99	296.19	0.5949	590.0	366.7
71	1.72	2.33	1.06	1.43	18.42	100.53	33.98	296.97	0.5973	622.2	495.4
72	0.00	5.00	0.00	3.11	19.90	100.88	34.33	299.07	0.6090	374.0	329.3
73	0.00	0.86	0.00	0.53	19.07	100.60	34.06	297.94	0.6014	506.0	398.9
74	0.00	3.19	0.00	1.96	18.21	100.30	33.75	296.77	0.5933	444.0	524.3
75	0.00	0.52	0.00	0.32	18.89	100.45	33.90	297.75	0.5985	574.0	508.5
76	0.00	0.78	0.00	0.49	21.36	101.03	34.48	301.19	0.6186	363.0	277.6
77	0.00	1.55	0.00	0.95	17.64	100.06	33.51	295.98	0.5875	563.0	520.3
78	0.00	0.95	0.00	0.58	18.53	100.21	33.67	297.31	0.5938	530.0	470.4
79	0.00	1.98	0.00	1.20	16.88	99.79	33.24	294.89	0.5805	640.0	608.7
80	0.00	1.38	0.00	0.85	19.88	100.46	33.91	299.29	0.6038	658.0	557.7
81	0.00	1.64	0.00	1.01	19.27	100.27	33.72	298.44	0.5983	750.0	632.9
82	0.00	1.98	0.00	1.23	20.59	100.56	34.01	300.32	0.6088	696.0	569.4
83	0.00	2.58	0.00	1.58	17.64	99.84	33.29	296.11	0.5847	697.0	545.8
84	0.00	1.21	0.00	0.74	19.61	100.20	33.65	299.02	0.5992	625.0	552.4
85	0.00	0.86	0.00	0.53	19.03	99.99	33.44	298.23	0.5935	720.0	632.3
86	0.00	2.07	0.00	1.27	19.52	99.99	33.44	299.01	0.5962	605.0	600.3
87	0.00	0.95	0.00	0.58	18.14	99.61	33.06	297.05	0.5842	707.0	635.6
88	0.00	1.98	0.00	1.21	18.64	99.60	33.05	297.84	0.5867	835.0	617.5
89	0.00	1.03	0.00	0.65	22.35	100.52	33.98	302.96	0.6183	468.0	353.8
90	0.00	0.86	0.00	0.53	20.71	100.01	33.46	300.82	0.6029	519.0	539.4
91	0.00	0.52	0.00	0.32	22.48	100.44	33.90	303.21	0.6182	341.0	293.5
92	0.00	1.29	0.00	0.79	18.37	99.35	32.81	297.55	0.5822	857.0	761.6
93	0.43	2.24	0.26	1.36	18.00	99.24	32.69	297.03	0.5789	526.8	699.8
94	0.00	2.58	0.00	1.58	19.51	99.53	32.99	299.26	0.5905	695.0	669.4
95	0.00	1.29	0.00	0.78	18.04	99.06	32.51	297.19	0.5768	763.0	624.7
96	0.00	1.29	0.00	0.80	21.59	99.86	33.31	302.25	0.6061	722.0	626.7
97	1.72	13.18	1.07	8.23	22.03	99.90	33.35	302.89	0.6091	816.4	523.4
98	0.00	1.21	0.00	0.74	19.33	99.23	32.68	299.17	0.5858	821.0	666.9
99	0.00	1.21	0.00	0.73	19.15	99.08	32.53	298.97	0.5829	815.0	647.9
100	0.00	1.38	0.00	0.83	18.11	98.78	32.23	297.48	0.5736	842.0	649.9
101	0.00	2.07	0.00	1.31	24.20	100.28	33.73	305.80	0.6268	632.0	477.4
102	0.00	2.15	0.00	1.30	18.66	98.79	32.24	298.37	0.5766	660.0	618.0
103	0.00	1.38	0.00	0.83	18.05	98.62	32.07	297.48	0.5713	834.0	681.0
104	0.00	1.38	0.00	0.84	19.96	98.96	32.41	300.33	0.5860	446.0	395.9
105	1.38	2.15	0.83	1.29	18.09	98.30	31.75	297.75	0.5674	736.5	615.1
106	5.08	7.50	3.07	4.52	19.11	98.33	31.78	299.39	0.5733	917.1	626.2
107	0.00	3.88	0.00	2.33	19.15	97.93	31.38	299.71	0.5686	1006.0	813.3
108	0.00	3.10	0.00	1.85	17.93	97.53	30.98	297.96	0.5567	755.0	706.4
109	0.00	1.12	0.00	0.68	22.02	98.07	31.52	304.12	0.5877	745.0	581.6
110	3.19	4.74	1.90	2.82	18.98	97.23	30.68	299.91	0.5589	882.5	722.2
111	0.00	2.07	0.00	1.23	18.74	97.04	30.49	299.65	0.5550	908.0	791.0
112	0.00	2.24	0.00	1.37	22.24	97.82	31.28	304.65	0.5863	812.0	715.5
113	0.00	1.46	0.00	0.86	17.86	96.76	30.21	298.35	0.5463	751.0	638.9
114	0.00	2.50	0.00	1.47	18.02	96.32	29.77	298.93	0.5416	929.0	830.9
115	0.00	5.86	0.00	3.44	17.75	96.27	29.72	298.50	0.5394	757.0	760.0
116	0.00	1.12	0.00	0.65	17.39	95.99	29.44	298.07	0.5337	731.0	489.4
117	0.00	1.12	0.00	0.66	19.99	95.51	28.96	302.83	0.5437	558.0	509.2
118	0.00	1.21	0.00	0.71	19.60	95.32	28.78	302.32	0.5388	718.0	552.3
119	0.00	0.86	0.00	0.51	19.90	95.35	28.80	302.82	0.5411	837.0	720.8
120	0.00	1.12	0.00	0.66	20.15	95.33	28.78	303.24	0.5425	679.0	561.9
121	0.00	1.81	0.00	1.06	20.00	95.12	28.57	303.16	0.5389	999.0	769.7
122	0.00	1.81	0.00	1.02	13.68	93.37	26.82	292.97	0.4781	701.0	596.5
123	0.00	1.38	0.00	0.78	15.56	93.27	26.73	296.71	0.4870	746.0	511.1
124	0.00	0.60	0.00	0.34	14.69	93.12	26.57	295.13	0.4799	703.0	616.1

	Proj. U	-  Projected umbra area in millionths of solar disc, negative values indicate
	that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
	Proj. WS	-  Projected whole spot area in millionths of solar disc, negative values indicate
	that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7.
	Corr. U	-  Corrected umbra area in millionths of solar hemisphere, for negative values see above
	Corr. WS	-  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
	B	-  Heliographic latitude B; positive: North, negative: South
	L	-  Heliographic longitude L
	LCM	-  Longitudinal distance from the Sun's central meridian
	Pos. angle	-  Position angle
	r	-  Distance from the centre of Sun's disc in terms of Sun's radius
	MU	-  Mean magnetic field within the umbra contour averaged the pixel values with sign.
	MP	-  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
