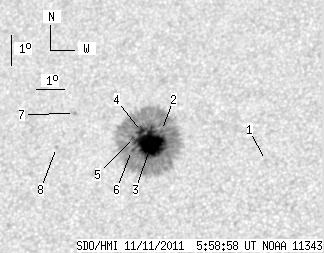

SDO HMI 2011-11-11 05:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 47.22 | 330.50 | 27.64 | 193.69 | 27.83 | 44.57 | -21.98 | 38.32 | 0.5357 | -1206.2 | -402.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-11 05:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.12 | 0.00 | 0.64 | 27.32 | 48.79 | -17.75 | 33.51 | 0.4927 | -838.0 | -620.3 | |
| 0.78 | 326.71 | 0.45 | 191.44 | 28.23 | 44.91 | -21.64 | 37.41 | 0.5369 | -760.7 | -399.6 | |
| 41.70 | -2.00 | 24.41 | -2.00 | 27.80 | 44.64 | -21.91 | 38.29 | 0.5347 | -1356.7 | 999999 | |
| 2.93 | -2.00 | 1.72 | -2.00 | 28.18 | 44.20 | -22.35 | 38.31 | 0.5428 | -791.8 | 999999 | |
| 1.29 | -2.00 | 0.76 | -2.00 | 27.98 | 43.95 | -22.60 | 38.86 | 0.5430 | -607.7 | 999999 | |
| 0.52 | -2.00 | 0.30 | -2.00 | 27.56 | 43.97 | -22.58 | 39.40 | 0.5384 | -654.0 | 999999 | |
| 0.00 | 1.21 | 0.00 | 0.73 | 28.72 | 41.60 | -24.95 | 40.47 | 0.5722 | -891.0 | -726.8 | |
| 0.00 | 1.46 | 0.00 | 0.88 | 27.59 | 41.21 | -25.34 | 42.36 | 0.5651 | -748.0 | -583.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
