SDO HMI 2011-11-11 06:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 52.89 | 346.31 | 26.73 | 175.39 | 9.66 | 56.12 | -9.89 | 56.28 | 0.2037 | -666.2 | -370.7 | |
|
previous
or next observation for the same group /

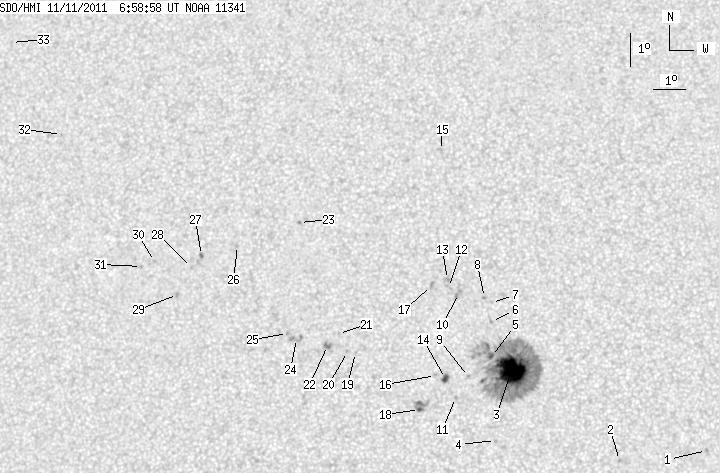

back to the solar disc SDO HMI 2011-11-11 06:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.64 | 0.00 | 0.81 | 7.07 | 62.87 | -3.14 | 39.63 | 0.0855 | -915.0 | -755.9 | |
| 0.00 | 1.29 | 0.00 | 0.64 | 6.76 | 60.26 | -5.74 | 58.71 | 0.1168 | -875.0 | -654.5 | |
| 44.71 | 282.76 | 22.55 | 142.66 | 9.42 | 56.95 | -9.06 | 55.43 | 0.1894 | -1466.9 | -468.0 | |
| 0.00 | 1.21 | 0.00 | 0.61 | 7.33 | 56.51 | -9.49 | 66.61 | 0.1790 | -724.0 | -584.8 | |
| 1.98 | -3.00 | 1.00 | -3.00 | 9.83 | 56.32 | -9.68 | 55.40 | 0.2021 | -897.4 | 999999 | |
| 0.00 | 1.29 | 0.00 | 0.66 | 10.88 | 56.29 | -9.71 | 51.37 | 0.2130 | -919.0 | -689.3 | |
| 0.00 | 0.86 | 0.00 | 0.44 | 11.45 | 56.27 | -9.73 | 49.35 | 0.2193 | -801.0 | -585.7 | |
| 0.00 | 1.46 | 0.00 | 0.74 | 11.59 | 56.05 | -9.95 | 49.45 | 0.2238 | -1000.0 | -771.8 | |
| 0.00 | 1.46 | 0.00 | 0.74 | 9.23 | 55.64 | -10.36 | 59.67 | 0.2067 | -464.0 | -317.9 | |
| 0.00 | 2.84 | 0.00 | 1.45 | 11.71 | 55.25 | -10.76 | 51.21 | 0.2355 | -669.0 | -662.4 | |
| 0.00 | 1.29 | 0.00 | 0.65 | 8.60 | 55.26 | -10.74 | 63.22 | 0.2074 | 864.0 | 664.0 | |
| 0.00 | 1.81 | 0.00 | 0.92 | 11.88 | 54.93 | -11.07 | 51.40 | 0.2415 | 388.0 | 210.8 | |
| 0.00 | 1.46 | 0.00 | 0.75 | 12.12 | 54.89 | -11.11 | 50.72 | 0.2446 | 915.0 | 744.9 | |
| 3.53 | 3.88 | 1.79 | 1.97 | 9.16 | 54.94 | -11.06 | 61.50 | 0.2166 | -953.9 | -931.8 | |
| 0.00 | 2.24 | 0.00 | 1.16 | 16.02 | 54.48 | -11.53 | 41.00 | 0.2941 | 675.0 | 613.3 | |
| 0.00 | 1.38 | 0.00 | 0.70 | 9.25 | 54.63 | -11.37 | 61.79 | 0.2219 | -740.0 | -629.9 | |
| 0.00 | 2.41 | 0.00 | 1.23 | 11.94 | 54.40 | -11.60 | 52.49 | 0.2491 | 877.0 | 637.2 | |
| 1.12 | 11.54 | 0.57 | 5.86 | 8.23 | 54.17 | -11.83 | 66.84 | 0.2217 | 947.2 | 800.6 | |
| 0.00 | 0.86 | 0.00 | 0.44 | 9.90 | 52.14 | -13.87 | 63.77 | 0.2644 | -973.0 | -680.7 | |
| 0.00 | 1.12 | 0.00 | 0.58 | 9.93 | 51.89 | -14.12 | 64.06 | 0.2684 | -704.0 | -667.4 | |
| 0.00 | 1.12 | 0.00 | 0.58 | 10.46 | 51.58 | -14.42 | 62.74 | 0.2767 | -757.0 | -544.6 | |
| 0.00 | 3.45 | 0.00 | 1.78 | 10.10 | 51.26 | -14.75 | 64.42 | 0.2791 | -1073.0 | -953.2 | |
| 0.00 | 1.29 | 0.00 | 0.68 | 13.78 | 50.16 | -15.84 | 55.28 | 0.3240 | 923.0 | 715.5 | |
| 0.00 | 6.29 | 0.00 | 3.26 | 10.29 | 50.28 | -15.72 | 65.13 | 0.2952 | -517.0 | -703.6 | |
| 0.00 | 0.95 | 0.00 | 0.49 | 10.44 | 49.99 | -16.01 | 65.06 | 0.3006 | -689.0 | -584.8 | |
| 0.00 | 1.12 | 0.00 | 0.59 | 13.05 | 48.24 | -17.76 | 59.98 | 0.3448 | 691.0 | 569.8 | |
| 1.55 | 1.72 | 0.82 | 0.91 | 12.73 | 47.11 | -18.90 | 62.19 | 0.3587 | 807.8 | 948.5 | |
| 0.00 | 1.03 | 0.00 | 0.55 | 12.36 | 46.81 | -19.19 | 63.46 | 0.3605 | 736.0 | 579.8 | |
| 0.00 | 2.15 | 0.00 | 1.14 | 11.55 | 46.42 | -19.58 | 65.97 | 0.3611 | 885.0 | 733.6 | |
| 0.00 | 1.38 | 0.00 | 0.74 | 12.52 | 45.60 | -20.40 | 64.34 | 0.3791 | 736.0 | 526.6 | |
| 0.00 | 1.29 | 0.00 | 0.69 | 12.36 | 45.20 | -20.81 | 65.12 | 0.3841 | 812.0 | 640.4 | |
| 0.00 | 0.86 | 0.00 | 0.48 | 16.29 | 42.13 | -23.87 | 59.45 | 0.4530 | 629.0 | 553.1 | |
| 0.00 | 0.86 | 0.00 | 0.49 | 19.07 | 39.99 | -26.01 | 56.24 | 0.5005 | 707.0 | 602.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
