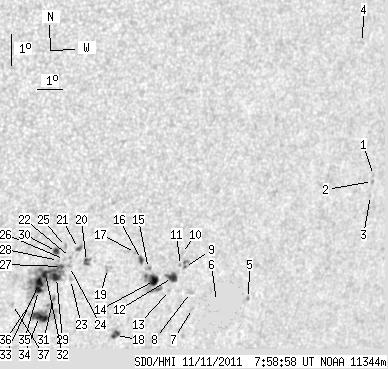

SDO HMI 2011-11-11 07:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 67.20 | 315.74 | 43.59 | 210.02 | -17.75 | 101.90 | 36.44 | 238.23 | 0.6665 | -161.4 | 87.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-11 07:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.12 | 0.00 | 0.82 | -14.50 | 110.16 | 44.70 | 246.96 | 0.7424 | -414.0 | -368.5 | |
| 0.00 | 1.38 | 0.00 | 1.02 | -14.68 | 110.16 | 44.71 | 246.72 | 0.7431 | -591.0 | -441.0 | |
| 0.00 | 0.69 | 0.00 | 0.51 | -15.12 | 110.19 | 44.73 | 246.18 | 0.7451 | -481.0 | -448.1 | |
| 0.00 | 1.46 | 0.00 | 1.03 | -10.35 | 108.80 | 43.34 | 251.91 | 0.7127 | -278.0 | -278.5 | |
| 0.00 | 1.29 | 0.00 | 0.91 | -18.19 | 105.88 | 40.43 | 240.16 | 0.7126 | -123.0 | -35.0 | |
| 8.70 | 137.15 | 6.01 | 95.12 | -18.23 | 104.59 | 39.13 | 239.37 | 0.6990 | 1060.0 | 423.5 | |
| 0.00 | 1.55 | 0.00 | 1.06 | -18.42 | 103.68 | 38.22 | 238.59 | 0.6902 | 477.0 | 419.8 | |
| 0.00 | 2.93 | 0.00 | 1.99 | -17.90 | 103.46 | 38.01 | 239.13 | 0.6850 | 621.0 | 471.6 | |
| 0.69 | 4.48 | 0.46 | 3.00 | -17.10 | 103.03 | 37.57 | 239.94 | 0.6757 | -291.9 | -554.9 | |
| 0.00 | 1.38 | 0.00 | 0.92 | -16.65 | 102.81 | 37.35 | 240.42 | 0.6707 | -123.0 | -264.1 | |
| 0.00 | 0.95 | 0.00 | 0.63 | -17.03 | 102.85 | 37.40 | 239.93 | 0.6734 | -523.0 | -311.8 | |
| 6.89 | 8.27 | 4.60 | 5.52 | -17.40 | 102.63 | 37.17 | 239.30 | 0.6729 | 839.6 | 613.9 | |
| 0.00 | 1.03 | 0.00 | 0.69 | -17.81 | 102.61 | 37.16 | 238.73 | 0.6751 | 670.0 | 550.1 | |
| 6.98 | 20.25 | 4.62 | 13.40 | -17.47 | 101.94 | 36.49 | 238.77 | 0.6657 | 927.1 | 630.0 | |
| 0.00 | 2.07 | 0.00 | 1.36 | -17.08 | 101.62 | 36.17 | 239.09 | 0.6598 | 854.0 | 697.8 | |
| 2.76 | 3.02 | 1.80 | 1.97 | -16.78 | 101.29 | 35.83 | 239.28 | 0.6543 | 816.2 | 647.2 | |
| 0.00 | 0.95 | 0.00 | 0.62 | -16.55 | 101.01 | 35.55 | 239.41 | 0.6497 | 859.0 | 719.7 | |
| 3.79 | 4.82 | 2.50 | 3.19 | -19.18 | 100.85 | 35.39 | 235.75 | 0.6641 | -731.3 | -631.2 | |
| 0.00 | 3.45 | 0.00 | 2.22 | -17.02 | 100.05 | 34.59 | 238.11 | 0.6416 | -378.0 | -314.2 | |
| 3.79 | 4.91 | 2.41 | 3.13 | -16.77 | 99.20 | 33.75 | 237.87 | 0.6304 | -472.3 | -315.8 | |
| 1.90 | 3.19 | 1.20 | 2.01 | -16.35 | 98.82 | 33.37 | 238.19 | 0.6233 | -639.5 | -616.2 | |
| 0.00 | 1.12 | 0.00 | 0.71 | -16.63 | 98.58 | 33.12 | 237.62 | 0.6223 | -707.0 | -581.3 | |
| 0.00 | 1.81 | 0.00 | 1.15 | -17.32 | 98.72 | 33.26 | 236.74 | 0.6285 | 158.0 | 27.1 | |
| 0.00 | 1.55 | 0.00 | 0.98 | -16.91 | 98.60 | 33.14 | 237.24 | 0.6243 | -506.0 | -344.9 | |
| 0.00 | 2.15 | 0.00 | 1.35 | -16.27 | 98.33 | 32.87 | 237.94 | 0.6170 | -769.0 | -644.4 | |
| 0.00 | 1.55 | 0.00 | 0.98 | -16.68 | 98.37 | 32.91 | 237.39 | 0.6202 | -752.0 | -612.9 | |
| 0.60 | 67.80 | 0.38 | 42.57 | -16.90 | 98.30 | 32.84 | 237.03 | 0.6208 | -749.4 | -660.2 | |
| 0.00 | 0.78 | 0.00 | 0.49 | -16.71 | 98.15 | 32.70 | 237.19 | 0.6178 | -677.0 | -593.6 | |
| 4.91 | -27.00 | 3.10 | -27.00 | -17.24 | 98.18 | 32.73 | 236.45 | 0.6218 | -743.8 | 999999 | |
| 3.10 | 3.70 | 1.94 | 2.32 | -16.42 | 98.02 | 32.57 | 237.51 | 0.6144 | -880.8 | -723.7 | |
| 0.95 | 1.72 | 0.60 | 1.09 | -17.91 | 98.21 | 32.75 | 235.54 | 0.6266 | -391.5 | -419.7 | |
| 2.93 | -27.00 | 1.84 | -27.00 | -17.10 | 97.75 | 32.29 | 236.32 | 0.6159 | -1152.1 | 999999 | |
| 4.39 | -27.00 | 2.76 | -27.00 | -17.38 | 97.58 | 32.13 | 235.80 | 0.6159 | -1201.1 | 999999 | |
| 12.06 | 24.55 | 7.64 | 15.59 | -18.47 | 97.81 | 32.35 | 234.46 | 0.6260 | -781.7 | -232.1 | |
| 2.76 | -27.00 | 1.73 | -27.00 | -17.64 | 97.60 | 32.14 | 235.45 | 0.6178 | -942.2 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.65 | -18.07 | 97.35 | 31.90 | 234.65 | 0.6182 | -779.0 | -699.5 | |
| 0.00 | 1.64 | 0.00 | 1.02 | -18.05 | 96.73 | 31.27 | 234.17 | 0.6110 | -787.0 | -589.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
