SDO HMI 2011-11-11 08:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 71.57 | 366.96 | 61.97 | 320.87 | -15.16 | 117.18 | 52.27 | 248.27 | 0.8174 | 648.3 | 249.2 | |
|
previous
or next observation for the same group /

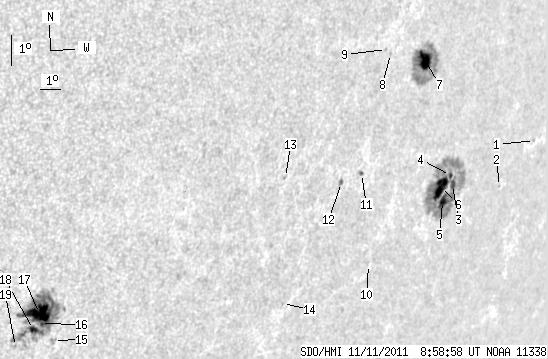

back to the solar disc SDO HMI 2011-11-11 08:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.03 | 0.00 | 1.23 | -13.89 | 128.47 | 63.56 | 253.07 | 0.9103 | 381.0 | 323.7 | |
| 0.00 | 0.69 | 0.00 | 0.78 | -15.22 | 126.78 | 61.87 | 251.28 | 0.9003 | -307.0 | -277.9 | |
| 3.27 | 144.20 | 3.35 | 145.74 | -15.00 | 123.73 | 58.82 | 250.83 | 0.8769 | 224.5 | 206.0 | |
| 1.72 | -3.00 | 1.75 | -3.00 | -14.71 | 123.48 | 58.57 | 251.10 | 0.8744 | 456.6 | 999999 | |
| 7.06 | -3.00 | 7.18 | -3.00 | -15.51 | 123.36 | 58.45 | 250.17 | 0.8749 | 481.3 | 999999 | |
| 15.59 | -3.00 | 15.64 | -3.00 | -15.06 | 123.04 | 58.13 | 250.60 | 0.8715 | 823.0 | 999999 | |
| 12.75 | 76.49 | 11.70 | 70.32 | -11.03 | 120.75 | 55.84 | 254.66 | 0.8443 | 834.5 | 221.8 | |
| 0.00 | 0.95 | 0.00 | 0.83 | -10.73 | 118.81 | 53.90 | 254.57 | 0.8258 | 596.0 | 516.5 | |
| 0.00 | 0.78 | 0.00 | 0.67 | -10.59 | 118.57 | 53.66 | 254.67 | 0.8232 | 579.0 | 440.2 | |
| 0.00 | 0.52 | 0.00 | 0.48 | -17.32 | 119.97 | 55.06 | 247.22 | 0.8509 | 433.0 | 396.2 | |
| 1.46 | 1.72 | 1.29 | 1.52 | -14.40 | 118.44 | 53.53 | 250.13 | 0.8303 | -389.5 | -468.7 | |
| 1.55 | 3.10 | 1.34 | 2.68 | -14.63 | 117.49 | 52.58 | 249.58 | 0.8222 | -531.4 | -409.0 | |
| 0.00 | 1.64 | 0.00 | 1.33 | -14.35 | 114.64 | 49.73 | 249.02 | 0.7940 | -475.0 | -432.4 | |
| 0.00 | 0.60 | 0.00 | 0.52 | -18.36 | 115.93 | 51.02 | 244.69 | 0.8183 | -49.0 | -105.6 | |
| 0.00 | 3.62 | 0.00 | 2.58 | -19.10 | 105.81 | 40.90 | 239.26 | 0.7221 | -212.0 | -146.2 | |
| 1.29 | 130.59 | 0.91 | 91.47 | -18.53 | 105.10 | 40.19 | 239.60 | 0.7118 | 633.3 | 388.8 | |
| 22.31 | -16.00 | 15.61 | -16.00 | -18.21 | 104.97 | 40.06 | 239.94 | 0.7087 | 1033.1 | 999999 | |
| 4.57 | -16.00 | 3.20 | -16.00 | -18.71 | 104.87 | 39.96 | 239.23 | 0.7103 | 656.4 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.72 | -19.23 | 104.28 | 39.37 | 238.23 | 0.7068 | -170.0 | -141.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
