SDO HMI 2011-11-11 08:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 54.70 | 317.06 | 27.53 | 159.90 | 9.60 | 56.32 | -8.59 | 52.70 | 0.1852 | -694.7 | -386.5 | |
|
previous
or next observation for the same group /

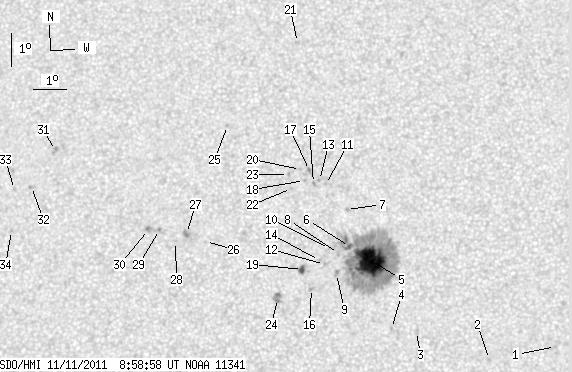

back to the solar disc SDO HMI 2011-11-11 08:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.29 | 0.00 | 0.64 | 6.91 | 62.58 | -2.33 | 32.64 | 0.0751 | -963.0 | -656.1 | |
| 0.00 | 1.38 | 0.00 | 0.69 | 6.52 | 60.61 | -4.30 | 52.96 | 0.0938 | -855.0 | -588.6 | |
| 0.00 | 2.67 | 0.00 | 1.33 | 7.34 | 58.41 | -6.50 | 57.80 | 0.1333 | -721.0 | -559.1 | |
| 0.00 | 1.46 | 0.00 | 0.73 | 7.42 | 57.66 | -7.26 | 60.01 | 0.1453 | -994.0 | -668.1 | |
| 49.19 | 256.87 | 24.74 | 129.21 | 9.44 | 56.98 | -7.93 | 51.70 | 0.1742 | -1415.8 | -481.2 | |
| 1.98 | -5.00 | 1.00 | -5.00 | 9.86 | 56.33 | -8.58 | 52.03 | 0.1873 | -866.7 | 999999 | |
| 0.00 | 1.46 | 0.00 | 0.74 | 10.96 | 56.21 | -8.70 | 47.97 | 0.2009 | -957.0 | -740.4 | |
| 0.00 | 1.90 | 0.00 | 0.96 | 9.64 | 56.00 | -8.91 | 53.96 | 0.1897 | -278.0 | -255.9 | |
| 0.00 | 2.84 | 0.00 | 1.43 | 9.05 | 55.96 | -8.95 | 56.76 | 0.1846 | -833.0 | -714.5 | |
| 0.00 | 1.03 | 0.00 | 0.52 | 9.79 | 55.72 | -9.19 | 54.15 | 0.1950 | -504.0 | -315.6 | |
| 0.00 | 1.03 | 0.00 | 0.52 | 11.70 | 55.54 | -9.37 | 47.35 | 0.2177 | -831.0 | -674.5 | |
| 0.00 | 1.38 | 0.00 | 0.70 | 9.31 | 55.58 | -9.33 | 56.61 | 0.1924 | -749.0 | -524.2 | |
| 0.00 | 1.21 | 0.00 | 0.61 | 11.82 | 55.35 | -9.56 | 47.50 | 0.2214 | -874.0 | -659.7 | |
| 0.00 | 1.29 | 0.00 | 0.65 | 9.43 | 55.43 | -9.48 | 56.52 | 0.1957 | -653.0 | -454.1 | |
| 0.00 | 1.29 | 0.00 | 0.66 | 11.73 | 55.17 | -9.74 | 48.34 | 0.2227 | -691.0 | -621.4 | |
| 0.00 | 1.46 | 0.00 | 0.74 | 8.59 | 55.21 | -9.70 | 60.84 | 0.1917 | 823.0 | 687.4 | |
| 0.00 | 2.93 | 0.00 | 1.49 | 12.12 | 55.03 | -9.88 | 47.42 | 0.2288 | 910.0 | 503.8 | |
| 0.00 | 0.78 | 0.00 | 0.39 | 11.82 | 54.89 | -10.02 | 48.83 | 0.2273 | 890.0 | 678.6 | |
| 3.53 | 4.22 | 1.79 | 2.13 | 9.16 | 54.92 | -9.99 | 59.03 | 0.2007 | -853.3 | -758.9 | |
| 0.00 | 1.38 | 0.00 | 0.70 | 12.15 | 54.76 | -10.16 | 48.11 | 0.2326 | 909.0 | 600.9 | |
| 0.00 | 1.72 | 0.00 | 0.89 | 15.98 | 54.49 | -10.42 | 38.28 | 0.2820 | 839.0 | 600.7 | |
| 0.00 | 0.86 | 0.00 | 0.44 | 11.57 | 54.50 | -10.41 | 50.73 | 0.2297 | 687.0 | 550.4 | |
| 0.00 | 1.03 | 0.00 | 0.53 | 11.99 | 54.39 | -10.52 | 49.59 | 0.2356 | 825.0 | 574.0 | |
| 0.00 | 6.12 | 0.00 | 3.09 | 8.28 | 54.18 | -10.73 | 64.52 | 0.2051 | 1024.0 | 888.1 | |
| 0.00 | 1.29 | 0.00 | 0.67 | 13.45 | 52.43 | -12.48 | 49.83 | 0.2763 | 705.0 | 515.5 | |
| 0.00 | 0.86 | 0.00 | 0.44 | 9.96 | 51.91 | -13.00 | 62.10 | 0.2519 | -834.0 | -628.9 | |
| 0.00 | 3.70 | 0.00 | 1.90 | 10.19 | 51.31 | -13.60 | 62.30 | 0.2625 | -1129.0 | -926.4 | |
| 0.00 | 1.12 | 0.00 | 0.58 | 9.95 | 50.98 | -13.93 | 63.67 | 0.2657 | -583.0 | -438.9 | |
| 0.00 | 1.46 | 0.00 | 0.75 | 10.30 | 50.47 | -14.44 | 63.28 | 0.2760 | -946.0 | -796.2 | |
| 0.00 | 3.79 | 0.00 | 1.96 | 10.29 | 50.13 | -14.79 | 63.80 | 0.2811 | -882.0 | -731.3 | |
| 0.00 | 3.10 | 0.00 | 1.63 | 12.61 | 47.05 | -17.86 | 61.21 | 0.3430 | 938.0 | 842.3 | |
| 0.00 | 2.07 | 0.00 | 1.09 | 11.52 | 46.36 | -18.55 | 64.93 | 0.3457 | 790.0 | 776.1 | |
| 0.00 | 1.21 | 0.00 | 0.64 | 11.42 | 45.82 | -19.09 | 65.77 | 0.3530 | 867.0 | 659.4 | |
| 0.00 | 0.86 | 0.00 | 0.45 | 10.19 | 45.81 | -19.10 | 69.09 | 0.3463 | 831.0 | 701.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
