SDO HMI 2011-11-11 08:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 67.45 | 183.68 | 43.74 | 119.36 | -17.46 | 99.88 | 34.96 | 237.67 | 0.6487 | -244.9 | -252.6 | |
|
previous
or next observation for the same group /

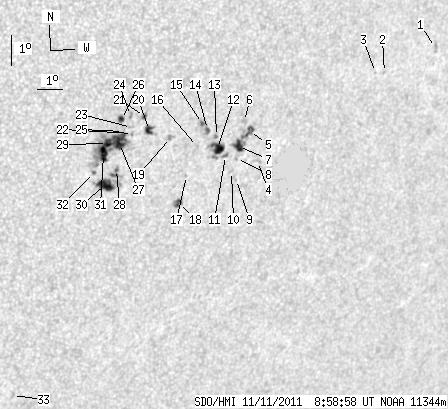

back to the solar disc SDO HMI 2011-11-11 08:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.45 | 0.00 | 2.57 | -14.61 | 110.16 | 45.25 | 247.04 | 0.7487 | -638.0 | -438.6 | |
| 0.00 | 1.55 | 0.00 | 1.12 | -15.31 | 108.15 | 43.24 | 245.28 | 0.7297 | -516.0 | -432.7 | |
| 0.00 | 0.86 | 0.00 | 0.62 | -15.29 | 107.76 | 42.85 | 245.13 | 0.7254 | -573.0 | -461.8 | |
| 0.00 | 2.24 | 0.00 | 1.53 | -17.93 | 103.60 | 38.69 | 239.51 | 0.6925 | 768.0 | 505.8 | |
| 4.74 | 21.28 | 3.20 | 14.34 | -16.96 | 103.04 | 38.13 | 240.46 | 0.6811 | -539.7 | 220.6 | |
| 0.00 | 2.76 | 0.00 | 1.85 | -16.64 | 102.76 | 37.85 | 240.74 | 0.6763 | -84.0 | -203.8 | |
| 6.98 | -5.00 | 4.70 | -5.00 | -17.42 | 102.72 | 37.80 | 239.65 | 0.6800 | 855.6 | 999999 | |
| 0.00 | 1.21 | 0.00 | 0.81 | -17.80 | 102.73 | 37.82 | 239.16 | 0.6823 | 498.0 | 455.0 | |
| 0.00 | 0.52 | 0.00 | 0.35 | -18.48 | 102.90 | 37.99 | 238.38 | 0.6880 | 606.0 | 549.3 | |
| 0.00 | 1.38 | 0.00 | 0.93 | -18.21 | 102.64 | 37.73 | 238.56 | 0.6836 | 412.0 | 362.5 | |
| 0.00 | 2.84 | 0.00 | 1.91 | -17.69 | 102.27 | 37.36 | 239.02 | 0.6766 | 659.0 | 519.6 | |
| 9.39 | 16.54 | 6.26 | 11.01 | -17.46 | 101.90 | 36.99 | 239.11 | 0.6712 | 901.3 | 651.9 | |
| 0.00 | 1.38 | 0.00 | 0.91 | -17.07 | 101.77 | 36.86 | 239.54 | 0.6675 | 868.0 | 797.6 | |
| 0.69 | 2.41 | 0.45 | 1.59 | -16.84 | 101.37 | 36.46 | 239.61 | 0.6617 | 918.2 | 790.4 | |
| 0.60 | 2.58 | 0.40 | 1.70 | -16.64 | 101.13 | 36.22 | 239.73 | 0.6578 | 803.6 | 667.6 | |
| 0.00 | 1.12 | 0.00 | 0.74 | -17.36 | 101.10 | 36.19 | 238.72 | 0.6617 | 688.0 | 517.8 | |
| 0.00 | 1.03 | 0.00 | 0.68 | -18.28 | 100.89 | 35.98 | 237.35 | 0.6649 | -591.0 | -440.2 | |
| 4.13 | 5.86 | 2.75 | 3.89 | -19.17 | 100.80 | 35.89 | 236.11 | 0.6694 | -731.2 | -552.2 | |
| 0.00 | 3.10 | 0.00 | 2.01 | -17.04 | 99.99 | 35.08 | 238.43 | 0.6473 | -571.0 | -378.4 | |
| 4.65 | 6.12 | 2.98 | 3.92 | -16.79 | 99.15 | 34.24 | 238.19 | 0.6361 | -541.2 | -302.5 | |
| 1.81 | 2.93 | 1.15 | 1.86 | -16.34 | 98.87 | 33.96 | 238.63 | 0.6301 | -611.4 | -463.0 | |
| 0.00 | 1.64 | 0.00 | 1.04 | -16.87 | 98.52 | 33.61 | 237.65 | 0.6294 | -454.0 | -352.1 | |
| 0.00 | 1.90 | 0.00 | 1.20 | -16.67 | 98.45 | 33.54 | 237.86 | 0.6273 | -672.0 | -550.2 | |
| 0.00 | 2.33 | 0.00 | 1.47 | -16.29 | 98.34 | 33.43 | 238.32 | 0.6236 | -691.0 | -640.0 | |
| 0.00 | 1.64 | 0.00 | 1.04 | -16.79 | 98.17 | 33.26 | 237.50 | 0.6249 | -616.0 | -574.1 | |
| 2.76 | 3.62 | 1.74 | 2.28 | -16.41 | 98.03 | 33.11 | 237.93 | 0.6207 | -892.9 | -778.9 | |
| 5.08 | 59.52 | 3.22 | 37.60 | -17.17 | 98.10 | 33.19 | 236.92 | 0.6265 | -869.3 | -678.1 | |
| 1.38 | 7.58 | 0.88 | 4.84 | -17.99 | 98.16 | 33.25 | 235.81 | 0.6327 | -545.4 | -331.7 | |
| 4.65 | -27.00 | 2.93 | -27.00 | -17.15 | 97.65 | 32.74 | 236.60 | 0.6213 | -1169.7 | 999999 | |
| 12.58 | 21.02 | 8.02 | 13.42 | -18.46 | 97.85 | 32.94 | 234.94 | 0.6325 | -787.4 | -258.0 | |
| 7.67 | -27.00 | 4.84 | -27.00 | -17.47 | 97.57 | 32.66 | 236.10 | 0.6225 | -1071.0 | 999999 | |
| 0.34 | 1.29 | 0.22 | 0.82 | -18.06 | 97.32 | 32.41 | 235.08 | 0.6238 | -743.0 | -632.6 | |
| 0.00 | 1.98 | 0.00 | 1.31 | -25.31 | 96.06 | 31.15 | 224.77 | 0.6664 | -347.0 | -369.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
