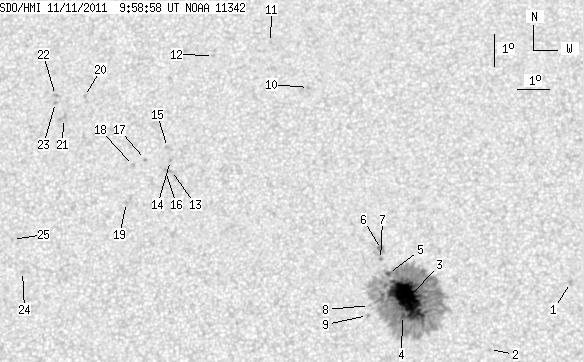

SDO HMI 2011-11-11 09:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 65.71 | 408.46 | 33.37 | 207.79 | 16.30 | 64.47 | 0.10 | 358.84 | 0.2282 | -752.1 | -417.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-11 09:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.33 | 0.00 | 1.19 | 16.47 | 70.04 | 5.67 | 337.44 | 0.2482 | -893.0 | -720.0 | |
| 0.00 | 1.21 | 0.00 | 0.61 | 14.45 | 67.49 | 3.13 | 344.72 | 0.2015 | -783.0 | -566.4 | |
| 62.27 | 374.50 | 31.62 | 190.13 | 16.00 | 64.98 | 0.62 | 357.29 | 0.2211 | -1379.9 | -476.1 | |
| 1.72 | -3.00 | 0.87 | -3.00 | 15.48 | 64.83 | 0.46 | 357.88 | 0.2122 | -1133.2 | 999999 | |
| 1.72 | -3.00 | 0.88 | -3.00 | 16.76 | 64.40 | 0.03 | 359.86 | 0.2339 | -770.8 | 999999 | |
| 0.00 | 4.48 | 0.00 | 2.29 | 17.50 | 64.18 | -0.18 | 0.72 | 0.2464 | -894.0 | -742.9 | |
| 0.00 | 1.38 | 0.00 | 0.70 | 17.19 | 64.15 | -0.22 | 0.86 | 0.2412 | -959.0 | -811.4 | |
| 0.00 | 0.86 | 0.00 | 0.44 | 15.79 | 63.81 | -0.55 | 2.46 | 0.2174 | -362.0 | -303.6 | |
| 0.00 | 0.95 | 0.00 | 0.48 | 15.48 | 63.75 | -0.61 | 2.80 | 0.2123 | -718.0 | -587.7 | |
| 0.00 | 1.29 | 0.00 | 0.68 | 22.51 | 61.83 | -2.54 | 7.08 | 0.3332 | -833.0 | -645.3 | |
| 0.00 | 1.03 | 0.00 | 0.55 | 23.93 | 60.57 | -3.80 | 9.75 | 0.3592 | -689.0 | -535.0 | |
| 0.00 | 1.29 | 0.00 | 0.69 | 23.51 | 58.73 | -5.64 | 14.60 | 0.3589 | -850.0 | -647.6 | |
| 0.00 | 1.64 | 0.00 | 0.85 | 19.91 | 57.53 | -6.83 | 21.34 | 0.3086 | 658.0 | 741.4 | |
| 0.00 | 0.60 | 0.00 | 0.31 | 20.21 | 57.49 | -6.88 | 21.09 | 0.3137 | 940.0 | 789.9 | |
| 0.00 | 1.38 | 0.00 | 0.72 | 20.62 | 57.37 | -6.99 | 20.91 | 0.3205 | 791.0 | 613.2 | |
| 0.00 | 1.38 | 0.00 | 0.72 | 19.90 | 57.34 | -7.02 | 21.88 | 0.3098 | 904.0 | 774.2 | |
| 0.00 | 1.12 | 0.00 | 0.58 | 20.24 | 56.69 | -7.67 | 23.23 | 0.3190 | 902.0 | 744.5 | |
| 0.00 | 1.29 | 0.00 | 0.67 | 20.05 | 56.32 | -8.05 | 24.48 | 0.3187 | 812.0 | 582.7 | |
| 0.00 | 1.21 | 0.00 | 0.63 | 18.91 | 56.15 | -8.21 | 26.62 | 0.3029 | 856.0 | 614.3 | |
| 0.00 | 1.21 | 0.00 | 0.64 | 22.19 | 54.61 | -9.76 | 25.80 | 0.3620 | 828.0 | 679.6 | |
| 0.00 | 3.88 | 0.00 | 2.05 | 21.49 | 53.98 | -10.39 | 28.18 | 0.3568 | 556.0 | 702.5 | |
| 0.00 | 1.64 | 0.00 | 0.87 | 22.21 | 53.66 | -10.70 | 27.87 | 0.3693 | 898.0 | 696.1 | |
| 0.00 | 1.46 | 0.00 | 0.78 | 21.99 | 53.68 | -10.68 | 28.14 | 0.3661 | 970.0 | 746.6 | |
| 0.00 | 1.38 | 0.00 | 0.72 | 16.76 | 52.98 | -11.38 | 38.94 | 0.3020 | 785.0 | 636.6 | |
| 0.00 | 0.95 | 0.00 | 0.49 | 17.73 | 52.60 | -11.76 | 37.79 | 0.3183 | 733.0 | 526.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
