SDO HMI 2011-11-11 09:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 45.30 | 190.09 | 27.52 | 116.75 | -25.35 | 87.00 | 22.63 | 215.98 | 0.5920 | 23.0 | 156.1 | |
|
previous
or next observation for the same group /

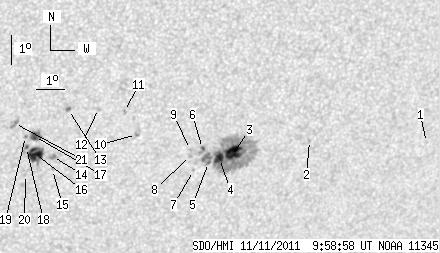

back to the solar disc SDO HMI 2011-11-11 09:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.95 | 0.00 | 0.63 | -25.30 | 96.09 | 31.72 | 225.27 | 0.6715 | -593.0 | -464.2 | |
| 0.00 | 1.38 | 0.00 | 0.88 | -25.10 | 91.62 | 27.25 | 221.43 | 0.6289 | -682.0 | -512.5 | |
| 15.42 | 127.65 | 9.60 | 79.50 | -25.43 | 88.91 | 24.55 | 218.25 | 0.6084 | 1049.8 | 329.7 | |
| 6.72 | -3.00 | 4.17 | -3.00 | -25.62 | 88.45 | 24.09 | 217.53 | 0.6063 | 1022.9 | 999999 | |
| 0.60 | -3.00 | 0.37 | -3.00 | -25.75 | 88.08 | 23.72 | 216.98 | 0.6045 | 757.9 | 999999 | |
| 1.29 | 4.56 | 0.80 | 2.81 | -25.26 | 87.76 | 23.40 | 217.16 | 0.5968 | 927.3 | 738.2 | |
| 0.00 | 1.03 | 0.00 | 0.64 | -26.01 | 87.60 | 23.23 | 216.15 | 0.6032 | 778.0 | 588.2 | |
| 0.00 | 1.38 | 0.00 | 0.85 | -25.49 | 87.38 | 23.02 | 216.47 | 0.5960 | 695.0 | 699.9 | |
| 0.00 | 1.03 | 0.00 | 0.63 | -25.29 | 87.34 | 22.98 | 216.65 | 0.5935 | 811.0 | 644.6 | |
| 0.00 | 1.38 | 0.00 | 0.83 | -24.74 | 85.33 | 20.96 | 214.85 | 0.5708 | -852.0 | -694.2 | |
| 0.00 | 1.46 | 0.00 | 0.87 | -23.95 | 84.77 | 20.41 | 215.03 | 0.5574 | 801.0 | 612.2 | |
| 0.00 | 2.24 | 0.00 | 1.32 | -23.83 | 83.86 | 19.49 | 213.97 | 0.5484 | -413.0 | -319.4 | |
| 0.43 | 1.64 | 0.25 | 0.96 | -23.85 | 82.83 | 18.46 | 212.56 | 0.5403 | -938.8 | -795.1 | |
| 0.00 | 3.45 | 0.00 | 2.05 | -25.42 | 82.52 | 18.15 | 210.49 | 0.5568 | -746.0 | -631.6 | |
| 0.00 | 1.12 | 0.00 | 0.67 | -25.86 | 82.59 | 18.22 | 210.14 | 0.5626 | -517.0 | -429.2 | |
| 14.81 | 23.51 | 8.78 | 13.93 | -25.34 | 81.92 | 17.55 | 209.75 | 0.5515 | -864.3 | -473.6 | |
| 4.82 | 9.73 | 2.84 | 5.73 | -24.73 | 81.79 | 17.43 | 210.19 | 0.5431 | -995.5 | -717.7 | |
| 1.21 | -16.00 | 0.71 | -16.00 | -25.10 | 81.57 | 17.21 | 209.51 | 0.5460 | -845.8 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.61 | -24.73 | 81.48 | 17.12 | 209.76 | 0.5408 | -846.0 | -758.6 | |
| 0.00 | 1.12 | 0.00 | 0.67 | -26.02 | 81.68 | 17.31 | 208.76 | 0.5580 | -638.0 | -456.8 | |
| 0.00 | 5.43 | 0.00 | 3.17 | -24.28 | 81.05 | 16.68 | 209.59 | 0.5320 | -753.0 | -691.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
