SDO HMI 2011-11-11 10:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 68.46 | 340.35 | 62.13 | 310.29 | -14.96 | 117.92 | 54.10 | 249.14 | 0.8335 | 648.5 | 234.7 | |
|
previous
or next observation for the same group /

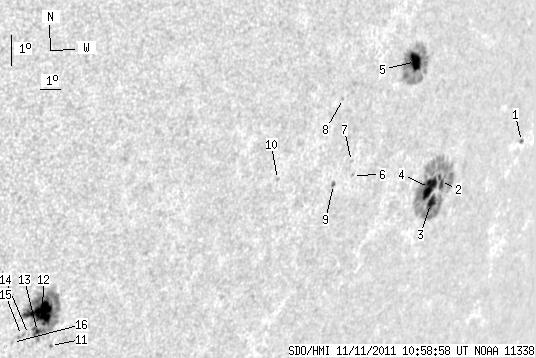

back to the solar disc SDO HMI 2011-11-11 10:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.12 | 1.72 | 1.39 | 2.13 | -13.89 | 128.56 | 64.74 | 253.30 | 0.9184 | 368.0 | 389.1 | |
| 5.17 | 145.03 | 5.45 | 151.44 | -14.87 | 123.65 | 59.84 | 251.22 | 0.8846 | 280.3 | 176.5 | |
| 7.23 | -2.00 | 7.59 | -2.00 | -15.54 | 123.35 | 59.53 | 250.41 | 0.8834 | 435.1 | 999999 | |
| 16.53 | -2.00 | 17.13 | -2.00 | -15.02 | 123.05 | 59.23 | 250.91 | 0.8802 | 795.1 | 999999 | |
| 12.49 | 74.32 | 11.81 | 70.35 | -11.03 | 120.74 | 56.92 | 254.91 | 0.8539 | 811.1 | 230.3 | |
| 0.00 | 1.29 | 0.00 | 1.17 | -14.42 | 118.44 | 54.62 | 250.42 | 0.8403 | -378.0 | -315.6 | |
| 0.00 | 1.12 | 0.00 | 1.01 | -13.98 | 118.23 | 54.41 | 250.88 | 0.8374 | -504.0 | -397.9 | |
| 0.00 | 1.03 | 0.00 | 0.90 | -11.99 | 117.18 | 53.36 | 252.94 | 0.8233 | 533.0 | 439.5 | |
| 1.38 | 2.33 | 1.23 | 2.07 | -14.66 | 117.53 | 53.71 | 249.89 | 0.8326 | -436.7 | -460.9 | |
| 0.00 | 1.03 | 0.00 | 0.86 | -14.37 | 114.61 | 50.79 | 249.35 | 0.8044 | -620.0 | -529.2 | |
| 0.00 | 1.29 | 0.00 | 0.94 | -19.21 | 105.88 | 42.06 | 239.75 | 0.7346 | -254.0 | -378.9 | |
| 23.25 | 106.36 | 16.60 | 76.00 | -18.13 | 105.21 | 41.40 | 240.76 | 0.7225 | 1001.2 | 391.1 | |
| 1.29 | -12.00 | 0.93 | -12.00 | -18.74 | 105.18 | 41.36 | 239.98 | 0.7251 | 563.0 | 999999 | |
| 0.00 | 0.78 | 0.00 | 0.55 | -18.82 | 104.83 | 41.01 | 239.69 | 0.7219 | 401.0 | 385.8 | |
| 0.00 | 2.76 | 0.00 | 1.96 | -18.84 | 104.55 | 40.73 | 239.51 | 0.7190 | 562.0 | 564.7 | |
| 0.00 | 1.29 | 0.00 | 0.91 | -19.05 | 104.24 | 40.42 | 239.07 | 0.7168 | 597.0 | 495.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
