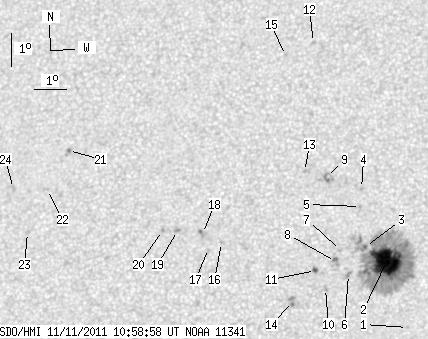

SDO HMI 2011-11-11 10:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 53.99 | 301.16 | 27.11 | 151.45 | 9.64 | 56.36 | -7.46 | 48.51 | 0.1708 | -773.2 | -397.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-11 10:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.95 | 0.00 | 0.47 | 7.48 | 57.68 | -6.14 | 55.36 | 0.1296 | -955.0 | -753.1 | |
| 50.12 | 252.85 | 25.15 | 126.85 | 9.44 | 57.01 | -6.81 | 47.42 | 0.1596 | -1367.7 | -479.7 | |
| 1.72 | -2.00 | 0.87 | -2.00 | 9.89 | 56.36 | -7.46 | 47.97 | 0.1729 | -788.7 | 999999 | |
| 0.00 | 1.29 | 0.00 | 0.65 | 11.62 | 56.20 | -7.62 | 41.81 | 0.1958 | -958.0 | -742.8 | |
| 0.00 | 1.21 | 0.00 | 0.61 | 11.08 | 56.18 | -7.64 | 43.81 | 0.1893 | -872.0 | -675.9 | |
| 0.00 | 3.27 | 0.00 | 1.64 | 9.05 | 55.86 | -7.95 | 53.60 | 0.1706 | -879.0 | -726.2 | |
| 0.00 | 1.12 | 0.00 | 0.56 | 9.76 | 55.60 | -8.21 | 51.21 | 0.1815 | -642.0 | -404.8 | |
| 0.00 | 4.74 | 0.00 | 2.38 | 9.43 | 55.46 | -8.36 | 53.14 | 0.1800 | -867.0 | -669.1 | |
| 0.00 | 7.75 | 0.00 | 3.93 | 11.94 | 55.11 | -8.70 | 44.44 | 0.2124 | 425.0 | 139.8 | |
| 0.00 | 2.15 | 0.00 | 1.08 | 8.62 | 55.18 | -8.64 | 57.81 | 0.1763 | 872.0 | 663.3 | |
| 2.15 | 2.24 | 1.09 | 1.13 | 9.16 | 54.86 | -8.96 | 56.22 | 0.1858 | -898.3 | -978.0 | |
| 0.00 | 1.72 | 0.00 | 0.89 | 16.01 | 54.55 | -9.27 | 35.02 | 0.2709 | 834.0 | 534.5 | |
| 0.00 | 1.38 | 0.00 | 0.70 | 12.12 | 54.43 | -9.38 | 45.98 | 0.2227 | 889.0 | 685.4 | |
| 0.00 | 3.96 | 0.00 | 2.00 | 8.23 | 54.18 | -9.63 | 62.35 | 0.1879 | 975.0 | 835.2 | |
| 0.00 | 1.29 | 0.00 | 0.67 | 15.61 | 53.69 | -10.12 | 38.32 | 0.2742 | 792.0 | 630.5 | |
| 0.00 | 1.12 | 0.00 | 0.57 | 9.96 | 51.96 | -11.86 | 59.90 | 0.2350 | -813.0 | -571.1 | |
| 0.00 | 0.60 | 0.00 | 0.31 | 9.78 | 51.57 | -12.25 | 61.36 | 0.2394 | -536.0 | -610.1 | |
| 0.00 | 3.19 | 0.00 | 1.63 | 10.23 | 51.36 | -12.46 | 60.11 | 0.2459 | -1019.0 | -819.4 | |
| 0.00 | 2.15 | 0.00 | 1.10 | 10.31 | 50.59 | -13.23 | 61.25 | 0.2580 | -1034.0 | -862.1 | |
| 0.00 | 1.72 | 0.00 | 0.88 | 10.30 | 50.12 | -13.70 | 62.06 | 0.2649 | -976.0 | -719.2 | |
| 0.00 | 1.29 | 0.00 | 0.68 | 12.65 | 47.04 | -16.78 | 59.64 | 0.3279 | 908.0 | 842.5 | |
| 0.00 | 0.95 | 0.00 | 0.50 | 11.47 | 46.45 | -17.37 | 63.67 | 0.3279 | 945.0 | 703.9 | |
| 0.00 | 1.64 | 0.00 | 0.86 | 10.17 | 45.90 | -17.92 | 67.98 | 0.3282 | 937.0 | 681.0 | |
| 0.00 | 2.58 | 0.00 | 1.36 | 11.48 | 45.37 | -18.45 | 64.90 | 0.3440 | 838.0 | 635.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
