SDO HMI 2011-11-11 11:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 71.73 | 341.17 | 64.35 | 315.76 | -14.90 | 117.97 | 54.70 | 249.40 | 0.8385 | 634.7 | 216.0 | |
|
previous
or next observation for the same group /

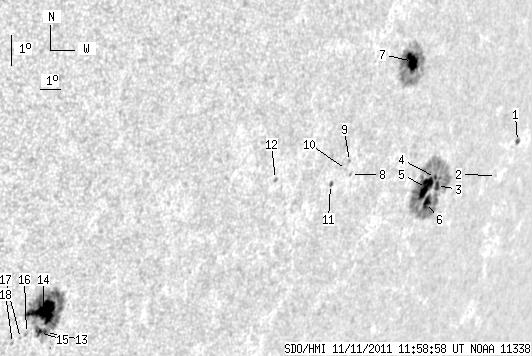

back to the solar disc SDO HMI 2011-11-11 11:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.07 | 3.10 | 2.63 | 3.94 | -13.89 | 128.68 | 65.41 | 253.41 | 0.9227 | 408.0 | 385.2 | |
| 0.00 | 0.52 | 0.00 | 0.64 | -14.89 | 127.70 | 64.43 | 252.16 | 0.9175 | -317.0 | -292.3 | |
| 2.76 | 138.81 | 2.96 | 147.63 | -15.00 | 123.73 | 60.46 | 251.23 | 0.8895 | 190.9 | 167.8 | |
| 1.12 | -3.00 | 1.19 | -3.00 | -14.74 | 123.54 | 60.27 | 251.47 | 0.8877 | 471.0 | 999999 | |
| 14.47 | -3.00 | 15.25 | -3.00 | -15.03 | 123.12 | 59.85 | 251.05 | 0.8849 | 771.2 | 999999 | |
| 6.54 | -3.00 | 6.98 | -3.00 | -15.51 | 123.35 | 60.08 | 250.58 | 0.8875 | 439.2 | 999999 | |
| 11.88 | 79.30 | 11.41 | 76.22 | -11.03 | 120.76 | 57.49 | 255.03 | 0.8588 | 818.0 | 225.6 | |
| 0.00 | 0.86 | 0.00 | 0.79 | -14.39 | 118.48 | 55.21 | 250.62 | 0.8454 | -290.0 | -230.5 | |
| 0.00 | 1.12 | 0.00 | 1.02 | -13.98 | 118.27 | 55.00 | 251.04 | 0.8427 | -435.0 | -389.8 | |
| 0.00 | 0.86 | 0.00 | 0.79 | -14.22 | 118.20 | 54.93 | 250.74 | 0.8425 | -557.0 | -445.2 | |
| 1.29 | 1.98 | 1.16 | 1.79 | -14.65 | 117.50 | 54.23 | 250.04 | 0.8373 | -452.3 | -458.0 | |
| 0.00 | 1.81 | 0.00 | 1.52 | -14.36 | 114.60 | 51.33 | 249.53 | 0.8096 | -529.0 | -472.0 | |
| 1.03 | 109.36 | 0.75 | 78.95 | -18.78 | 105.54 | 42.27 | 240.41 | 0.7346 | -286.9 | 349.6 | |
| 28.93 | -13.00 | 20.84 | -13.00 | -18.10 | 105.24 | 41.97 | 241.12 | 0.7284 | 955.4 | 999999 | |
| 1.64 | -13.00 | 1.18 | -13.00 | -18.77 | 105.28 | 42.01 | 240.29 | 0.7319 | 581.8 | 999999 | |
| 0.00 | 1.38 | 0.00 | 0.99 | -18.78 | 104.73 | 41.46 | 239.99 | 0.7263 | 626.0 | 576.4 | |
| 0.00 | 0.95 | 0.00 | 0.68 | -18.93 | 104.53 | 41.26 | 239.69 | 0.7249 | 666.0 | 549.1 | |
| 0.00 | 1.12 | 0.00 | 0.80 | -19.08 | 104.24 | 40.97 | 239.34 | 0.7226 | 541.0 | 470.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
