SDO HMI 2011-11-11 12:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 72.57 | 329.57 | 64.90 | 310.25 | -14.91 | 118.13 | 55.40 | 249.61 | 0.8446 | 623.5 | 209.2 | |
|
previous
or next observation for the same group /

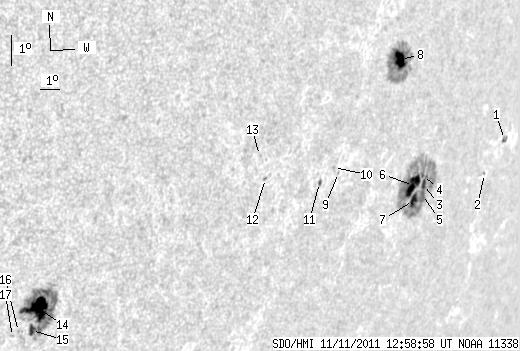

back to the solar disc SDO HMI 2011-11-11 12:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.93 | 0.00 | 3.83 | -13.90 | 128.81 | 66.08 | 253.53 | 0.9270 | 606.0 | 387.2 | |
| 0.00 | 1.03 | 0.00 | 1.31 | -14.90 | 127.88 | 65.16 | 252.29 | 0.9223 | -168.0 | -192.5 | |
| 2.67 | 136.55 | 2.92 | 147.68 | -15.03 | 123.76 | 61.04 | 251.32 | 0.8939 | 137.8 | 177.4 | |
| 1.46 | -3.00 | 1.59 | -3.00 | -14.74 | 123.56 | 60.84 | 251.60 | 0.8919 | 456.2 | 999999 | |
| 1.12 | -3.00 | 1.23 | -3.00 | -15.34 | 123.85 | 61.13 | 251.00 | 0.8951 | -459.5 | 999999 | |
| 13.60 | -3.00 | 14.59 | -3.00 | -15.02 | 123.13 | 60.40 | 251.18 | 0.8892 | 761.6 | 999999 | |
| 6.03 | -3.00 | 6.54 | -3.00 | -15.50 | 123.36 | 60.64 | 250.71 | 0.8917 | 432.4 | 999999 | |
| 12.14 | 74.73 | 11.84 | 72.94 | -11.03 | 120.78 | 58.05 | 255.16 | 0.8637 | 802.4 | 231.9 | |
| 0.00 | 0.86 | 0.00 | 0.80 | -14.39 | 118.47 | 55.75 | 250.77 | 0.8501 | -319.0 | -236.3 | |
| 0.00 | 0.95 | 0.00 | 0.88 | -14.21 | 118.13 | 55.41 | 250.87 | 0.8468 | -510.0 | -448.3 | |
| 1.55 | 2.41 | 1.42 | 2.20 | -14.65 | 117.54 | 54.82 | 250.21 | 0.8425 | -396.8 | -365.1 | |
| 0.00 | 1.46 | 0.00 | 1.25 | -14.39 | 114.65 | 51.93 | 249.68 | 0.8154 | -599.0 | -499.2 | |
| 0.00 | 0.95 | 0.00 | 0.79 | -13.65 | 114.12 | 51.40 | 250.40 | 0.8084 | -174.0 | -305.4 | |
| 29.44 | 105.81 | 21.43 | 77.20 | -18.06 | 105.36 | 42.64 | 241.50 | 0.7352 | 935.7 | 296.5 | |
| 4.56 | -14.00 | 3.34 | -14.00 | -18.76 | 105.32 | 42.60 | 240.61 | 0.7380 | 557.3 | 999999 | |
| 0.00 | 0.77 | 0.00 | 0.56 | -18.77 | 104.77 | 42.05 | 240.31 | 0.7323 | 615.0 | 503.4 | |
| 0.00 | 1.12 | 0.00 | 0.81 | -18.92 | 104.56 | 41.84 | 240.01 | 0.7309 | 651.0 | 488.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
