Sunspot Group 11339

group	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP

11339	228.15	1368.74	161.37	959.08	19.17	105.83	43.10	294.17	0.7088	-470.3	-283.8

previous or next observation for the same group / back to the solar disc

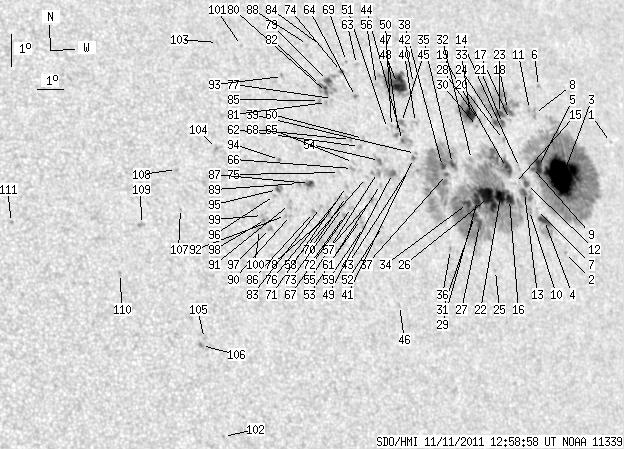

SDO HMI 2011-11-11 12:58:58 UT
No observation available

See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)

spot	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP

1	0.00	0.77	0.00	0.60	19.83	111.49	48.76	293.19	0.7719	-306.0	-316.4
2	0.00	1.03	0.00	0.75	16.56	108.24	45.52	289.78	0.7292	-533.0	-451.3
3	76.11	429.36	56.02	316.74	18.88	108.88	46.15	292.70	0.7420	-1041.4	-183.7
4	6.63	21.09	4.75	15.10	17.57	107.63	44.91	291.31	0.7248	-773.3	-441.4
5	7.58	-3.00	5.49	-3.00	19.23	107.92	45.19	293.45	0.7326	-949.8	999999
6	0.00	1.55	0.00	1.16	21.69	108.86	46.14	296.37	0.7501	-517.0	-424.5
7	0.00	1.29	0.00	0.92	17.91	107.43	44.71	291.84	0.7235	-661.0	-540.5
8	0.00	3.79	0.00	2.79	20.87	108.35	45.62	295.47	0.7421	-180.0	-109.5
9	0.60	-3.00	0.43	-3.00	19.21	107.64	44.92	293.51	0.7295	-915.0	999999
10	0.00	3.27	0.00	2.32	17.90	107.07	44.35	291.93	0.7194	-722.0	-653.3
11	0.00	1.64	0.00	1.20	21.00	108.17	45.45	295.70	0.7407	390.0	292.4
12	2.76	403.01	1.97	279.34	18.70	107.20	44.48	292.97	0.7232	-755.6	-536.6
13	2.84	-12.00	2.02	-12.00	18.46	107.03	44.31	292.69	0.7206	-856.3	999999
14	0.00	2.41	0.00	1.72	19.23	107.07	44.35	293.72	0.7233	-544.0	-449.6
15	0.00	1.38	0.00	0.98	18.75	106.69	43.97	293.20	0.7176	-660.0	-572.6
16	5.34	-12.00	3.75	-12.00	18.27	106.32	43.60	292.67	0.7120	-835.0	999999
17	0.00	1.46	0.00	1.06	20.72	107.16	44.44	295.68	0.7290	-543.0	-413.4
18	6.54	75.51	4.73	54.25	21.04	107.19	44.47	296.09	0.7304	-500.7	-163.2
19	8.52	-12.00	6.04	-12.00	19.25	106.51	43.79	293.94	0.7171	-777.2	999999
20	0.00	1.81	0.00	1.29	20.12	106.68	43.96	295.05	0.7218	-669.0	-563.3
21	2.67	-18.00	1.91	-18.00	20.61	106.81	44.09	295.66	0.7248	-683.7	999999
22	8.52	-12.00	5.96	-12.00	18.37	105.96	43.24	292.93	0.7083	-1029.7	999999
23	4.99	-18.00	3.58	-18.00	20.93	106.79	44.07	296.08	0.7257	-788.1	999999
24	3.10	-18.00	2.21	-18.00	20.65	106.52	43.80	295.82	0.7218	-815.4	999999
25	0.00	1.12	0.00	0.77	16.13	105.10	42.38	290.07	0.6917	576.0	378.1
26	20.92	-12.00	14.50	-12.00	18.36	105.45	42.72	293.09	0.7023	-1065.9	999999
27	3.96	-12.00	2.71	-12.00	17.55	104.82	42.10	292.17	0.6926	-873.6	999999
28	0.00	1.98	0.00	1.40	20.74	105.85	43.13	296.19	0.7148	-705.0	-618.7
29	7.32	-12.00	5.03	-12.00	18.29	104.96	42.23	293.15	0.6965	-1071.5	999999
30	0.00	1.03	0.00	0.73	20.56	105.70	42.97	296.00	0.7125	-760.0	-664.8
31	3.01	-12.00	2.06	-12.00	17.80	104.69	41.96	292.57	0.6918	-1108.6	999999
32	0.00	2.32	0.00	1.61	19.55	105.10	42.37	294.85	0.7023	-362.0	-322.1
33	7.15	36.59	5.02	25.73	20.94	105.53	42.80	296.58	0.7120	-1023.3	-469.2
34	3.70	-12.00	2.53	-12.00	18.21	104.51	41.79	293.20	0.6911	-1088.2	999999
35	2.76	150.58	1.89	101.77	19.46	104.26	41.54	295.04	0.6924	-829.4	-553.1
36	0.00	1.55	0.00	1.04	16.84	103.42	40.70	291.63	0.6738	-705.0	-556.4
37	1.46	-35.00	0.99	-35.00	19.13	103.91	41.18	294.72	0.6872	-900.7	999999
38	2.50	-35.00	1.70	-35.00	19.38	103.82	41.09	295.11	0.6871	-1059.1	999999
39	0.00	0.95	0.00	0.64	19.82	102.83	40.10	296.13	0.6773	174.0	122.3
40	0.00	2.15	0.00	1.46	20.78	103.13	40.41	297.34	0.6846	346.0	231.2
41	1.29	1.55	0.86	1.04	19.67	102.70	39.98	295.97	0.6753	268.7	97.0
42	0.00	1.38	0.00	0.94	21.99	103.45	40.73	298.87	0.6932	-479.0	-417.1
43	0.00	1.89	0.00	1.26	19.43	102.50	39.78	295.71	0.6720	-436.0	-444.8
44	1.46	10.85	0.98	7.27	20.24	102.42	39.70	296.90	0.6743	512.3	34.0
45	0.00	4.74	0.00	3.18	20.80	102.55	39.83	297.62	0.6781	585.0	403.0
46	0.00	1.46	0.00	0.94	15.21	100.99	38.27	290.08	0.6386	331.0	223.5
47	0.00	5.85	0.00	3.91	20.50	102.33	39.61	297.29	0.6743	567.0	559.8
48	21.78	47.78	14.78	32.38	22.02	102.79	40.06	299.20	0.6859	-908.1	-659.7
49	3.01	8.27	1.99	5.44	19.24	101.71	38.99	295.78	0.6620	-483.6	-292.0
50	0.00	1.12	0.00	0.75	20.69	102.10	39.38	297.67	0.6726	652.0	572.3
51	0.00	0.86	0.00	0.57	20.63	101.92	39.20	297.67	0.6702	701.0	534.6
52	0.00	0.95	0.00	0.61	17.63	100.88	38.16	293.77	0.6457	527.0	467.5
53	0.00	1.29	0.00	0.84	18.92	101.14	38.42	295.56	0.6539	161.0	115.0
54	0.60	4.13	0.40	2.71	19.66	101.31	38.58	296.56	0.6589	-391.4	-184.7
55	0.00	6.89	0.00	4.50	19.29	101.12	38.40	296.11	0.6552	470.0	277.1
56	0.00	1.81	0.00	1.21	22.02	101.91	39.19	299.62	0.6762	-449.0	-414.0
57	0.00	2.24	0.00	1.45	18.47	100.66	37.94	295.12	0.6464	561.0	521.2
58	0.00	1.03	0.00	0.67	19.15	100.64	37.92	296.13	0.6490	403.0	435.1
59	0.00	1.64	0.00	1.05	17.63	100.13	37.41	294.09	0.6365	739.0	551.7
60	0.00	1.89	0.00	1.24	20.36	100.86	38.14	297.78	0.6568	404.0	309.6
61	0.00	3.79	0.00	2.43	17.87	100.07	37.35	294.49	0.6368	517.0	523.9
62	0.00	1.81	0.00	1.18	20.12	100.63	37.91	297.54	0.6530	612.0	520.2
63	0.00	1.38	0.00	0.92	22.67	101.30	38.58	300.83	0.6724	556.0	357.0
64	0.00	1.98	0.00	1.31	21.67	100.94	38.21	299.61	0.6636	-874.0	-757.9
65	0.00	1.64	0.00	1.06	19.63	100.26	37.53	297.01	0.6464	397.0	281.2
66	0.00	2.15	0.00	1.39	19.45	100.17	37.44	296.79	0.6445	657.0	527.0
67	0.00	1.72	0.00	1.10	18.25	99.81	37.09	295.18	0.6352	599.0	560.2
68	0.00	1.29	0.00	0.84	20.35	100.34	37.61	298.02	0.6505	719.0	611.7
69	0.00	0.95	0.00	0.63	22.78	100.93	38.20	301.17	0.6688	417.0	392.5
70	0.00	0.69	0.00	0.44	18.60	99.70	36.98	295.74	0.6353	574.0	465.6
71	0.00	1.72	0.00	1.10	18.90	99.78	37.06	296.16	0.6376	685.0	565.7
72	0.00	1.12	0.00	0.71	18.02	99.48	36.76	294.97	0.6301	700.0	592.7
73	0.00	1.55	0.00	0.99	18.26	99.46	36.74	295.36	0.6309	584.0	629.6
74	1.12	1.72	0.74	1.14	22.47	100.62	37.90	300.90	0.6639	396.5	473.3
75	0.00	0.95	0.00	0.61	19.34	99.62	36.90	296.90	0.6376	784.0	631.2
76	0.00	2.58	0.00	1.65	18.55	99.38	36.66	295.82	0.6311	670.0	579.4
77	0.00	0.52	0.00	0.34	21.64	100.00	37.27	300.05	0.6527	297.0	321.0
78	0.00	2.41	0.00	1.52	18.07	98.91	36.19	295.32	0.6233	826.0	618.9
79	2.93	23.07	1.91	15.07	22.21	99.97	37.25	300.88	0.6552	610.2	397.2
80	1.12	-79.00	0.73	-79.00	21.84	99.81	37.09	300.43	0.6516	668.6	999999
81	0.00	1.81	0.00	1.17	21.52	99.72	37.00	300.03	0.6490	744.0	594.0
82	0.52	-79.00	0.34	-79.00	22.06	99.64	36.92	300.84	0.6508	811.5	999999
83	0.00	2.07	0.00	1.30	18.29	98.62	35.89	295.81	0.6206	543.0	560.2
84	0.00	1.12	0.00	0.74	23.31	100.04	37.32	302.39	0.6617	539.0	425.8
85	0.00	1.89	0.00	1.23	21.60	99.46	36.74	300.27	0.6463	833.0	692.5
86	0.00	2.58	0.00	1.62	18.15	98.31	35.59	295.74	0.6162	665.0	529.3
87	3.53	6.54	2.23	4.12	19.04	98.37	35.65	297.08	0.6211	849.8	701.0
88	0.00	1.29	0.00	0.85	23.36	99.53	36.81	302.75	0.6562	652.0	544.5
89	0.00	1.81	0.00	1.13	19.06	97.95	35.23	297.32	0.6160	747.0	754.0
90	0.00	1.38	0.00	0.85	18.08	97.42	34.69	296.10	0.6048	810.0	647.9
91	0.00	3.79	0.00	2.36	18.42	97.46	34.73	296.60	0.6068	591.0	522.9
92	0.00	0.95	0.00	0.59	18.09	97.23	34.50	296.21	0.6024	702.0	687.0
93	0.00	1.72	0.00	1.10	22.39	98.23	35.51	302.12	0.6363	704.0	571.9
94	0.00	1.21	0.00	0.75	19.82	97.41	34.69	298.78	0.6131	763.0	668.8
95	1.81	4.99	1.12	3.10	18.90	97.11	34.39	297.53	0.6048	564.7	665.3
96	0.00	1.29	0.00	0.80	18.72	96.95	34.23	297.34	0.6020	804.0	686.4
97	0.00	2.76	0.00	1.69	17.71	96.58	33.85	295.95	0.5925	741.0	609.9
98	0.00	2.41	0.00	1.48	17.99	96.45	33.73	296.47	0.5922	932.0	729.8
99	0.00	0.95	0.00	0.58	18.12	96.36	33.64	296.72	0.5917	794.0	712.9
100	0.00	2.58	0.00	1.58	17.69	96.16	33.44	296.15	0.5871	745.0	668.0
101	0.00	0.95	0.00	0.60	23.41	96.92	34.19	304.40	0.6274	613.0	498.4
102	0.00	1.12	0.00	0.65	11.48	93.82	31.10	286.56	0.5302	705.0	527.6
103	0.00	0.95	0.00	0.60	23.54	96.02	33.29	305.18	0.6180	701.0	518.3
104	0.00	3.44	0.00	2.10	20.23	95.12	32.39	300.81	0.5875	811.0	641.3
105	0.00	0.86	0.00	0.50	14.44	93.56	30.84	292.07	0.5378	726.0	519.0
106	0.00	2.24	0.00	1.31	14.23	93.42	30.70	291.77	0.5350	919.0	748.1
107	0.00	0.77	0.00	0.46	18.42	93.40	30.67	299.03	0.5557	-474.0	-339.4
108	0.00	1.55	0.00	0.93	19.62	93.50	30.77	300.94	0.5641	682.0	546.5
109	0.00	2.67	0.00	1.56	17.97	91.90	29.18	299.31	0.5340	682.0	616.3
110	0.00	1.46	0.00	0.84	16.49	90.91	28.18	297.42	0.5122	847.0	669.4
111	0.00	1.29	0.00	0.73	18.14	87.37	24.65	303.40	0.4767	707.0	625.2

	Proj. U	- Projected umbra area in millionths of solar disc, negative values indicate
	that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
	Proj. WS	- Projected whole spot area in millionths of solar disc, negative values indicate
	that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7.
	Corr. U	- Corrected umbra area in millionths of solar hemisphere, for negative values see above
	Corr. WS	- Corrected whole spot area in millionths of solar hemisphere, for negative values see above
	B	- Heliographic latitude B; positive: North, negative: South
	L	- Heliographic longitude L
	LCM	- Longitudinal distance from the Sun's central meridian
	Pos. angle	- Position angle
	r	- Distance from the centre of Sun's disc in terms of Sun's radius
	MU	- Mean magnetic field within the umbra contour averaged the pixel values with sign.
	MP	- Mean magnetic field within the penumbra contour averaged the pixel values with sign.
