SDO HMI 2011-11-11 12:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 37.19 | 245.11 | 19.11 | 125.97 | -8.35 | 72.89 | 10.16 | 221.01 | 0.2674 | 1262.6 | 434.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-11 12:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

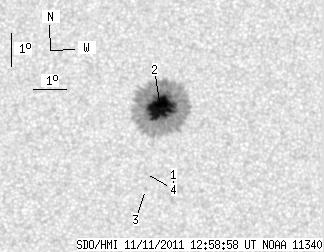

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.58 | 0.00 | 1.34 | -11.14 | 73.34 | 10.62 | 216.07 | 0.3085 | -822.0 | -651.6 | |
| 37.19 | 240.64 | 19.11 | 123.65 | -8.30 | 72.89 | 10.16 | 221.11 | 0.2668 | 1420.3 | 446.8 | |
| 0.00 | 0.86 | 0.00 | 0.45 | -10.79 | 72.50 | 9.78 | 214.53 | 0.2957 | 754.0 | 646.6 | |
| 0.00 | 1.03 | 0.00 | 0.53 | -10.31 | 72.49 | 9.76 | 215.46 | 0.2889 | 843.0 | 596.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
