SDO HMI 2011-11-11 12:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 66.47 | 419.12 | 33.77 | 213.30 | 16.29 | 64.55 | 1.83 | 351.75 | 0.2297 | -857.6 | -444.0 | |
|
previous
or next observation for the same group /

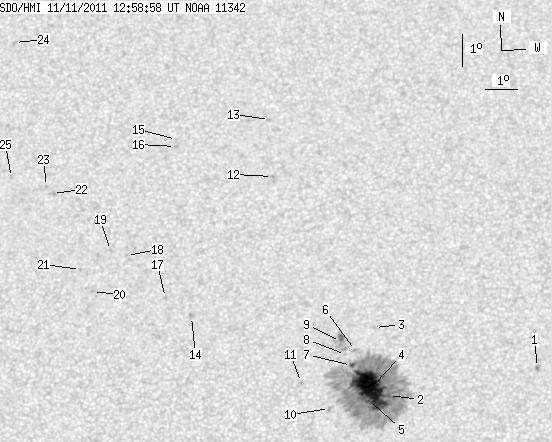

back to the solar disc SDO HMI 2011-11-11 12:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.72 | 0.00 | 0.88 | 16.60 | 70.12 | 7.40 | 331.86 | 0.2628 | -1006.0 | -815.3 | |
| 1.81 | 379.51 | 0.92 | 192.82 | 15.77 | 65.48 | 2.75 | 347.93 | 0.2221 | -790.0 | -468.8 | |
| 0.00 | 0.60 | 0.00 | 0.31 | 17.85 | 65.07 | 2.35 | 351.19 | 0.2555 | 778.0 | 591.9 | |
| 62.68 | -2.00 | 31.85 | -2.00 | 15.98 | 64.92 | 2.20 | 350.47 | 0.2239 | -1376.7 | 999999 | |
| 0.34 | -2.00 | 0.17 | -2.00 | 15.62 | 64.86 | 2.13 | 350.47 | 0.2176 | -1296.8 | 999999 | |
| 0.00 | 1.81 | 0.00 | 0.92 | 17.14 | 64.47 | 1.75 | 353.06 | 0.2423 | -683.0 | -609.0 | |
| 1.64 | -2.00 | 0.83 | -2.00 | 16.69 | 64.34 | 1.62 | 353.34 | 0.2343 | -741.8 | 999999 | |
| 0.00 | 0.95 | 0.00 | 0.48 | 17.02 | 64.16 | 1.44 | 354.24 | 0.2397 | -650.0 | -516.9 | |
| 0.00 | 12.05 | 0.00 | 6.16 | 17.42 | 64.01 | 1.28 | 355.00 | 0.2462 | -886.0 | -715.1 | |
| 0.00 | 2.58 | 0.00 | 1.31 | 15.38 | 63.65 | 0.93 | 355.72 | 0.2110 | -786.0 | -572.6 | |
| 0.00 | 1.03 | 0.00 | 0.52 | 16.17 | 62.79 | 0.07 | 359.70 | 0.2239 | -763.0 | -597.7 | |
| 0.00 | 1.12 | 0.00 | 0.59 | 22.53 | 61.86 | -0.86 | 2.40 | 0.3313 | -892.0 | -793.2 | |
| 0.00 | 1.38 | 0.00 | 0.73 | 24.34 | 61.75 | -0.97 | 2.45 | 0.3610 | -782.0 | -571.8 | |
| 0.00 | 2.93 | 0.00 | 1.50 | 18.18 | 59.36 | -3.36 | 12.24 | 0.2642 | 557.0 | 481.9 | |
| 0.00 | 1.21 | 0.00 | 0.64 | 23.69 | 58.74 | -3.98 | 10.33 | 0.3561 | -675.0 | -524.0 | |
| 0.00 | 1.38 | 0.00 | 0.73 | 23.47 | 58.72 | -4.00 | 10.51 | 0.3526 | -806.0 | -499.1 | |
| 0.00 | 1.46 | 0.00 | 0.75 | 18.76 | 58.53 | -4.19 | 14.54 | 0.2770 | 853.0 | 571.0 | |
| 0.00 | 0.86 | 0.00 | 0.45 | 20.05 | 57.26 | -5.46 | 17.21 | 0.3036 | 803.0 | 628.2 | |
| 0.00 | 0.95 | 0.00 | 0.49 | 20.21 | 56.75 | -5.98 | 18.54 | 0.3086 | 948.0 | 737.8 | |
| 0.00 | 0.95 | 0.00 | 0.49 | 18.94 | 56.23 | -6.50 | 21.62 | 0.2918 | 647.0 | 551.8 | |
| 0.00 | 0.95 | 0.00 | 0.49 | 19.61 | 55.82 | -6.90 | 21.92 | 0.3047 | 775.0 | 536.9 | |
| 0.00 | 2.50 | 0.00 | 1.32 | 21.97 | 54.81 | -7.92 | 21.71 | 0.3468 | 852.0 | 736.9 | |
| 0.00 | 0.86 | 0.00 | 0.46 | 22.19 | 54.60 | -8.12 | 21.97 | 0.3514 | 782.0 | 594.3 | |
| 0.00 | 1.46 | 0.00 | 0.80 | 26.76 | 53.22 | -9.51 | 20.28 | 0.4272 | -751.0 | -630.8 | |
| 0.00 | 0.86 | 0.00 | 0.46 | 22.46 | 53.45 | -9.28 | 24.36 | 0.3628 | 563.0 | 391.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
