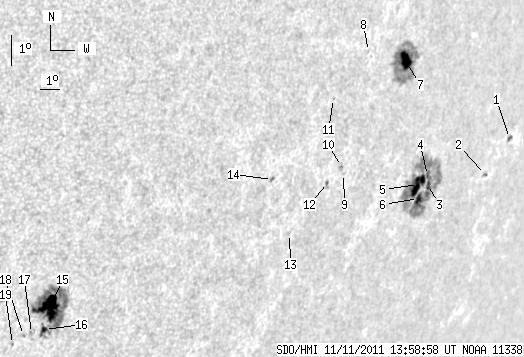

SDO HMI 2011-11-11 13:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 63.54 | 323.92 | 59.19 | 310.73 | -14.80 | 118.28 | 56.11 | 249.95 | 0.8505 | 631.2 | 202.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-11 13:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.07 | 2.75 | 2.78 | 3.70 | -13.87 | 128.93 | 66.75 | 253.67 | 0.9311 | 346.6 | 405.9 | |
| 0.34 | 1.98 | 0.44 | 2.55 | -14.92 | 127.70 | 65.53 | 252.34 | 0.9246 | -176.2 | -173.5 | |
| 1.81 | 133.00 | 2.02 | 146.47 | -15.02 | 123.72 | 61.54 | 251.44 | 0.8976 | 132.0 | 161.0 | |
| 1.21 | -3.00 | 1.33 | -3.00 | -14.73 | 123.57 | 61.40 | 251.72 | 0.8961 | 362.1 | 999999 | |
| 14.63 | -3.00 | 15.97 | -3.00 | -14.99 | 123.12 | 60.95 | 251.34 | 0.8932 | 757.8 | 999999 | |
| 3.62 | -3.00 | 3.99 | -3.00 | -15.44 | 123.34 | 61.17 | 250.90 | 0.8955 | 468.8 | 999999 | |
| 12.14 | 74.55 | 12.04 | 73.90 | -11.05 | 120.75 | 58.57 | 255.23 | 0.8681 | 796.7 | 245.1 | |
| 0.00 | 0.60 | 0.00 | 0.56 | -10.67 | 118.54 | 56.36 | 255.21 | 0.8483 | 544.0 | 502.6 | |
| 0.00 | 0.34 | 0.00 | 0.33 | -14.41 | 118.42 | 56.24 | 250.87 | 0.8544 | -304.0 | -273.0 | |
| 0.00 | 1.89 | 0.00 | 1.78 | -14.18 | 118.22 | 56.04 | 251.08 | 0.8522 | -469.0 | -384.2 | |
| 0.00 | 1.03 | 0.00 | 0.93 | -12.03 | 117.05 | 54.88 | 253.27 | 0.8374 | 413.0 | 434.0 | |
| 1.12 | 3.01 | 1.04 | 2.80 | -14.65 | 117.63 | 55.46 | 250.39 | 0.8481 | -407.5 | -304.3 | |
| 0.00 | 1.38 | 0.00 | 1.25 | -16.17 | 116.19 | 54.01 | 248.23 | 0.8390 | -337.0 | -210.1 | |
| 0.00 | 1.89 | 0.00 | 1.63 | -14.42 | 114.66 | 52.48 | 249.82 | 0.8207 | -569.0 | -447.5 | |
| 23.67 | 97.62 | 17.42 | 71.99 | -18.02 | 105.48 | 43.31 | 241.88 | 0.7419 | 980.0 | 309.7 | |
| 2.93 | -15.00 | 2.16 | -15.00 | -18.72 | 105.49 | 43.31 | 241.01 | 0.7451 | 511.3 | 999999 | |
| 0.00 | 1.55 | 0.00 | 1.14 | -18.83 | 104.96 | 42.79 | 240.61 | 0.7402 | 495.0 | 388.0 | |
| 0.00 | 1.12 | 0.00 | 0.82 | -18.88 | 104.63 | 42.46 | 240.38 | 0.7371 | 540.0 | 470.2 | |
| 0.00 | 1.21 | 0.00 | 0.88 | -19.15 | 104.25 | 42.08 | 239.85 | 0.7345 | 583.0 | 501.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
