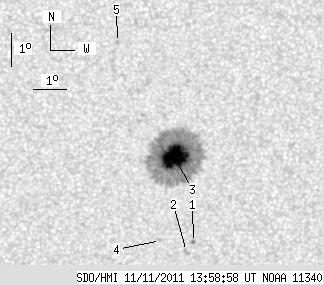

SDO HMI 2011-11-11 13:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 39.77 | 238.45 | 20.47 | 122.76 | -8.32 | 72.88 | 10.71 | 222.57 | 0.2731 | 1114.8 | 420.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-11 13:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.38 | 0.00 | 0.72 | -10.90 | 73.55 | 11.38 | 218.44 | 0.3130 | -1007.0 | -820.8 | |
| 0.00 | 2.58 | 0.00 | 1.35 | -11.18 | 73.35 | 11.17 | 217.39 | 0.3145 | -817.0 | -701.1 | |
| 39.77 | 231.74 | 20.47 | 119.28 | -8.28 | 72.88 | 10.71 | 222.66 | 0.2726 | 1421.5 | 451.0 | |
| 0.00 | 1.29 | 0.00 | 0.67 | -10.83 | 72.54 | 10.36 | 216.01 | 0.3018 | 866.0 | 638.6 | |
| 0.00 | 1.46 | 0.00 | 0.74 | -4.83 | 71.09 | 8.91 | 227.69 | 0.2097 | -862.0 | -672.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
