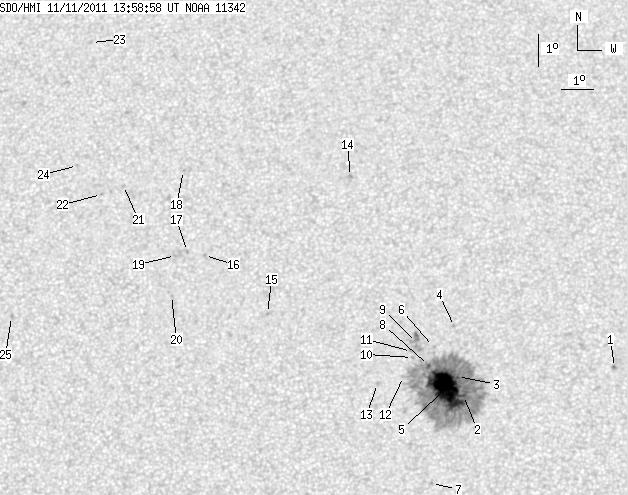

SDO HMI 2011-11-11 13:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 64.91 | 412.87 | 32.99 | 210.11 | 16.21 | 64.57 | 2.39 | 349.46 | 0.2299 | -845.3 | -447.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-11 13:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.46 | 0.00 | 0.75 | 16.59 | 70.13 | 7.96 | 330.10 | 0.2673 | -1057.0 | -918.1 | |
| 0.95 | 379.54 | 0.48 | 192.91 | 15.77 | 65.42 | 3.24 | 345.86 | 0.2239 | -893.0 | -472.5 | |
| 0.69 | -2.00 | 0.35 | -2.00 | 16.34 | 65.24 | 3.07 | 347.19 | 0.2328 | -931.4 | 999999 | |
| 0.00 | 1.38 | 0.00 | 0.71 | 17.87 | 65.17 | 3.00 | 348.81 | 0.2579 | 471.0 | 495.6 | |
| 61.72 | -2.00 | 31.37 | -2.00 | 15.98 | 64.87 | 2.69 | 348.39 | 0.2254 | -1410.0 | 999999 | |
| 0.00 | 0.52 | 0.00 | 0.26 | 17.26 | 64.51 | 2.34 | 350.84 | 0.2458 | -302.0 | -295.0 | |
| 0.00 | 0.95 | 0.00 | 0.48 | 13.11 | 64.40 | 2.23 | 347.47 | 0.1756 | -826.0 | -668.6 | |
| 1.55 | -2.00 | 0.79 | -2.00 | 16.68 | 64.35 | 2.17 | 351.08 | 0.2356 | -784.9 | 999999 | |
| 0.00 | 10.33 | 0.00 | 5.28 | 17.38 | 63.98 | 1.81 | 352.95 | 0.2466 | -825.0 | -736.5 | |
| 0.00 | 1.29 | 0.00 | 0.66 | 16.93 | 63.85 | 1.68 | 353.21 | 0.2386 | -713.0 | -565.6 | |
| 0.00 | 1.55 | 0.00 | 0.79 | 17.11 | 63.83 | 1.65 | 353.42 | 0.2416 | -804.0 | -619.0 | |
| 0.00 | 1.29 | 0.00 | 0.66 | 16.35 | 63.57 | 1.40 | 354.09 | 0.2282 | -112.0 | -110.5 | |
| 0.00 | 1.29 | 0.00 | 0.66 | 16.14 | 62.77 | 0.59 | 357.44 | 0.2236 | -799.0 | -587.2 | |
| 0.00 | 1.29 | 0.00 | 0.68 | 22.53 | 61.92 | -0.25 | 0.70 | 0.3310 | -872.0 | -738.5 | |
| 0.00 | 1.29 | 0.00 | 0.66 | 18.27 | 59.34 | -2.84 | 10.30 | 0.2640 | 842.0 | 598.1 | |
| 0.00 | 1.21 | 0.00 | 0.63 | 20.05 | 57.31 | -4.86 | 15.42 | 0.3008 | 851.0 | 696.6 | |
| 0.00 | 1.12 | 0.00 | 0.58 | 20.17 | 56.77 | -5.40 | 16.92 | 0.3052 | 962.0 | 772.0 | |
| 0.00 | 0.95 | 0.00 | 0.50 | 22.70 | 56.54 | -5.63 | 15.22 | 0.3463 | -707.0 | -509.1 | |
| 0.00 | 1.03 | 0.00 | 0.54 | 20.05 | 56.39 | -5.78 | 18.15 | 0.3051 | 897.0 | 663.3 | |
| 0.00 | 1.03 | 0.00 | 0.53 | 18.81 | 56.31 | -5.86 | 19.84 | 0.2861 | 787.0 | 615.1 | |
| 0.00 | 1.21 | 0.00 | 0.64 | 22.22 | 54.63 | -7.55 | 20.51 | 0.3484 | 739.0 | 581.4 | |
| 0.00 | 1.21 | 0.00 | 0.64 | 21.93 | 53.93 | -8.24 | 22.55 | 0.3483 | 787.0 | 626.1 | |
| 0.00 | 1.03 | 0.00 | 0.56 | 26.77 | 53.27 | -8.90 | 19.10 | 0.4240 | -739.0 | -625.2 | |
| 0.00 | 0.52 | 0.00 | 0.27 | 22.84 | 53.10 | -9.08 | 23.44 | 0.3670 | 735.0 | 623.2 | |
| 0.00 | 1.38 | 0.00 | 0.72 | 18.13 | 51.28 | -10.89 | 34.93 | 0.3150 | 785.0 | 588.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
