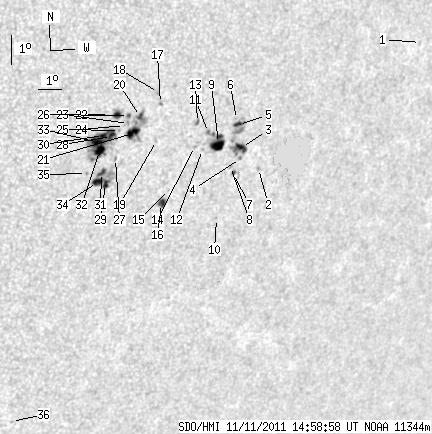

SDO HMI 2011-11-11 14:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 72.73 | 207.52 | 49.29 | 140.71 | -17.42 | 99.84 | 38.22 | 239.85 | 0.6843 | -241.8 | -122.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-11 14:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.95 | 0.00 | 0.75 | -14.59 | 110.37 | 48.74 | 248.40 | 0.7847 | -529.0 | -432.2 | |
| 0.00 | 1.46 | 0.00 | 1.07 | -18.28 | 104.28 | 42.65 | 241.23 | 0.7363 | 676.0 | 446.7 | |
| 4.99 | 13.17 | 3.57 | 9.40 | -17.58 | 103.35 | 41.73 | 241.65 | 0.7233 | 782.4 | 594.5 | |
| 0.00 | 1.55 | 0.00 | 1.11 | -17.93 | 103.41 | 41.79 | 241.23 | 0.7256 | 621.0 | 502.3 | |
| 3.01 | 16.10 | 2.13 | 11.40 | -16.84 | 103.02 | 41.40 | 242.43 | 0.7163 | -558.9 | 74.9 | |
| 0.00 | 1.29 | 0.00 | 0.91 | -16.68 | 102.90 | 41.27 | 242.58 | 0.7142 | -734.0 | -459.1 | |
| 1.03 | 3.01 | 0.74 | 2.17 | -18.40 | 103.25 | 41.63 | 240.56 | 0.7262 | 678.3 | 501.5 | |
| 0.00 | 1.64 | 0.00 | 1.17 | -18.17 | 103.06 | 41.44 | 240.75 | 0.7231 | 554.0 | 542.2 | |
| 13.43 | 22.64 | 9.44 | 15.88 | -17.41 | 102.35 | 40.73 | 241.34 | 0.7118 | 844.4 | 523.4 | |
| 0.00 | 0.43 | 0.00 | 0.31 | -19.83 | 102.98 | 41.36 | 238.62 | 0.7304 | 609.0 | 485.0 | |
| 0.00 | 1.89 | 0.00 | 1.32 | -17.05 | 101.84 | 40.22 | 241.55 | 0.7045 | 886.0 | 771.4 | |
| 0.00 | 1.29 | 0.00 | 0.90 | -17.58 | 101.74 | 40.12 | 240.80 | 0.7060 | 664.0 | 518.3 | |
| 0.00 | 2.32 | 0.00 | 1.60 | -16.71 | 101.31 | 39.69 | 241.70 | 0.6970 | 726.0 | 633.7 | |
| 0.00 | 1.03 | 0.00 | 0.72 | -17.47 | 101.38 | 39.76 | 240.74 | 0.7016 | 610.0 | 571.8 | |
| 0.00 | 0.43 | 0.00 | 0.30 | -18.81 | 100.73 | 39.11 | 238.63 | 0.7017 | -321.0 | -302.6 | |
| 5.08 | 5.51 | 3.52 | 3.82 | -19.25 | 100.53 | 38.91 | 237.95 | 0.7020 | -661.5 | -426.6 | |
| 0.00 | 1.72 | 0.00 | 1.15 | -16.05 | 99.68 | 38.06 | 241.66 | 0.6754 | 568.0 | 470.8 | |
| 0.00 | 0.86 | 0.00 | 0.57 | -15.70 | 99.52 | 37.90 | 242.05 | 0.6718 | -655.0 | -502.9 | |
| 0.00 | 1.72 | 0.00 | 1.16 | -17.22 | 99.80 | 38.17 | 240.16 | 0.6829 | -505.0 | -340.9 | |
| 2.67 | 30.99 | 1.77 | 20.64 | -16.44 | 98.98 | 37.36 | 240.73 | 0.6695 | -575.9 | -119.3 | |
| 8.00 | -20.00 | 5.33 | -20.00 | -16.96 | 98.79 | 37.17 | 239.90 | 0.6703 | -617.0 | 999999 | |
| 1.72 | 1.81 | 1.14 | 1.19 | -16.39 | 98.50 | 36.88 | 240.51 | 0.6638 | -708.2 | -492.0 | |
| 0.00 | 1.46 | 0.00 | 0.97 | -16.64 | 98.56 | 36.94 | 240.20 | 0.6659 | -689.0 | -637.5 | |
| 0.00 | 0.95 | 0.00 | 0.63 | -16.70 | 98.42 | 36.80 | 240.03 | 0.6646 | -650.0 | -566.5 | |
| 0.00 | 0.77 | 0.00 | 0.51 | -16.85 | 98.26 | 36.64 | 239.72 | 0.6637 | -681.0 | -571.9 | |
| 3.62 | 6.54 | 2.37 | 4.29 | -16.37 | 98.08 | 36.45 | 240.26 | 0.6589 | -867.4 | -419.5 | |
| 0.00 | 1.21 | 0.00 | 0.80 | -17.74 | 98.31 | 36.69 | 238.56 | 0.6693 | -380.0 | -389.7 | |
| 3.18 | 53.88 | 2.10 | 35.38 | -17.03 | 97.99 | 36.37 | 239.31 | 0.6617 | -832.2 | -663.2 | |
| 3.96 | 28.75 | 2.64 | 19.13 | -18.53 | 98.11 | 36.49 | 237.38 | 0.6718 | -586.6 | -163.1 | |
| 2.41 | -28.00 | 1.58 | -28.00 | -16.99 | 97.67 | 36.05 | 239.16 | 0.6578 | -1011.3 | 999999 | |
| 3.79 | -29.00 | 2.51 | -29.00 | -18.17 | 97.87 | 36.25 | 237.70 | 0.6670 | -785.9 | 999999 | |
| 6.11 | -28.00 | 4.02 | -28.00 | -17.46 | 97.63 | 36.00 | 238.49 | 0.6601 | -971.3 | 999999 | |
| 3.96 | -28.00 | 2.60 | -28.00 | -17.20 | 97.53 | 35.91 | 238.77 | 0.6575 | -1227.8 | 999999 | |
| 5.77 | -29.00 | 3.83 | -29.00 | -18.48 | 97.79 | 36.17 | 237.22 | 0.6680 | -803.4 | 999999 | |
| 0.00 | 1.12 | 0.00 | 0.74 | -18.18 | 97.29 | 35.67 | 237.30 | 0.6607 | -670.0 | -606.8 | |
| 0.00 | 1.03 | 0.00 | 0.72 | -26.29 | 96.70 | 35.08 | 226.77 | 0.7095 | -390.0 | -388.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
