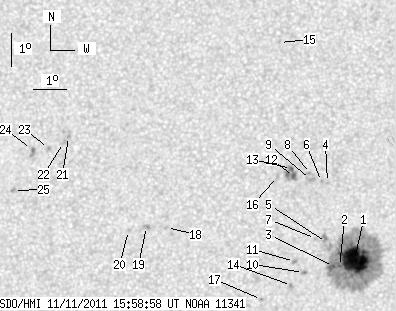

SDO HMI 2011-11-11 15:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 51.21 | 294.14 | 25.61 | 147.29 | 9.80 | 56.27 | -4.80 | 34.86 | 0.1422 | -772.2 | -402.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-11 15:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 44.75 | 234.79 | 22.35 | 117.25 | 9.44 | 57.05 | -4.02 | 32.80 | 0.1284 | -1472.8 | -498.1 | |
| 0.86 | -1.00 | 0.43 | -1.00 | 9.23 | 56.60 | -4.47 | 36.56 | 0.1298 | -906.8 | 999999 | |
| 0.95 | -1.00 | 0.47 | -1.00 | 9.23 | 56.42 | -4.65 | 37.66 | 0.1317 | -832.7 | 999999 | |
| 0.00 | 1.46 | 0.00 | 0.74 | 11.74 | 56.20 | -4.87 | 29.46 | 0.1699 | -888.0 | -654.6 | |
| 0.00 | 7.57 | 0.00 | 3.79 | 9.95 | 56.20 | -4.88 | 35.77 | 0.1439 | -383.0 | -655.0 | |
| 0.00 | 1.20 | 0.00 | 0.61 | 11.77 | 56.02 | -5.06 | 30.28 | 0.1719 | -896.0 | -684.4 | |
| 0.00 | 1.46 | 0.00 | 0.73 | 10.06 | 55.86 | -5.21 | 37.08 | 0.1490 | -748.0 | -519.7 | |
| 0.00 | 2.58 | 0.00 | 1.30 | 12.01 | 55.68 | -5.40 | 31.20 | 0.1784 | -752.0 | -569.7 | |
| 0.00 | 4.48 | 0.00 | 2.25 | 11.83 | 55.68 | -5.39 | 31.72 | 0.1758 | -1028.0 | -709.3 | |
| 0.00 | 1.98 | 0.00 | 0.99 | 9.05 | 55.52 | -5.56 | 43.52 | 0.1395 | -818.0 | -676.7 | |
| 0.00 | 1.89 | 0.00 | 0.95 | 9.38 | 55.24 | -5.83 | 43.31 | 0.1469 | -939.0 | -755.8 | |
| 2.24 | 12.22 | 1.13 | 6.16 | 11.92 | 55.16 | -5.91 | 33.83 | 0.1819 | -595.9 | 369.7 | |
| 1.55 | -12.00 | 0.78 | -12.00 | 12.16 | 55.09 | -5.98 | 33.39 | 0.1859 | 808.1 | 999999 | |
| 0.00 | 2.15 | 0.00 | 1.08 | 8.66 | 55.16 | -5.91 | 47.30 | 0.1392 | 874.0 | 750.6 | |
| 0.00 | 0.77 | 0.00 | 0.40 | 15.96 | 54.62 | -6.45 | 26.18 | 0.2460 | 679.0 | 578.4 | |
| 0.00 | 2.75 | 0.00 | 1.39 | 11.91 | 54.67 | -6.40 | 35.96 | 0.1866 | 436.0 | 335.0 | |
| 0.00 | 1.20 | 0.00 | 0.60 | 8.24 | 54.26 | -6.81 | 53.54 | 0.1466 | 931.0 | 761.7 | |
| 0.00 | 1.29 | 0.00 | 0.65 | 10.36 | 51.33 | -9.75 | 53.33 | 0.2086 | -971.0 | -770.6 | |
| 0.00 | 3.61 | 0.00 | 1.83 | 10.38 | 50.71 | -10.36 | 54.86 | 0.2173 | -958.0 | -735.0 | |
| 0.00 | 1.38 | 0.00 | 0.70 | 10.26 | 50.17 | -10.91 | 56.68 | 0.2239 | -942.0 | -703.6 | |
| 0.00 | 1.29 | 0.00 | 0.67 | 13.06 | 48.19 | -12.89 | 51.78 | 0.2778 | 1080.0 | 832.9 | |
| 0.00 | 2.58 | 0.00 | 1.33 | 12.87 | 48.04 | -13.03 | 52.62 | 0.2779 | 794.0 | 651.2 | |
| 0.00 | 1.81 | 0.00 | 0.93 | 12.69 | 47.58 | -13.49 | 54.08 | 0.2823 | 900.0 | 730.9 | |
| 0.86 | 3.44 | 0.45 | 1.78 | 12.65 | 47.05 | -14.02 | 55.19 | 0.2892 | 930.1 | 838.8 | |
| 0.00 | 2.24 | 0.00 | 1.16 | 11.41 | 46.55 | -14.52 | 59.78 | 0.2857 | 997.0 | 759.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
