SDO HMI 2011-11-11 15:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 55.60 | 327.13 | 31.59 | 186.01 | 27.94 | 44.32 | -16.76 | 31.29 | 0.4927 | -1157.7 | -401.9 | |
|
previous
or next observation for the same group /

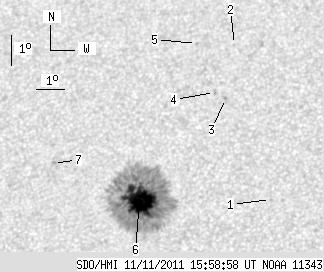

back to the solar disc SDO HMI 2011-11-11 15:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.60 | 0.00 | 0.34 | 27.96 | 48.83 | -12.24 | 24.10 | 0.4606 | -712.0 | -541.4 | |
| 0.00 | 0.60 | 0.00 | 0.35 | 33.12 | 46.83 | -14.24 | 22.43 | 0.5420 | -621.0 | -511.6 | |
| 0.00 | 1.12 | 0.00 | 0.65 | 31.29 | 46.80 | -14.27 | 24.09 | 0.5181 | -879.0 | -764.5 | |
| 0.00 | 1.89 | 0.00 | 1.10 | 31.49 | 46.38 | -14.70 | 24.53 | 0.5233 | -728.0 | -566.8 | |
| 0.00 | 1.03 | 0.00 | 0.61 | 33.14 | 45.44 | -15.64 | 24.31 | 0.5503 | -556.0 | -454.6 | |
| 55.60 | 319.91 | 31.59 | 181.80 | 27.87 | 44.30 | -16.78 | 31.39 | 0.4919 | -1246.1 | -397.2 | |
| 0.00 | 1.98 | 0.00 | 1.16 | 29.03 | 41.03 | -20.05 | 34.42 | 0.5324 | -656.0 | -549.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
