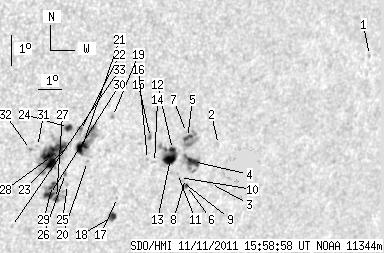

SDO HMI 2011-11-11 15:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 83.22 | 210.16 | 56.81 | 143.92 | -17.39 | 99.99 | 38.92 | 240.29 | 0.6917 | -259.1 | -69.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-11 15:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.12 | 0.00 | 0.90 | -14.58 | 110.38 | 49.31 | 248.61 | 0.7904 | -471.0 | -388.2 | |
| 0.00 | 1.20 | 0.00 | 0.88 | -17.11 | 104.36 | 43.29 | 243.03 | 0.7377 | -510.0 | -343.9 | |
| 0.00 | 1.98 | 0.00 | 1.46 | -18.34 | 104.39 | 43.32 | 241.49 | 0.7434 | 633.0 | 438.1 | |
| 8.86 | 18.93 | 6.40 | 13.66 | -17.60 | 103.40 | 42.33 | 241.93 | 0.7297 | 755.9 | 528.6 | |
| 3.44 | 16.70 | 2.45 | 11.94 | -16.83 | 102.97 | 41.90 | 242.70 | 0.7216 | -542.0 | 28.2 | |
| 1.55 | 2.32 | 1.12 | 1.69 | -18.36 | 103.37 | 42.30 | 240.95 | 0.7330 | 675.6 | 495.4 | |
| 0.00 | 1.29 | 0.00 | 0.92 | -16.67 | 102.88 | 41.81 | 242.87 | 0.7200 | -458.0 | -328.2 | |
| 0.00 | 0.95 | 0.00 | 0.68 | -18.14 | 103.26 | 42.19 | 241.18 | 0.7308 | 688.0 | 589.8 | |
| 0.00 | 0.34 | 0.00 | 0.25 | -18.23 | 103.12 | 42.04 | 240.99 | 0.7297 | 651.0 | 595.2 | |
| 0.00 | 0.77 | 0.00 | 0.56 | -18.10 | 102.99 | 41.92 | 241.10 | 0.7278 | 728.0 | 671.0 | |
| 0.00 | 0.77 | 0.00 | 0.56 | -17.96 | 102.87 | 41.80 | 241.20 | 0.7259 | 394.0 | 477.1 | |
| 2.58 | 25.82 | 1.83 | 18.29 | -17.19 | 102.44 | 41.37 | 241.97 | 0.7176 | 807.9 | 611.6 | |
| 10.07 | -12.00 | 7.15 | -12.00 | -17.47 | 102.44 | 41.37 | 241.61 | 0.7189 | 859.9 | 999999 | |
| 0.00 | 0.95 | 0.00 | 0.67 | -17.57 | 101.80 | 40.73 | 241.14 | 0.7126 | 510.0 | 431.9 | |
| 1.12 | 1.98 | 0.78 | 1.38 | -16.77 | 101.43 | 40.35 | 241.98 | 0.7046 | 690.2 | 743.7 | |
| 0.00 | 0.95 | 0.00 | 0.66 | -17.47 | 101.49 | 40.41 | 241.11 | 0.7087 | 681.0 | 569.7 | |
| 0.00 | 0.77 | 0.00 | 0.54 | -18.64 | 100.58 | 39.51 | 239.09 | 0.7050 | -517.0 | -474.7 | |
| 4.48 | 5.34 | 3.13 | 3.73 | -19.24 | 100.55 | 39.48 | 238.30 | 0.7079 | -634.6 | -514.5 | |
| 0.00 | 1.81 | 0.00 | 1.22 | -16.04 | 99.72 | 38.65 | 242.01 | 0.6820 | 603.0 | 437.2 | |
| 0.00 | 1.12 | 0.00 | 0.76 | -17.44 | 99.06 | 37.99 | 239.77 | 0.6821 | 465.0 | 354.7 | |
| 8.00 | 28.92 | 5.36 | 19.40 | -17.01 | 98.72 | 37.65 | 240.13 | 0.6760 | -645.5 | -191.4 | |
| 0.00 | 3.53 | 0.00 | 2.35 | -16.44 | 98.55 | 37.48 | 240.80 | 0.6709 | -826.0 | -699.2 | |
| 0.00 | 1.03 | 0.00 | 0.69 | -16.84 | 98.25 | 37.18 | 240.08 | 0.6697 | -681.0 | -533.0 | |
| 2.93 | 4.73 | 1.94 | 3.13 | -16.33 | 98.06 | 36.99 | 240.65 | 0.6647 | -821.7 | -709.7 | |
| 0.00 | 0.69 | 0.00 | 0.46 | -18.14 | 98.45 | 37.38 | 238.45 | 0.6793 | -381.0 | -346.5 | |
| 0.00 | 1.81 | 0.00 | 1.21 | -17.79 | 98.28 | 37.21 | 238.82 | 0.6754 | -577.0 | -392.8 | |
| 2.75 | 24.27 | 1.85 | 16.25 | -18.58 | 98.13 | 37.05 | 237.68 | 0.6783 | -578.5 | -421.0 | |
| 29.35 | 57.06 | 19.40 | 37.71 | -17.20 | 97.64 | 36.56 | 239.21 | 0.6648 | -968.1 | -397.7 | |
| 3.36 | -27.00 | 2.24 | -27.00 | -18.15 | 97.86 | 36.79 | 238.07 | 0.6729 | -799.7 | 999999 | |
| 4.73 | -27.00 | 3.16 | -27.00 | -18.44 | 97.82 | 36.75 | 237.66 | 0.6741 | -807.0 | 999999 | |
| 0.00 | 0.43 | 0.00 | 0.28 | -16.89 | 96.99 | 35.91 | 239.21 | 0.6557 | -752.0 | -671.8 | |
| 0.00 | 1.46 | 0.00 | 0.95 | -16.97 | 96.74 | 35.67 | 238.93 | 0.6534 | -872.0 | -709.3 | |
| 0.00 | 1.12 | 0.00 | 0.74 | -19.42 | 96.59 | 35.51 | 235.54 | 0.6667 | -412.0 | -353.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
