SDO HMI 2011-11-11 16:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 71.00 | 301.82 | 69.37 | 303.06 | -14.78 | 118.32 | 57.80 | 250.45 | 0.8643 | 596.9 | 199.9 | |
|
previous
or next observation for the same group /

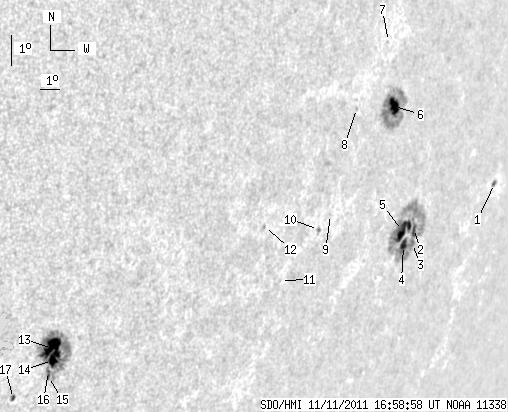

back to the solar disc SDO HMI 2011-11-11 16:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.64 | 2.50 | 2.40 | 3.66 | -13.86 | 129.29 | 68.76 | 254.01 | 0.9429 | 339.3 | 347.6 | |
| 2.75 | 124.36 | 3.25 | 144.76 | -14.95 | 123.75 | 63.23 | 251.86 | 0.9095 | 114.1 | 167.6 | |
| 2.58 | -2.00 | 3.08 | -2.00 | -15.43 | 123.94 | 63.42 | 251.39 | 0.9114 | -397.5 | 999999 | |
| 6.37 | -2.00 | 7.43 | -2.00 | -15.46 | 123.34 | 62.82 | 251.23 | 0.9073 | 394.8 | 999999 | |
| 15.92 | -2.00 | 18.34 | -2.00 | -14.98 | 123.01 | 62.49 | 251.69 | 0.9044 | 755.1 | 999999 | |
| 10.93 | 70.83 | 11.40 | 73.87 | -11.05 | 120.82 | 60.30 | 255.58 | 0.8822 | 792.7 | 226.6 | |
| 0.00 | 0.86 | 0.00 | 0.86 | -9.02 | 119.83 | 59.31 | 257.68 | 0.8713 | 523.0 | 424.0 | |
| 0.00 | 1.20 | 0.00 | 1.18 | -10.99 | 118.54 | 58.02 | 255.19 | 0.8633 | 391.0 | 360.9 | |
| 0.00 | 0.86 | 0.00 | 0.85 | -14.24 | 118.21 | 57.69 | 251.43 | 0.8662 | -590.0 | -466.5 | |
| 0.34 | 2.75 | 0.34 | 2.68 | -14.67 | 117.70 | 57.18 | 250.81 | 0.8628 | -518.5 | -294.2 | |
| 0.00 | 0.52 | 0.00 | 0.49 | -16.19 | 116.20 | 55.68 | 248.69 | 0.8535 | -365.0 | -323.8 | |
| 0.00 | 1.29 | 0.00 | 1.16 | -14.43 | 114.65 | 54.13 | 250.28 | 0.8358 | -532.0 | -390.8 | |
| 20.40 | 94.58 | 15.47 | 72.00 | -17.85 | 105.64 | 45.12 | 242.95 | 0.7597 | 984.6 | 280.2 | |
| 5.77 | -13.00 | 4.40 | -13.00 | -18.23 | 105.77 | 45.25 | 242.53 | 0.7625 | 813.5 | 999999 | |
| 1.38 | -13.00 | 1.05 | -13.00 | -18.74 | 105.76 | 45.24 | 241.90 | 0.7646 | 395.9 | 999999 | |
| 1.03 | -13.00 | 0.79 | -13.00 | -18.58 | 105.71 | 45.19 | 242.08 | 0.7634 | 620.2 | 999999 | |
| 1.89 | 2.07 | 1.42 | 1.55 | -19.39 | 104.44 | 43.91 | 240.49 | 0.7541 | 537.0 | 504.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
