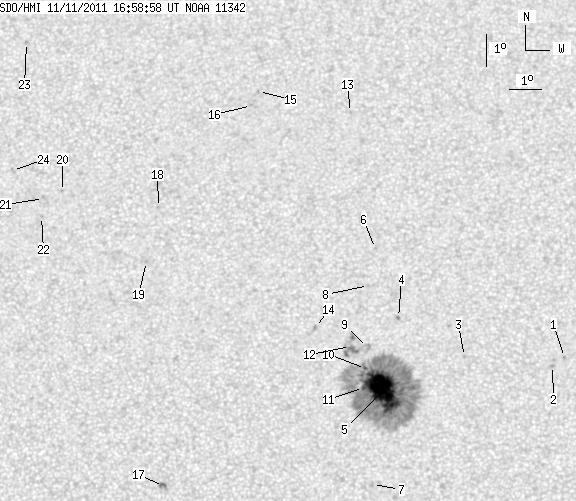

SDO HMI 2011-11-11 16:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 65.32 | 428.30 | 33.26 | 218.39 | 16.28 | 64.48 | 3.96 | 343.28 | 0.2374 | -946.6 | -443.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-11 16:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.12 | 0.00 | 0.58 | 16.93 | 70.53 | 10.01 | 324.93 | 0.2907 | -933.0 | -731.8 | |
| 0.00 | 1.98 | 0.00 | 1.02 | 16.69 | 70.14 | 9.62 | 325.48 | 0.2837 | -947.0 | -785.2 | |
| 0.00 | 1.12 | 0.00 | 0.57 | 16.99 | 67.40 | 6.87 | 334.25 | 0.2647 | -836.0 | -572.2 | |
| 0.00 | 1.20 | 0.00 | 0.62 | 18.20 | 65.37 | 4.85 | 342.68 | 0.2710 | 881.0 | 783.9 | |
| 63.17 | 381.59 | 32.16 | 194.28 | 15.97 | 64.82 | 4.30 | 341.85 | 0.2323 | -1444.2 | -464.7 | |
| 0.00 | 1.12 | 0.00 | 0.58 | 20.33 | 64.71 | 4.18 | 346.87 | 0.3025 | -727.0 | -531.7 | |
| 0.00 | 1.46 | 0.00 | 0.74 | 13.13 | 64.46 | 3.94 | 338.65 | 0.1845 | -956.0 | -745.3 | |
| 0.00 | 1.20 | 0.00 | 0.62 | 19.18 | 64.45 | 3.93 | 346.70 | 0.2829 | -710.0 | -565.8 | |
| 0.00 | 3.70 | 0.00 | 1.89 | 17.28 | 64.38 | 3.86 | 345.13 | 0.2515 | -549.0 | -475.0 | |
| 0.86 | -5.00 | 0.44 | -5.00 | 16.64 | 64.31 | 3.78 | 344.70 | 0.2407 | -778.4 | 999999 | |
| 1.29 | -5.00 | 0.66 | -5.00 | 16.06 | 64.23 | 3.71 | 344.30 | 0.2309 | -891.1 | 999999 | |
| 0.00 | 15.06 | 0.00 | 7.70 | 17.31 | 63.85 | 3.33 | 347.12 | 0.2499 | -811.0 | -778.6 | |
| 0.00 | 1.03 | 0.00 | 0.55 | 24.61 | 64.02 | 3.50 | 351.33 | 0.3695 | -700.0 | -491.4 | |
| 0.00 | 2.15 | 0.00 | 1.10 | 17.90 | 62.77 | 2.25 | 351.58 | 0.2563 | -855.0 | -635.3 | |
| 0.00 | 1.20 | 0.00 | 0.64 | 25.28 | 61.02 | 0.50 | 358.80 | 0.3763 | -730.0 | -599.3 | |
| 0.00 | 1.29 | 0.00 | 0.69 | 24.83 | 60.79 | 0.27 | 359.34 | 0.3690 | -658.0 | -571.4 | |
| 0.00 | 3.96 | 0.00 | 1.99 | 13.07 | 58.09 | -2.43 | 13.66 | 0.1758 | 718.0 | 880.1 | |
| 0.00 | 1.12 | 0.00 | 0.58 | 21.61 | 57.81 | -2.71 | 7.95 | 0.3190 | 802.0 | 594.7 | |
| 0.00 | 0.86 | 0.00 | 0.45 | 19.93 | 57.46 | -3.06 | 9.92 | 0.2922 | 994.0 | 802.0 | |
| 0.00 | 1.29 | 0.00 | 0.68 | 22.10 | 54.72 | -5.80 | 16.17 | 0.3376 | 606.0 | 510.3 | |
| 0.00 | 1.12 | 0.00 | 0.59 | 21.88 | 54.12 | -6.40 | 17.96 | 0.3370 | 514.0 | 521.0 | |
| 0.00 | 1.20 | 0.00 | 0.63 | 21.31 | 54.08 | -6.44 | 18.64 | 0.3284 | 844.0 | 697.7 | |
| 0.00 | 1.38 | 0.00 | 0.75 | 26.84 | 53.29 | -7.23 | 15.68 | 0.4172 | -769.0 | -613.1 | |
| 0.00 | 2.15 | 0.00 | 1.14 | 22.75 | 53.08 | -7.45 | 19.71 | 0.3560 | 668.0 | 533.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
