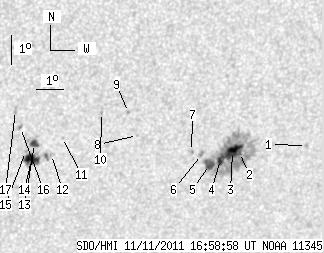

SDO HMI 2011-11-11 16:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 43.04 | 161.86 | 27.06 | 102.89 | -25.39 | 87.18 | 26.66 | 220.35 | 0.6267 | 125.4 | 140.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-11 16:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.64 | 0.00 | 1.08 | -25.22 | 91.67 | 31.15 | 224.89 | 0.6654 | -748.0 | -585.6 | |
| 1.12 | 120.31 | 0.72 | 77.54 | -25.38 | 89.17 | 28.65 | 222.47 | 0.6439 | 496.4 | 266.4 | |
| 12.82 | -2.00 | 8.26 | -2.00 | -25.33 | 88.90 | 28.38 | 222.26 | 0.6411 | 1051.3 | 999999 | |
| 4.91 | -2.00 | 3.15 | -2.00 | -25.59 | 88.52 | 28.00 | 221.60 | 0.6400 | 1028.7 | 999999 | |
| 7.75 | -2.00 | 4.97 | -2.00 | -25.75 | 88.15 | 27.63 | 221.06 | 0.6382 | 830.4 | 999999 | |
| 0.00 | 1.89 | 0.00 | 1.21 | -25.40 | 87.76 | 27.24 | 221.08 | 0.6315 | 889.0 | 766.2 | |
| 0.00 | 1.55 | 0.00 | 0.98 | -25.29 | 87.37 | 26.85 | 220.82 | 0.6270 | 858.0 | 701.0 | |
| 0.00 | 0.86 | 0.00 | 0.53 | -24.70 | 85.27 | 24.75 | 219.32 | 0.6025 | -553.0 | -444.3 | |
| 0.00 | 1.12 | 0.00 | 0.68 | -23.91 | 84.78 | 24.26 | 219.70 | 0.5903 | 799.0 | 521.2 | |
| 0.00 | 1.03 | 0.00 | 0.63 | -23.89 | 83.82 | 23.30 | 218.63 | 0.5814 | -607.0 | -507.5 | |
| 0.00 | 1.03 | 0.00 | 0.63 | -24.70 | 82.60 | 22.07 | 216.27 | 0.5794 | -283.0 | -400.0 | |
| 0.00 | 1.20 | 0.00 | 0.73 | -25.26 | 82.31 | 21.79 | 215.30 | 0.5833 | -647.0 | -517.4 | |
| 4.48 | 6.54 | 2.70 | 3.95 | -24.88 | 81.64 | 21.12 | 214.91 | 0.5735 | -944.6 | -706.2 | |
| 11.96 | 19.79 | 7.26 | 12.01 | -25.42 | 81.64 | 21.12 | 214.31 | 0.5795 | -883.6 | -567.6 | |
| 0.00 | 1.03 | 0.00 | 0.62 | -25.14 | 81.38 | 20.85 | 214.29 | 0.5743 | -722.0 | -756.5 | |
| 0.00 | 1.46 | 0.00 | 0.87 | -24.33 | 81.06 | 20.54 | 214.78 | 0.5625 | -876.0 | -738.1 | |
| 0.00 | 2.41 | 0.00 | 1.43 | -23.76 | 80.79 | 20.27 | 215.09 | 0.5538 | -780.0 | -608.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
