Sunspot Group 11339

group	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP

11339	205.26	1263.25	152.86	927.16	19.23	105.83	45.86	293.35	0.7394	-447.3	-288.7

previous or next observation for the same group / back to the solar disc

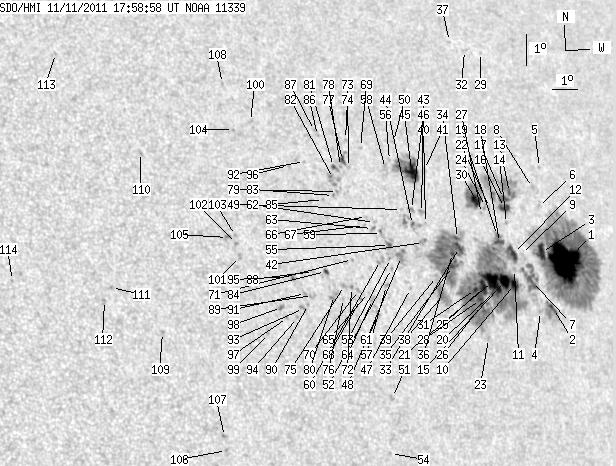

SDO HMI 2011-11-11 17:58:58 UT
No observation available

See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)

spot	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP

1	72.63	407.92	56.24	316.59	18.88	108.86	48.89	291.96	0.7710	-997.9	-168.5
2	2.67	16.87	2.01	12.69	17.50	107.78	47.81	290.46	0.7565	-608.4	-521.5
3	10.07	-1.00	7.66	-1.00	19.23	107.86	47.89	292.67	0.7614	-879.3	999999
4	0.00	1.81	0.00	1.35	17.44	107.16	47.19	290.52	0.7496	-540.0	-370.4
5	0.00	1.03	0.00	0.81	21.85	108.87	48.91	295.70	0.7786	-419.0	-299.9
6	0.00	0.95	0.00	0.73	20.65	108.29	48.32	294.36	0.7695	-366.0	-353.9
7	7.75	32.87	5.79	24.56	18.36	107.11	47.14	291.75	0.7514	-780.2	-634.2
8	0.00	1.72	0.00	1.33	21.25	108.26	48.29	295.13	0.7708	287.0	293.9
9	0.00	1.12	0.00	0.84	19.24	106.93	46.96	292.94	0.7516	-344.0	-289.8
10	4.39	348.28	3.23	252.00	18.30	106.27	46.30	291.91	0.7421	-802.2	-521.5
11	0.00	1.64	0.00	1.21	18.76	106.43	46.46	292.46	0.7451	-334.0	-247.2
12	6.45	-10.00	4.80	-10.00	19.25	106.56	46.59	293.07	0.7478	-743.5	999999
13	2.32	63.94	1.76	48.12	21.14	107.12	47.15	295.33	0.7589	-481.7	-205.8
14	0.00	1.12	0.00	0.84	20.19	106.60	46.63	294.27	0.7507	-652.0	-509.2
15	10.15	-10.00	7.43	-10.00	18.41	105.85	45.88	292.17	0.7379	-1007.4	999999
16	5.94	-13.00	4.45	-13.00	20.68	106.70	46.73	294.88	0.7533	-756.7	999999
17	5.77	-13.00	4.33	-13.00	20.96	106.77	46.80	295.22	0.7548	-721.9	999999
18	4.30	-10.00	3.17	-10.00	19.62	106.06	46.09	293.69	0.7434	-807.6	999999
19	1.55	-10.00	1.14	-10.00	19.84	106.05	46.08	293.98	0.7439	-633.4	999999
20	0.95	-10.00	0.68	-10.00	18.13	105.31	45.34	291.94	0.7311	-978.0	999999
21	18.42	-10.00	13.34	-10.00	18.43	105.32	45.35	292.35	0.7321	-1046.2	999999
22	0.00	0.77	0.00	0.57	20.71	106.02	46.05	295.13	0.7462	-490.0	-441.9
23	0.00	1.55	0.00	1.10	16.71	104.59	44.63	290.23	0.7194	-421.0	-277.0
24	0.00	1.72	0.00	1.27	20.75	105.85	45.88	295.24	0.7445	-581.0	-576.5
25	6.88	-10.00	4.95	-10.00	18.27	104.86	44.90	292.27	0.7266	-1027.4	999999
26	1.55	-10.00	1.11	-10.00	17.72	104.60	44.63	291.61	0.7221	-958.2	999999
27	0.00	0.69	0.00	0.51	20.54	105.59	45.62	295.05	0.7411	-712.0	-631.2
28	2.58	-10.00	1.84	-10.00	17.91	104.61	44.65	291.85	0.7228	-1107.1	999999
29	0.00	0.34	0.00	0.27	25.57	107.83	47.86	300.65	0.7798	-292.0	-306.5
30	7.14	32.36	5.25	23.79	20.95	105.52	45.55	295.61	0.7416	-1006.9	-501.4
31	1.81	-10.00	1.29	-10.00	18.22	104.50	44.53	292.31	0.7224	-1100.0	999999
32	0.00	2.07	0.00	1.61	25.67	107.10	47.13	301.03	0.7732	-508.0	-446.5
33	4.65	111.19	3.32	78.63	19.53	104.23	44.26	294.16	0.7233	-836.3	-631.9
34	1.55	-33.00	1.11	-33.00	19.81	104.24	44.27	294.54	0.7243	-353.2	999999
35	2.50	-33.00	1.76	-33.00	18.96	103.73	43.76	293.56	0.7160	-1037.6	999999
36	1.72	-33.00	1.22	-33.00	19.36	103.87	43.90	294.06	0.7187	-1007.8	999999
37	0.00	0.95	0.00	0.73	25.98	106.54	46.57	301.63	0.7689	-443.0	-380.0
38	0.00	19.10	0.00	13.32	18.12	103.07	43.11	292.63	0.7060	-662.0	-562.6
39	0.00	2.07	0.00	1.44	18.68	102.95	42.98	293.45	0.7063	-445.0	-458.7
40	0.00	0.86	0.00	0.61	20.33	103.02	43.05	295.66	0.7126	222.0	147.4
41	0.00	1.03	0.00	0.74	22.00	103.59	43.62	297.68	0.7247	-529.0	-426.1
42	0.00	4.13	0.00	2.88	19.74	102.74	42.77	294.98	0.7074	263.0	172.7
43	0.00	3.01	0.00	2.12	20.67	102.97	43.00	296.15	0.7132	439.0	326.1
44	1.12	12.82	0.78	8.93	20.32	102.45	42.49	295.86	0.7062	417.5	362.5
45	12.65	46.39	8.98	32.85	21.99	103.01	43.04	297.90	0.7185	-950.5	-608.3
46	0.00	2.93	0.00	2.05	20.78	102.57	42.60	296.45	0.7092	526.0	409.4
47	0.00	0.95	0.00	0.65	18.35	101.74	41.77	293.42	0.6914	368.0	263.1
48	0.00	10.33	0.00	7.08	19.35	101.67	41.70	294.83	0.6939	-361.0	-322.5
49	0.00	0.86	0.00	0.60	20.80	102.15	42.18	296.64	0.7046	568.0	433.6
50	0.00	1.20	0.00	0.85	22.92	102.58	42.61	299.31	0.7175	-473.0	-317.8
51	0.00	2.07	0.00	1.36	15.07	100.14	40.17	289.23	0.6621	457.0	425.8
52	0.00	1.46	0.00	0.99	19.00	101.14	41.17	294.54	0.6866	284.0	189.4
53	0.00	1.55	0.00	1.05	19.30	101.19	41.22	294.95	0.6883	230.0	144.8
54	0.00	1.12	0.00	0.73	13.39	99.70	39.73	286.85	0.6521	561.0	431.6
55	1.64	6.88	1.12	4.70	19.71	101.28	41.31	295.48	0.6907	-340.2	-174.9
56	0.00	0.77	0.00	0.54	22.34	102.18	42.21	298.70	0.7109	-284.0	-297.7
57	0.00	1.55	0.00	1.04	18.48	100.78	40.81	293.96	0.6806	577.0	455.3
58	0.00	4.22	0.00	2.94	22.09	101.92	41.95	298.48	0.7070	-420.0	-423.2
59	0.00	3.44	0.00	2.35	20.09	101.06	41.09	296.10	0.6897	206.0	205.8
60	0.00	3.96	0.00	2.68	19.26	100.76	40.79	295.06	0.6832	315.0	432.5
61	0.00	2.24	0.00	1.49	17.61	100.21	40.24	292.92	0.6708	429.0	441.3
62	0.00	1.81	0.00	1.23	20.44	100.88	40.91	296.66	0.6890	243.0	48.5
63	0.00	2.07	0.00	1.40	20.25	100.74	40.77	296.46	0.6867	628.0	499.1
64	0.00	3.01	0.00	2.01	18.08	100.09	40.12	293.64	0.6710	569.0	442.9
65	0.00	0.69	0.00	0.46	18.29	99.98	40.02	294.00	0.6706	512.0	440.4
66	0.00	0.86	0.00	0.58	20.63	100.61	40.64	297.04	0.6867	399.0	265.3
67	0.00	1.20	0.00	0.82	20.36	100.43	40.47	296.73	0.6836	702.0	576.3
68	0.00	1.64	0.00	1.08	18.09	99.60	39.63	293.85	0.6653	614.0	558.7
69	0.00	1.20	0.00	0.83	22.79	101.10	41.13	299.77	0.7010	426.0	279.1
70	0.00	1.46	0.00	0.97	18.37	99.60	39.63	294.26	0.6663	751.0	577.4
71	0.00	0.95	0.00	0.63	19.33	99.62	39.66	295.63	0.6702	655.0	503.8
72	0.00	1.38	0.00	0.91	18.47	99.34	39.37	294.51	0.6636	772.0	692.2
73	0.00	1.38	0.00	0.94	22.18	100.37	40.40	299.28	0.6905	240.0	164.6
74	0.00	1.03	0.00	0.71	23.06	100.56	40.59	300.39	0.6963	440.0	357.2
75	0.00	2.32	0.00	1.53	18.54	99.08	39.11	294.72	0.6607	763.0	625.7
76	0.00	1.20	0.00	0.79	18.15	98.93	38.96	294.21	0.6574	606.0	475.6
77	2.41	5.68	1.64	3.88	22.41	100.20	40.23	299.67	0.6895	548.7	383.8
78	0.00	1.20	0.00	0.82	22.22	100.05	40.08	299.49	0.6871	461.0	412.4
79	0.00	1.29	0.00	0.87	21.45	99.66	39.69	298.60	0.6794	641.0	541.1
80	0.00	6.20	0.00	4.05	18.25	98.60	38.63	294.50	0.6538	546.0	451.3
81	1.81	3.36	1.22	2.27	22.24	99.76	39.79	299.64	0.6839	587.1	331.9
82	0.00	8.52	0.00	5.74	21.86	99.63	39.66	299.18	0.6809	404.0	431.8
83	0.00	1.03	0.00	0.69	21.33	99.46	39.49	298.53	0.6766	812.0	690.3
84	1.89	1.89	1.24	1.24	19.00	98.44	38.47	295.66	0.6549	737.9	522.0
85	0.00	0.95	0.00	0.63	21.22	99.01	39.04	298.59	0.6710	766.0	607.7
86	0.00	1.20	0.00	0.82	23.23	99.44	39.47	301.16	0.6849	631.0	526.7
87	0.00	1.03	0.00	0.70	23.39	99.37	39.40	301.41	0.6849	687.0	493.9
88	0.00	0.60	0.00	0.39	19.01	97.96	37.99	295.90	0.6493	679.0	615.0
89	0.00	3.01	0.00	1.94	18.28	97.73	37.76	294.92	0.6434	451.0	542.7
90	0.00	1.20	0.00	0.77	18.01	97.50	37.53	294.62	0.6396	717.0	553.9
91	0.00	1.72	0.00	1.11	18.35	97.47	37.50	295.14	0.6406	733.0	658.8
92	0.00	1.12	0.00	0.75	22.43	98.62	38.65	300.47	0.6722	541.0	462.2
93	0.00	2.75	0.00	1.76	17.90	97.27	37.30	294.55	0.6364	575.0	604.0
94	0.00	0.95	0.00	0.60	17.63	96.97	37.00	294.28	0.6316	672.0	553.6
95	0.00	2.67	0.00	1.71	18.89	97.13	37.16	296.10	0.6388	817.0	635.1
96	0.00	1.20	0.00	0.80	22.33	97.93	37.96	300.68	0.6639	599.0	443.9
97	0.00	1.29	0.00	0.82	17.64	96.59	36.62	294.48	0.6268	716.0	585.6
98	0.00	3.01	0.00	1.91	17.95	96.43	36.46	295.03	0.6262	963.0	634.3
99	0.00	1.46	0.00	0.92	17.18	95.75	35.78	294.15	0.6144	703.0	515.8
100	0.00	1.46	0.00	0.96	23.76	96.85	36.88	303.26	0.6593	568.0	414.4
101	0.00	2.50	0.00	1.57	19.57	95.24	35.27	298.09	0.6190	853.0	618.9
102	0.00	1.29	0.00	0.81	19.98	95.19	35.22	298.73	0.6204	852.0	724.9
103	0.00	0.95	0.00	0.60	20.22	95.21	35.24	299.09	0.6219	650.0	493.3
104	0.00	0.60	0.00	0.39	23.53	96.09	36.12	303.38	0.6496	648.0	526.7
105	0.00	3.53	0.00	2.22	20.17	94.89	34.92	299.19	0.6178	661.0	599.0
106	0.00	1.12	0.00	0.67	13.69	93.50	33.53	289.48	0.5715	843.0	673.8
107	0.00	1.29	0.00	0.78	14.11	93.50	33.53	290.20	0.5730	847.0	705.1
108	0.00	1.46	0.00	0.96	25.00	96.13	36.16	305.40	0.6584	353.0	309.3
109	0.00	1.38	0.00	0.83	17.33	91.81	31.84	296.49	0.5648	668.0	558.6
110	0.00	1.64	0.00	1.01	22.92	92.27	32.30	304.96	0.6029	522.0	489.9
111	0.00	1.20	0.00	0.71	18.76	90.23	30.26	299.89	0.5525	812.0	683.6
112	0.00	1.38	0.00	0.81	18.37	89.90	29.93	299.46	0.5460	811.0	563.4
113	0.00	0.95	0.00	0.58	26.15	89.92	29.95	311.43	0.6000	632.0	534.8
114	0.00	1.12	0.00	0.64	19.07	86.75	26.78	303.12	0.5105	656.0	406.8

	Proj. U	- Projected umbra area in millionths of solar disc, negative values indicate
	that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
	Proj. WS	- Projected whole spot area in millionths of solar disc, negative values indicate
	that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7.
	Corr. U	- Corrected umbra area in millionths of solar hemisphere, for negative values see above
	Corr. WS	- Corrected whole spot area in millionths of solar hemisphere, for negative values see above
	B	- Heliographic latitude B; positive: North, negative: South
	L	- Heliographic longitude L
	LCM	- Longitudinal distance from the Sun's central meridian
	Pos. angle	- Position angle
	r	- Distance from the centre of Sun's disc in terms of Sun's radius
	MU	- Mean magnetic field within the umbra contour averaged the pixel values with sign.
	MP	- Mean magnetic field within the penumbra contour averaged the pixel values with sign.
