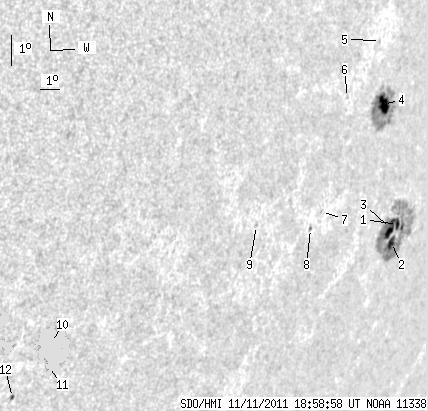

SDO HMI 2011-11-11 18:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 45.45 | 289.66 | 46.29 | 297.99 | -14.75 | 117.94 | 58.52 | 250.67 | 0.8699 | 652.3 | 196.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-11 18:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.36 | 116.09 | 4.08 | 140.96 | -14.87 | 123.45 | 64.03 | 252.11 | 0.9148 | 410.3 | 148.7 | |
| 5.59 | -1.00 | 6.79 | -1.00 | -15.43 | 123.33 | 63.91 | 251.49 | 0.9147 | 403.9 | 999999 | |
| 8.35 | -1.00 | 9.99 | -1.00 | -14.98 | 123.01 | 63.59 | 251.91 | 0.9120 | 777.9 | 999999 | |
| 11.02 | 68.50 | 11.91 | 74.16 | -11.04 | 120.78 | 61.36 | 255.79 | 0.8905 | 761.1 | 199.6 | |
| 0.00 | 0.34 | 0.00 | 0.36 | -9.06 | 119.95 | 60.53 | 257.86 | 0.8814 | 437.0 | 412.2 | |
| 0.00 | 1.38 | 0.00 | 1.38 | -10.71 | 118.46 | 59.04 | 255.72 | 0.8715 | 488.0 | 398.7 | |
| 0.00 | 0.86 | 0.00 | 0.87 | -14.20 | 118.21 | 58.79 | 251.73 | 0.8751 | -477.0 | -424.2 | |
| 1.12 | 1.89 | 1.13 | 1.90 | -14.71 | 117.77 | 58.35 | 251.07 | 0.8725 | -252.6 | -250.3 | |
| 0.00 | 0.86 | 0.00 | 0.79 | -14.46 | 114.62 | 55.21 | 250.55 | 0.8455 | -552.0 | -439.1 | |
| 14.72 | 97.93 | 11.39 | 76.18 | -17.71 | 105.70 | 46.29 | 243.63 | 0.7709 | 997.5 | 293.9 | |
| 0.69 | -10.00 | 0.54 | -10.00 | -18.48 | 105.83 | 46.42 | 242.75 | 0.7751 | 624.4 | 999999 | |
| 0.60 | 1.81 | 0.46 | 1.39 | -19.41 | 104.54 | 45.12 | 241.04 | 0.7662 | 613.7 | 503.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
