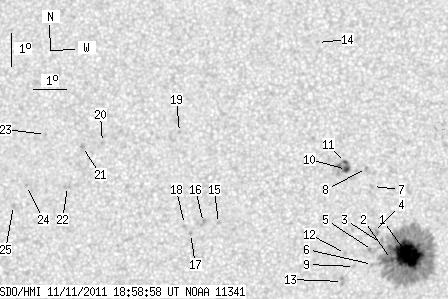

SDO HMI 2011-11-11 18:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 47.25 | 292.94 | 23.57 | 146.34 | 9.73 | 56.33 | -3.09 | 23.49 | 0.1271 | -759.1 | -399.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-11 18:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 42.00 | 237.26 | 20.94 | 118.29 | 9.44 | 57.08 | -2.34 | 20.54 | 0.1152 | -1521.3 | -502.7 | |
| 1.55 | -1.00 | 0.77 | -1.00 | 9.29 | 56.60 | -2.82 | 24.84 | 0.1160 | -922.9 | 999999 | |
| 0.00 | 3.61 | 0.00 | 1.80 | 9.77 | 56.29 | -3.12 | 25.40 | 0.1258 | -828.0 | -647.2 | |
| 0.00 | 6.80 | 0.00 | 3.40 | 10.10 | 56.05 | -3.37 | 25.96 | 0.1327 | -275.0 | -474.0 | |
| 0.00 | 3.44 | 0.00 | 1.72 | 9.56 | 56.02 | -3.39 | 28.06 | 0.1246 | -513.0 | -570.5 | |
| 0.00 | 1.38 | 0.00 | 0.69 | 9.14 | 56.03 | -3.39 | 29.72 | 0.1182 | -745.0 | -543.1 | |
| 0.00 | 2.15 | 0.00 | 1.08 | 11.47 | 56.00 | -3.41 | 22.26 | 0.1548 | -809.0 | -628.8 | |
| 0.00 | 1.20 | 0.00 | 0.60 | 12.01 | 55.81 | -3.60 | 22.03 | 0.1646 | -794.0 | -713.8 | |
| 0.00 | 0.69 | 0.00 | 0.34 | 9.08 | 55.49 | -3.93 | 33.77 | 0.1223 | -844.0 | -629.5 | |
| 2.15 | 13.43 | 1.08 | 6.75 | 11.98 | 55.21 | -4.21 | 25.38 | 0.1683 | -680.6 | 396.5 | |
| 1.55 | -10.00 | 0.78 | -10.00 | 12.19 | 55.17 | -4.24 | 25.01 | 0.1718 | 781.7 | 999999 | |
| 0.00 | 1.38 | 0.00 | 0.69 | 9.47 | 55.21 | -4.20 | 33.83 | 0.1305 | -836.0 | -620.8 | |
| 0.00 | 3.36 | 0.00 | 1.67 | 8.63 | 55.13 | -4.29 | 38.34 | 0.1197 | 891.0 | 753.2 | |
| 0.00 | 1.03 | 0.00 | 0.53 | 15.81 | 54.24 | -5.18 | 21.80 | 0.2349 | 830.0 | 636.7 | |
| 0.00 | 1.29 | 0.00 | 0.65 | 10.34 | 51.35 | -8.07 | 48.20 | 0.1861 | -1012.0 | -830.2 | |
| 0.00 | 2.58 | 0.00 | 1.30 | 10.37 | 50.89 | -8.53 | 49.63 | 0.1923 | -893.0 | -686.6 | |
| 0.00 | 1.20 | 0.00 | 0.61 | 10.03 | 50.50 | -8.91 | 52.22 | 0.1939 | -912.0 | -719.9 | |
| 0.00 | 0.86 | 0.00 | 0.43 | 10.30 | 50.31 | -9.10 | 51.70 | 0.1993 | -486.0 | -492.1 | |
| 0.00 | 0.69 | 0.00 | 0.35 | 13.06 | 50.07 | -9.35 | 42.86 | 0.2337 | 801.0 | 669.5 | |
| 0.00 | 1.29 | 0.00 | 0.66 | 12.73 | 47.70 | -11.72 | 50.15 | 0.2592 | 901.0 | 686.2 | |
| 0.00 | 2.32 | 0.00 | 1.19 | 12.60 | 47.08 | -12.33 | 51.93 | 0.2660 | 1123.0 | 828.1 | |
| 0.00 | 2.67 | 0.00 | 1.37 | 11.40 | 46.67 | -12.74 | 56.60 | 0.2602 | 645.0 | 642.2 | |
| 0.00 | 0.86 | 0.00 | 0.44 | 12.95 | 45.91 | -13.51 | 53.32 | 0.2851 | 902.0 | 678.9 | |
| 0.00 | 0.95 | 0.00 | 0.49 | 11.41 | 45.40 | -14.02 | 58.92 | 0.2785 | 789.0 | 647.5 | |
| 0.00 | 2.50 | 0.00 | 1.29 | 10.81 | 45.02 | -14.39 | 61.47 | 0.2792 | 926.0 | 614.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
