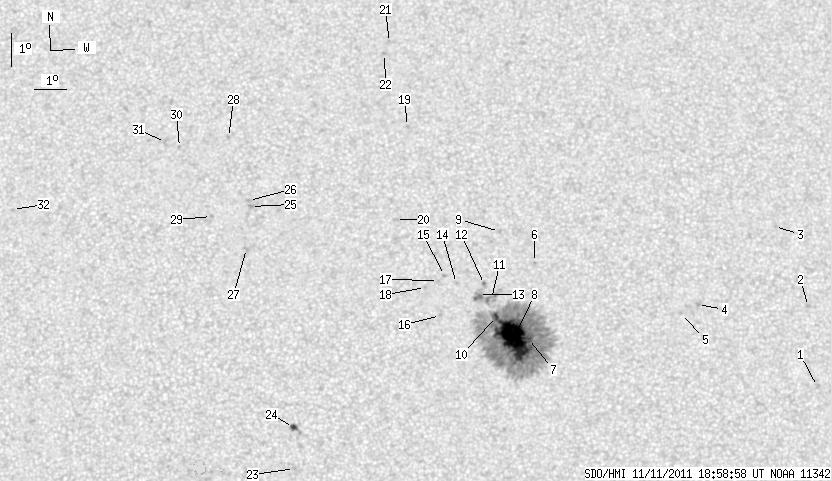

SDO HMI 2011-11-11 18:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 71.78 | 466.36 | 36.58 | 238.21 | 16.27 | 64.37 | 4.95 | 339.68 | 0.2437 | -852.0 | -416.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-11 18:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.58 | 0.00 | 1.35 | 14.41 | 74.19 | 14.78 | 308.27 | 0.3161 | -426.0 | -443.9 | |
| 0.00 | 1.89 | 0.00 | 1.00 | 16.84 | 74.09 | 14.67 | 314.27 | 0.3400 | -872.0 | -701.6 | |
| 0.00 | 0.69 | 0.00 | 0.37 | 19.31 | 73.20 | 13.78 | 321.01 | 0.3589 | -730.0 | -622.0 | |
| 0.00 | 1.38 | 0.00 | 0.72 | 16.95 | 70.56 | 11.15 | 322.07 | 0.3022 | -922.0 | -741.9 | |
| 0.00 | 1.12 | 0.00 | 0.58 | 16.68 | 70.04 | 10.63 | 322.79 | 0.2934 | -828.0 | -666.8 | |
| 0.00 | 0.95 | 0.00 | 0.49 | 18.28 | 65.49 | 6.08 | 338.79 | 0.2792 | 883.0 | 626.5 | |
| 1.98 | 402.75 | 1.01 | 205.38 | 15.96 | 65.23 | 5.82 | 336.08 | 0.2415 | -971.3 | -450.9 | |
| 64.29 | -7.00 | 32.78 | -7.00 | 15.96 | 64.77 | 5.35 | 337.80 | 0.2384 | -1455.5 | 999999 | |
| 0.00 | 2.24 | 0.00 | 1.16 | 19.24 | 64.43 | 5.01 | 343.32 | 0.2885 | -771.0 | -496.2 | |
| 2.50 | -7.00 | 1.27 | -7.00 | 16.63 | 64.26 | 4.84 | 340.71 | 0.2460 | -780.4 | 999999 | |
| 0.00 | 7.57 | 0.00 | 3.88 | 17.18 | 64.12 | 4.70 | 341.96 | 0.2540 | -590.0 | -698.8 | |
| 0.00 | 2.41 | 0.00 | 1.24 | 17.61 | 63.91 | 4.49 | 343.22 | 0.2599 | -748.0 | -652.0 | |
| 0.00 | 8.95 | 0.00 | 4.58 | 17.31 | 63.72 | 4.30 | 343.56 | 0.2540 | -872.0 | -762.2 | |
| 0.00 | 1.55 | 0.00 | 0.79 | 17.64 | 63.04 | 3.62 | 346.37 | 0.2565 | -689.0 | -510.2 | |
| 0.00 | 1.38 | 0.00 | 0.71 | 17.89 | 62.67 | 3.25 | 347.93 | 0.2592 | -839.0 | -602.1 | |
| 0.00 | 1.46 | 0.00 | 0.75 | 16.67 | 62.52 | 3.11 | 347.37 | 0.2384 | -853.0 | -596.5 | |
| 0.00 | 0.69 | 0.00 | 0.35 | 17.74 | 62.48 | 3.06 | 348.49 | 0.2560 | -804.0 | -687.1 | |
| 0.00 | 1.12 | 0.00 | 0.57 | 17.53 | 62.07 | 2.65 | 349.84 | 0.2512 | -838.0 | -576.0 | |
| 0.00 | 1.29 | 0.00 | 0.68 | 22.52 | 61.58 | 2.16 | 353.97 | 0.3328 | -726.0 | -536.3 | |
| 0.00 | 2.15 | 0.00 | 1.11 | 19.62 | 61.16 | 1.74 | 354.20 | 0.2841 | -666.0 | -468.1 | |
| 0.00 | 0.95 | 0.00 | 0.51 | 25.18 | 61.03 | 1.61 | 356.09 | 0.3755 | -523.0 | -503.4 | |
| 0.00 | 1.12 | 0.00 | 0.60 | 24.83 | 60.86 | 1.45 | 356.43 | 0.3696 | -867.0 | -730.3 | |
| 0.00 | 1.29 | 0.00 | 0.65 | 12.05 | 58.03 | -1.39 | 8.83 | 0.1550 | -859.0 | -554.5 | |
| 3.01 | 5.59 | 1.52 | 2.81 | 13.28 | 57.99 | -1.42 | 7.93 | 0.1761 | 1042.5 | 765.1 | |
| 0.00 | 2.93 | 0.00 | 1.52 | 20.02 | 56.58 | -2.83 | 9.16 | 0.2931 | 1020.0 | 748.8 | |
| 0.00 | 1.38 | 0.00 | 0.71 | 20.20 | 56.52 | -2.90 | 9.26 | 0.2963 | 808.0 | 565.3 | |
| 0.00 | 2.67 | 0.00 | 1.37 | 18.72 | 56.48 | -2.94 | 10.33 | 0.2719 | 913.0 | 734.0 | |
| 0.00 | 1.12 | 0.00 | 0.59 | 22.17 | 55.84 | -3.58 | 10.13 | 0.3304 | 781.0 | 643.7 | |
| 0.00 | 1.20 | 0.00 | 0.62 | 19.70 | 55.36 | -4.06 | 13.26 | 0.2919 | 866.0 | 642.4 | |
| 0.00 | 1.29 | 0.00 | 0.68 | 21.85 | 54.27 | -5.14 | 14.64 | 0.3308 | 762.0 | 638.3 | |
| 0.00 | 3.36 | 0.00 | 1.76 | 22.00 | 53.82 | -5.60 | 15.73 | 0.3352 | 661.0 | 654.2 | |
| 0.00 | 1.29 | 0.00 | 0.68 | 19.88 | 49.02 | -10.39 | 30.63 | 0.3345 | 806.0 | 617.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
