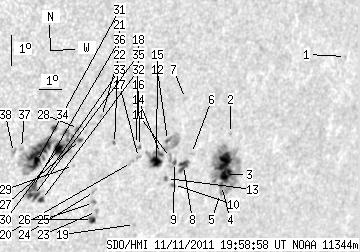

SDO HMI 2011-11-11 19:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 67.38 | 301.04 | 49.11 | 220.46 | -17.65 | 102.07 | 43.21 | 242.20 | 0.7382 | 48.6 | -38.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-11 19:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.29 | 0.00 | 1.09 | -14.60 | 110.50 | 51.63 | 249.35 | 0.8131 | -545.0 | -438.5 | |
| 0.00 | 0.86 | 0.00 | 0.67 | -16.79 | 105.76 | 46.89 | 245.00 | 0.7735 | 556.0 | 483.2 | |
| 9.81 | 96.65 | 7.74 | 76.02 | -18.10 | 105.97 | 47.11 | 243.50 | 0.7804 | 802.8 | 288.9 | |
| 2.07 | -3.00 | 1.63 | -3.00 | -18.44 | 105.91 | 47.05 | 243.06 | 0.7811 | 523.7 | 999999 | |
| 1.12 | -3.00 | 0.89 | -3.00 | -18.70 | 105.96 | 47.09 | 242.77 | 0.7825 | 233.4 | 999999 | |
| 0.00 | 1.64 | 0.00 | 1.24 | -17.36 | 104.18 | 45.32 | 243.65 | 0.7597 | 667.0 | 527.9 | |
| 0.00 | 1.03 | 0.00 | 0.76 | -15.60 | 103.40 | 44.53 | 245.51 | 0.7446 | -457.0 | -430.3 | |
| 6.11 | 8.69 | 4.63 | 6.58 | -17.73 | 103.95 | 45.08 | 243.08 | 0.7588 | 620.1 | 563.8 | |
| 0.77 | 1.89 | 0.58 | 1.42 | -17.61 | 103.51 | 44.65 | 243.03 | 0.7539 | 791.6 | 681.4 | |
| 0.26 | 1.89 | 0.20 | 1.43 | -18.32 | 103.70 | 44.83 | 242.24 | 0.7587 | 764.3 | 617.2 | |
| 0.00 | 2.75 | 0.00 | 2.06 | -17.45 | 103.29 | 44.42 | 243.13 | 0.7509 | 654.0 | 639.9 | |
| 1.64 | 15.92 | 1.21 | 11.83 | -16.90 | 102.99 | 44.12 | 243.69 | 0.7455 | -411.4 | 14.4 | |
| 1.98 | 1.98 | 1.49 | 1.49 | -18.11 | 103.32 | 44.46 | 242.32 | 0.7540 | 737.0 | 0.0 | |
| 2.58 | 18.93 | 1.91 | 13.99 | -17.30 | 102.81 | 43.94 | 243.10 | 0.7453 | 732.4 | 625.0 | |
| 7.66 | -14.00 | 5.67 | -14.00 | -17.58 | 102.72 | 43.85 | 242.70 | 0.7456 | 841.7 | 999999 | |
| 0.34 | 1.29 | 0.25 | 0.94 | -17.04 | 101.83 | 42.96 | 242.96 | 0.7339 | 729.2 | 653.6 | |
| 0.00 | 2.24 | 0.00 | 1.63 | -17.39 | 101.89 | 43.02 | 242.55 | 0.7361 | 732.0 | 548.7 | |
| 0.00 | 0.69 | 0.00 | 0.50 | -16.97 | 101.68 | 42.82 | 242.98 | 0.7320 | 607.0 | 456.0 | |
| 0.00 | 1.38 | 0.00 | 1.03 | -19.54 | 102.39 | 43.53 | 240.12 | 0.7510 | 323.0 | 244.7 | |
| 0.00 | 2.15 | 0.00 | 1.56 | -17.54 | 101.63 | 42.77 | 242.24 | 0.7340 | 779.0 | 544.4 | |
| 1.03 | 1.55 | 0.74 | 1.10 | -16.90 | 100.73 | 41.87 | 242.60 | 0.7216 | 682.1 | 396.5 | |
| 0.00 | 0.86 | 0.00 | 0.60 | -16.02 | 99.96 | 41.10 | 243.36 | 0.7092 | 613.0 | 481.5 | |
| 0.00 | 1.72 | 0.00 | 1.24 | -19.05 | 100.61 | 41.74 | 239.80 | 0.7305 | -513.0 | -396.8 | |
| 0.00 | 2.32 | 0.00 | 1.66 | -18.40 | 100.33 | 41.46 | 240.47 | 0.7244 | -675.0 | -501.1 | |
| 0.00 | 1.81 | 0.00 | 1.30 | -18.76 | 100.39 | 41.53 | 240.06 | 0.7268 | -828.0 | -621.2 | |
| 3.70 | 5.25 | 2.68 | 3.80 | -19.30 | 100.52 | 41.65 | 239.44 | 0.7308 | -617.1 | -296.3 | |
| 1.29 | 93.29 | 0.90 | 63.88 | -16.72 | 99.28 | 40.42 | 242.09 | 0.7050 | -286.0 | -504.6 | |
| 0.00 | 3.36 | 0.00 | 2.33 | -16.36 | 99.11 | 40.25 | 242.47 | 0.7014 | -697.0 | -577.7 | |
| 0.00 | 0.86 | 0.00 | 0.60 | -17.53 | 99.21 | 40.35 | 240.99 | 0.7082 | 528.0 | 485.1 | |
| 8.69 | -27.00 | 5.99 | -27.00 | -16.97 | 98.45 | 39.59 | 241.31 | 0.6972 | -738.7 | 999999 | |
| 2.84 | 3.53 | 1.94 | 2.41 | -16.33 | 98.13 | 39.27 | 241.99 | 0.6904 | -773.7 | -679.2 | |
| 2.41 | 19.28 | 1.67 | 13.29 | -18.57 | 98.19 | 39.33 | 239.07 | 0.7027 | -464.1 | -601.0 | |
| 0.00 | 1.12 | 0.00 | 0.77 | -18.00 | 98.03 | 39.17 | 239.73 | 0.6979 | -598.0 | -424.0 | |
| 4.30 | -27.00 | 2.94 | -27.00 | -17.35 | 97.66 | 38.80 | 240.37 | 0.6905 | -913.3 | 999999 | |
| 5.77 | -32.00 | 3.98 | -32.00 | -18.43 | 97.83 | 38.96 | 239.04 | 0.6980 | -696.4 | 999999 | |
| 3.01 | -32.00 | 2.07 | -32.00 | -18.17 | 97.72 | 38.85 | 239.31 | 0.6954 | -922.9 | 999999 | |
| 0.00 | 1.55 | 0.00 | 1.04 | -16.91 | 96.96 | 38.10 | 240.54 | 0.6803 | -709.0 | -592.6 | |
| 0.00 | 3.27 | 0.00 | 2.20 | -17.03 | 96.67 | 37.81 | 240.21 | 0.6777 | -810.0 | -612.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
