SDO HMI 2011-11-11 20:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 27.28 | 173.50 | 32.85 | 209.14 | -13.78 | 122.16 | 63.85 | 253.26 | 0.9116 | 532.7 | 163.4 | |
|
previous
or next observation for the same group /

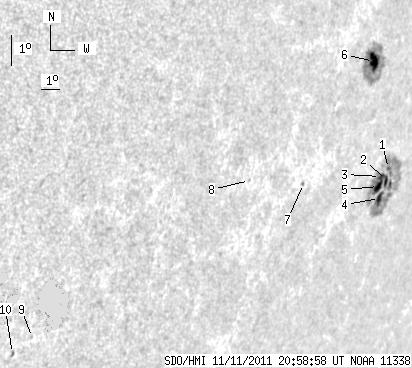

back to the solar disc SDO HMI 2011-11-11 20:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.38 | 106.55 | 1.74 | 135.06 | -14.50 | 123.43 | 65.12 | 252.72 | 0.9215 | 454.7 | 138.4 | |
| 2.75 | -1.00 | 3.49 | -1.00 | -14.88 | 123.50 | 65.19 | 252.33 | 0.9224 | 337.2 | 999999 | |
| 1.72 | -1.00 | 2.14 | -1.00 | -14.73 | 122.97 | 64.66 | 252.39 | 0.9188 | 756.0 | 999999 | |
| 5.68 | -1.00 | 7.18 | -1.00 | -15.43 | 123.31 | 65.00 | 251.70 | 0.9218 | 369.5 | 999999 | |
| 4.99 | -1.00 | 6.23 | -1.00 | -15.04 | 123.01 | 64.70 | 252.06 | 0.9194 | 689.7 | 999999 | |
| 10.76 | 62.05 | 12.07 | 69.72 | -11.08 | 120.79 | 62.48 | 255.96 | 0.8990 | 733.6 | 221.6 | |
| 0.00 | 1.29 | 0.00 | 1.35 | -14.68 | 117.85 | 59.54 | 251.38 | 0.8819 | -281.0 | -220.4 | |
| 0.00 | 1.03 | 0.00 | 0.98 | -14.42 | 114.60 | 56.29 | 250.88 | 0.8548 | -446.0 | -349.4 | |
| 0.00 | 0.77 | 0.00 | 0.61 | -18.93 | 105.40 | 47.08 | 242.50 | 0.7833 | 517.0 | 385.3 | |
| 0.00 | 1.81 | 0.00 | 1.42 | -19.40 | 104.65 | 46.34 | 241.60 | 0.7780 | 448.0 | 431.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
