SDO HMI 2011-11-11 22:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 25.73 | 164.33 | 32.16 | 205.89 | -13.76 | 122.08 | 64.88 | 253.47 | 0.9185 | 508.3 | 143.4 | |
|
previous
or next observation for the same group /

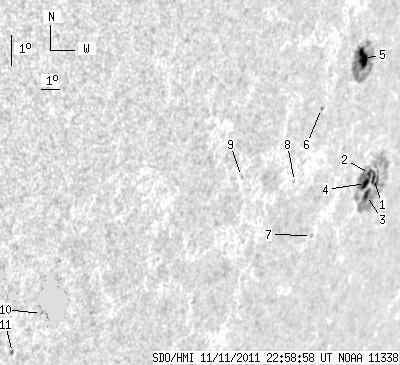

back to the solar disc SDO HMI 2011-11-11 22:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.58 | 96.67 | 3.43 | 128.00 | -14.91 | 123.50 | 66.29 | 252.49 | 0.9293 | 221.8 | 132.2 | |
| 2.15 | -1.00 | 2.81 | -1.00 | -14.74 | 123.08 | 65.88 | 252.61 | 0.9266 | 697.9 | 999999 | |
| 5.51 | -1.00 | 7.27 | -1.00 | -15.43 | 123.28 | 66.07 | 251.91 | 0.9286 | 396.9 | 999999 | |
| 4.30 | -1.00 | 5.59 | -1.00 | -15.04 | 122.96 | 65.75 | 252.26 | 0.9262 | 726.0 | 999999 | |
| 11.19 | 60.69 | 13.06 | 71.03 | -11.08 | 120.85 | 63.64 | 256.16 | 0.9075 | 676.6 | 167.1 | |
| 0.00 | 0.86 | 0.00 | 0.94 | -12.50 | 118.64 | 61.43 | 254.20 | 0.8930 | -129.0 | -199.7 | |
| 0.00 | 1.46 | 0.00 | 1.72 | -16.50 | 119.95 | 62.75 | 250.10 | 0.9083 | 452.0 | 336.0 | |
| 0.00 | 0.95 | 0.00 | 1.02 | -14.71 | 117.90 | 60.69 | 251.60 | 0.8907 | -236.0 | -176.2 | |
| 0.00 | 1.12 | 0.00 | 1.09 | -14.39 | 114.57 | 57.37 | 251.19 | 0.8638 | -295.0 | -291.2 | |
| 0.00 | 1.03 | 0.00 | 0.84 | -18.27 | 105.74 | 48.54 | 243.89 | 0.7947 | 507.0 | 493.1 | |
| 0.00 | 1.55 | 0.00 | 1.25 | -19.47 | 104.84 | 47.63 | 242.09 | 0.7905 | 597.0 | 419.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
