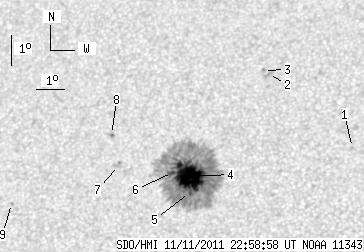

SDO HMI 2011-11-11 22:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 48.21 | 339.24 | 26.94 | 189.84 | 27.96 | 44.15 | -13.06 | 25.45 | 0.4663 | -1151.6 | -417.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-11 22:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.21 | 0.00 | 0.67 | 28.91 | 49.67 | -7.54 | 14.84 | 0.4500 | -684.0 | -483.4 | |
| 0.00 | 4.13 | 0.00 | 2.36 | 31.31 | 46.53 | -10.68 | 18.58 | 0.4989 | -937.0 | -667.4 | |
| 0.00 | 1.46 | 0.00 | 0.84 | 31.44 | 46.33 | -10.87 | 18.78 | 0.5017 | -677.0 | -598.6 | |
| 45.45 | 325.73 | 25.40 | 182.15 | 27.90 | 44.18 | -13.03 | 25.47 | 0.4651 | -1315.1 | -412.3 | |
| 0.95 | -4.00 | 0.53 | -4.00 | 27.38 | 44.24 | -12.96 | 25.92 | 0.4576 | -1240.5 | 999999 | |
| 1.81 | -4.00 | 1.01 | -4.00 | 28.02 | 43.58 | -13.63 | 26.34 | 0.4709 | -795.0 | 999999 | |
| 0.00 | 3.79 | 0.00 | 2.15 | 28.23 | 41.67 | -15.54 | 29.11 | 0.4871 | -704.0 | -596.2 | |
| 0.00 | 1.89 | 0.00 | 1.08 | 29.24 | 41.27 | -15.94 | 28.58 | 0.5030 | -860.0 | -693.2 | |
| 0.00 | 1.03 | 0.00 | 0.59 | 26.93 | 38.13 | -19.08 | 35.79 | 0.5003 | 793.0 | 695.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
