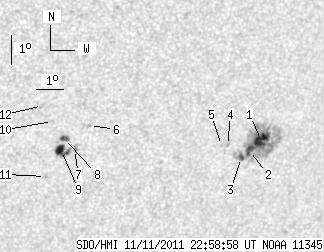

SDO HMI 2011-11-11 22:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 34.25 | 127.74 | 22.16 | 83.79 | -25.40 | 87.21 | 30.00 | 223.55 | 0.6564 | 106.1 | 233.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-11 22:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.19 | 97.62 | 7.45 | 65.04 | -25.26 | 88.92 | 31.71 | 225.34 | 0.6707 | 961.8 | 358.8 | |
| 5.85 | -1.00 | 3.90 | -1.00 | -25.62 | 88.56 | 31.35 | 224.62 | 0.6703 | 924.8 | 999999 | |
| 2.84 | -1.00 | 1.89 | -1.00 | -25.85 | 88.32 | 31.11 | 224.14 | 0.6700 | 773.7 | 999999 | |
| 0.00 | 1.21 | 0.00 | 0.79 | -25.42 | 87.66 | 30.45 | 224.07 | 0.6605 | 854.0 | 691.7 | |
| 0.00 | 0.86 | 0.00 | 0.56 | -25.41 | 87.43 | 30.22 | 223.87 | 0.6583 | 837.0 | 645.5 | |
| 0.00 | 1.55 | 0.00 | 0.96 | -24.60 | 82.34 | 25.13 | 219.86 | 0.6047 | -603.0 | -565.2 | |
| 0.34 | 3.44 | 0.21 | 2.15 | -25.39 | 81.97 | 24.76 | 218.55 | 0.6094 | -639.0 | -513.3 | |
| 4.22 | 4.99 | 2.61 | 3.09 | -25.01 | 81.52 | 24.32 | 218.50 | 0.6017 | -891.4 | -757.2 | |
| 9.81 | 14.29 | 6.10 | 8.87 | -25.42 | 81.50 | 24.30 | 218.02 | 0.6057 | -812.7 | -645.2 | |
| 0.00 | 1.03 | 0.00 | 0.63 | -24.43 | 80.97 | 23.77 | 218.56 | 0.5909 | -840.0 | -638.0 | |
| 0.00 | 1.03 | 0.00 | 0.65 | -26.29 | 81.11 | 23.91 | 216.62 | 0.6114 | -639.0 | -599.4 | |
| 0.00 | 1.72 | 0.00 | 1.05 | -23.88 | 80.51 | 23.31 | 218.67 | 0.5812 | -692.0 | -576.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
