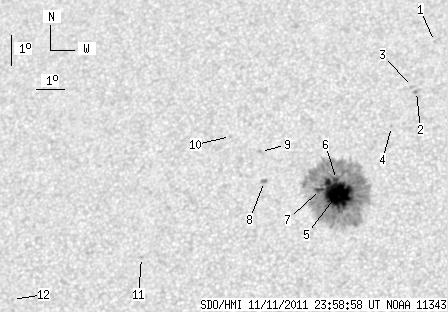

SDO HMI 2011-11-11 23:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 48.38 | 330.68 | 26.99 | 184.69 | 27.98 | 44.05 | -12.60 | 24.67 | 0.4638 | -1063.8 | -427.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-11 23:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.95 | 0.00 | 0.55 | 33.01 | 46.96 | -9.70 | 15.87 | 0.5188 | -628.0 | -460.0 | |
| 0.00 | 2.07 | 0.00 | 1.18 | 31.31 | 46.50 | -10.15 | 17.73 | 0.4966 | -931.0 | -722.4 | |
| 0.00 | 1.72 | 0.00 | 0.98 | 31.48 | 46.34 | -10.31 | 17.86 | 0.4997 | -589.0 | -486.5 | |
| 0.00 | 0.86 | 0.00 | 0.49 | 30.13 | 45.76 | -10.90 | 19.85 | 0.4835 | -648.0 | -544.5 | |
| 45.11 | 318.79 | 25.16 | 177.90 | 27.90 | 44.14 | -12.51 | 24.60 | 0.4619 | -1316.2 | -425.9 | |
| 0.26 | -5.00 | 0.14 | -5.00 | 28.36 | 44.05 | -12.60 | 24.29 | 0.4687 | -786.0 | 999999 | |
| 3.01 | -5.00 | 1.69 | -5.00 | 28.03 | 43.54 | -13.11 | 25.48 | 0.4675 | -774.9 | 999999 | |
| 0.00 | 1.81 | 0.00 | 1.02 | 28.26 | 41.56 | -15.09 | 28.38 | 0.4844 | -914.0 | -753.2 | |
| 0.00 | 1.64 | 0.00 | 0.93 | 29.25 | 41.28 | -15.38 | 27.74 | 0.4992 | -895.0 | -682.4 | |
| 0.00 | 1.12 | 0.00 | 0.65 | 29.73 | 40.13 | -16.52 | 28.87 | 0.5134 | -748.0 | -585.7 | |
| 0.00 | 0.69 | 0.00 | 0.39 | 25.73 | 37.67 | -18.98 | 37.27 | 0.4859 | 751.0 | 526.8 | |
| 0.00 | 1.03 | 0.00 | 0.60 | 24.31 | 33.40 | -23.26 | 44.72 | 0.5135 | 572.0 | 395.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
