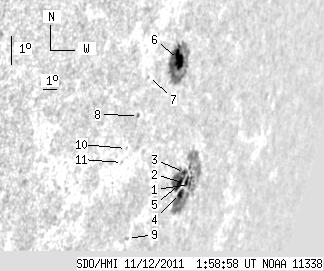

SDO HMI 2011-11-12 01:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 21.36 | 149.05 | 28.34 | 200.76 | -13.59 | 122.22 | 66.66 | 253.98 | 0.9299 | 452.6 | 126.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-12 01:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.38 | 85.85 | 1.99 | 122.42 | -15.09 | 123.84 | 68.28 | 252.66 | 0.9412 | -128.3 | 102.2 | |
| 0.34 | -1.00 | 0.49 | -1.00 | -15.04 | 123.47 | 67.91 | 252.65 | 0.9391 | -61.8 | 999999 | |
| 1.64 | -1.00 | 2.29 | -1.00 | -14.68 | 123.15 | 67.60 | 252.97 | 0.9369 | 664.9 | 999999 | |
| 3.19 | -1.00 | 4.50 | -1.00 | -15.34 | 123.26 | 67.70 | 252.30 | 0.9382 | 428.7 | 999999 | |
| 4.56 | -1.00 | 6.35 | -1.00 | -15.04 | 122.98 | 67.42 | 252.56 | 0.9362 | 674.4 | 999999 | |
| 10.25 | 58.81 | 12.72 | 73.16 | -11.08 | 120.78 | 65.22 | 256.42 | 0.9184 | 670.6 | 180.3 | |
| 0.00 | 0.86 | 0.00 | 1.00 | -11.50 | 118.84 | 63.29 | 255.65 | 0.9053 | 223.0 | 270.6 | |
| 0.00 | 1.29 | 0.00 | 1.49 | -12.69 | 118.67 | 63.11 | 254.32 | 0.9056 | -379.0 | -271.9 | |
| 0.00 | 1.21 | 0.00 | 1.50 | -16.57 | 119.98 | 64.42 | 250.39 | 0.9195 | 462.0 | 340.6 | |
| 0.00 | 0.69 | 0.00 | 0.79 | -13.68 | 118.32 | 62.77 | 253.17 | 0.9044 | -252.0 | -233.1 | |
| 0.00 | 0.34 | 0.00 | 0.40 | -14.11 | 118.26 | 62.70 | 252.69 | 0.9045 | -428.0 | -390.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
