SDO HMI 2011-11-12 03:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 68.89 | 444.88 | 35.53 | 229.46 | 16.10 | 64.19 | 9.74 | 324.11 | 0.2794 | -879.5 | -399.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-12 03:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

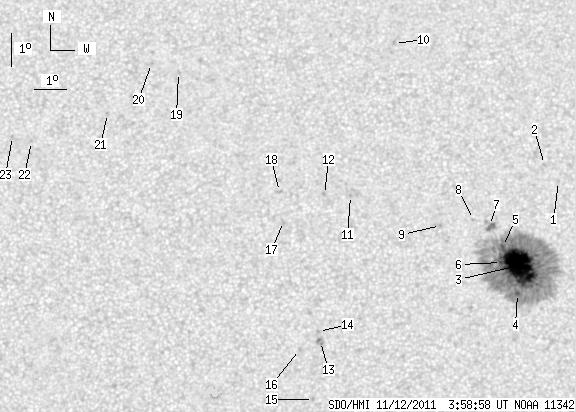

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.60 | 0.00 | 0.32 | 18.55 | 66.03 | 11.58 | 324.36 | 0.3280 | -713.0 | -519.6 | |
| 0.00 | 1.38 | 0.00 | 0.72 | 19.08 | 65.62 | 11.16 | 326.28 | 0.3311 | -769.0 | -606.6 | |
| 64.24 | 412.41 | 33.14 | 212.74 | 16.00 | 64.61 | 10.16 | 322.62 | 0.2805 | -1488.8 | -446.5 | |
| 1.89 | -3.00 | 0.97 | -3.00 | 15.15 | 64.54 | 10.08 | 320.82 | 0.2687 | -817.0 | 999999 | |
| 1.55 | -3.00 | 0.80 | -3.00 | 16.58 | 64.14 | 9.68 | 325.17 | 0.2836 | -830.0 | 999999 | |
| 1.21 | -3.00 | 0.62 | -3.00 | 16.09 | 64.09 | 9.63 | 324.27 | 0.2765 | -1110.7 | 999999 | |
| 0.00 | 6.98 | 0.00 | 3.61 | 17.22 | 63.77 | 9.31 | 327.51 | 0.2889 | -830.0 | -763.7 | |
| 0.00 | 0.69 | 0.00 | 0.36 | 17.41 | 63.27 | 8.81 | 329.24 | 0.2872 | -722.0 | -586.6 | |
| 0.00 | 1.03 | 0.00 | 0.53 | 17.24 | 62.23 | 7.77 | 331.97 | 0.2761 | -1023.0 | -825.2 | |
| 0.00 | 1.72 | 0.00 | 0.91 | 22.89 | 61.02 | 6.56 | 342.64 | 0.3545 | -793.0 | -580.3 | |
| 0.00 | 0.78 | 0.00 | 0.40 | 18.17 | 59.44 | 4.98 | 342.27 | 0.2722 | 752.0 | 626.7 | |
| 0.00 | 1.46 | 0.00 | 0.75 | 18.21 | 58.63 | 4.17 | 345.05 | 0.2689 | 840.0 | 653.9 | |
| 0.00 | 4.39 | 0.00 | 2.22 | 13.74 | 58.41 | 3.95 | 339.84 | 0.1953 | 868.0 | 886.1 | |
| 0.00 | 1.03 | 0.00 | 0.52 | 14.04 | 58.36 | 3.90 | 340.64 | 0.1998 | 717.0 | 511.2 | |
| 0.00 | 1.12 | 0.00 | 0.56 | 11.99 | 58.17 | 3.71 | 337.43 | 0.1659 | -931.0 | -730.6 | |
| 0.00 | 1.64 | 0.00 | 0.82 | 13.50 | 57.77 | 3.31 | 342.54 | 0.1878 | 765.0 | 564.9 | |
| 0.00 | 2.07 | 0.00 | 1.06 | 17.38 | 57.33 | 2.87 | 348.94 | 0.2504 | 751.0 | 664.7 | |
| 0.00 | 1.98 | 0.00 | 1.02 | 18.30 | 57.22 | 2.76 | 350.02 | 0.2654 | 861.0 | 681.0 | |
| 0.00 | 1.38 | 0.00 | 0.72 | 22.00 | 54.05 | -0.40 | 1.16 | 0.3233 | 843.0 | 684.2 | |
| 0.00 | 1.12 | 0.00 | 0.59 | 22.28 | 53.19 | -1.27 | 3.60 | 0.3286 | 738.0 | 642.4 | |
| 0.00 | 1.12 | 0.00 | 0.58 | 20.72 | 51.80 | -2.65 | 8.20 | 0.3051 | 842.0 | 647.4 | |
| 0.00 | 1.03 | 0.00 | 0.54 | 19.84 | 49.42 | -5.04 | 16.11 | 0.2991 | 614.0 | 490.9 | |
| 0.00 | 0.95 | 0.00 | 0.49 | 19.99 | 48.81 | -5.65 | 17.77 | 0.3045 | 716.0 | 605.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
