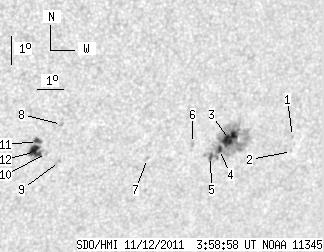

SDO HMI 2011-11-12 03:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 28.24 | 116.35 | 18.76 | 78.77 | -25.38 | 87.36 | 32.90 | 226.08 | 0.6824 | -2.5 | 203.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-12 03:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.95 | 0.00 | 0.67 | -25.23 | 91.39 | 36.93 | 229.37 | 0.7185 | -637.0 | -553.4 | |
| 0.00 | 0.78 | 0.00 | 0.55 | -25.74 | 91.53 | 37.07 | 228.87 | 0.7232 | -619.0 | -457.2 | |
| 10.94 | 88.01 | 7.51 | 60.51 | -25.25 | 88.84 | 34.38 | 227.51 | 0.6950 | 964.7 | 330.9 | |
| 2.41 | -3.00 | 1.66 | -3.00 | -25.57 | 88.55 | 34.09 | 226.91 | 0.6947 | 889.0 | 999999 | |
| 2.58 | -3.00 | 1.77 | -3.00 | -25.80 | 88.27 | 33.81 | 226.42 | 0.6938 | 758.2 | 999999 | |
| 0.00 | 1.98 | 0.00 | 1.34 | -25.33 | 87.41 | 32.95 | 226.29 | 0.6824 | 710.0 | 604.4 | |
| 0.00 | 1.46 | 0.00 | 0.98 | -25.79 | 85.79 | 31.33 | 224.43 | 0.6712 | -615.0 | -366.6 | |
| 0.00 | 1.55 | 0.00 | 0.98 | -24.54 | 82.21 | 27.75 | 222.64 | 0.6276 | -701.0 | -592.5 | |
| 0.00 | 1.12 | 0.00 | 0.72 | -25.79 | 82.45 | 27.99 | 221.41 | 0.6412 | -624.0 | -519.2 | |
| 0.00 | 1.81 | 0.00 | 1.15 | -25.50 | 81.89 | 27.43 | 221.20 | 0.6336 | -643.0 | -489.6 | |
| 3.01 | 18.69 | 1.91 | 11.87 | -25.09 | 81.46 | 27.00 | 221.26 | 0.6258 | -912.7 | -620.0 | |
| 9.30 | -11.00 | 5.91 | -11.00 | -25.42 | 81.46 | 27.01 | 220.87 | 0.6290 | -889.0 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
