SDO HMI 2011-11-12 04:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.18 | 137.19 | 25.97 | 200.08 | -13.70 | 122.31 | 68.40 | 254.15 | 0.9403 | 492.7 | 95.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-12 04:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

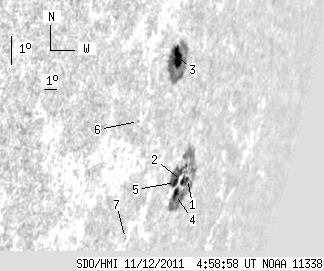

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.78 | 82.59 | 1.22 | 127.38 | -14.94 | 123.94 | 70.03 | 253.09 | 0.9505 | -227.0 | 75.1 | |
| 1.38 | -1.00 | 2.12 | -1.00 | -14.98 | 123.42 | 69.51 | 252.98 | 0.9478 | 165.7 | 999999 | |
| 8.44 | 52.96 | 11.18 | 70.59 | -11.02 | 120.78 | 66.87 | 256.75 | 0.9290 | 675.7 | 138.6 | |
| 4.31 | -1.00 | 6.55 | -1.00 | -15.40 | 123.20 | 69.29 | 252.50 | 0.9470 | 448.9 | 999999 | |
| 3.27 | -1.00 | 4.90 | -1.00 | -15.01 | 122.92 | 69.01 | 252.86 | 0.9451 | 672.3 | 999999 | |
| 0.00 | 0.78 | 0.00 | 0.96 | -12.91 | 118.75 | 64.84 | 254.40 | 0.9177 | -268.0 | -308.2 | |
| 0.00 | 0.86 | 0.00 | 1.15 | -16.60 | 119.93 | 66.02 | 250.67 | 0.9295 | 187.0 | 221.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
