SDO HMI 2011-11-12 04:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 63.99 | 428.87 | 33.07 | 221.59 | 16.05 | 64.55 | 10.64 | 321.54 | 0.2863 | -1311.4 | -448.2 | |
|
previous
or next observation for the same group /

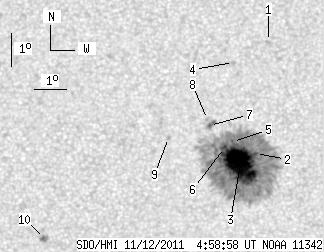

back to the solar disc SDO HMI 2011-11-12 04:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.81 | 0.00 | 0.95 | 19.72 | 65.76 | 11.85 | 325.86 | 0.3460 | -677.0 | -517.0 | |
| 1.12 | 413.88 | 0.58 | 213.86 | 16.29 | 65.12 | 11.21 | 320.59 | 0.2953 | -886.5 | -456.8 | |
| 59.16 | -2.00 | 30.57 | -2.00 | 15.99 | 64.63 | 10.72 | 321.14 | 0.2863 | -1522.9 | 999999 | |
| 0.00 | 1.29 | 0.00 | 0.68 | 19.08 | 64.60 | 10.69 | 327.42 | 0.3269 | -750.0 | -645.8 | |
| 0.86 | -2.00 | 0.45 | -2.00 | 16.66 | 64.42 | 10.51 | 323.17 | 0.2928 | -665.0 | 999999 | |
| 1.64 | -2.00 | 0.85 | -2.00 | 16.48 | 64.16 | 10.25 | 323.47 | 0.2878 | -901.6 | 999999 | |
| 1.21 | 5.08 | 0.62 | 2.63 | 17.15 | 63.72 | 9.81 | 326.03 | 0.2926 | -934.9 | -807.6 | |
| 0.00 | 1.12 | 0.00 | 0.58 | 17.34 | 63.67 | 9.76 | 326.53 | 0.2947 | -687.0 | -559.8 | |
| 0.00 | 1.64 | 0.00 | 0.84 | 16.80 | 62.41 | 8.50 | 328.98 | 0.2759 | -946.0 | -760.0 | |
| 0.00 | 4.05 | 0.00 | 2.05 | 13.76 | 58.48 | 4.57 | 337.10 | 0.1997 | 1205.0 | 927.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
