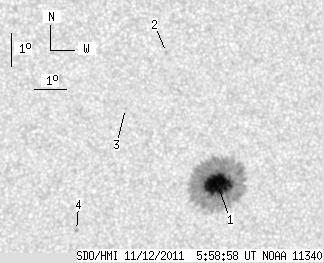

SDO HMI 2011-11-12 05:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 38.58 | 230.54 | 20.72 | 123.76 | -8.26 | 72.97 | 19.60 | 239.48 | 0.3871 | 1100.4 | 408.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-12 05:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 38.58 | 227.44 | 20.72 | 122.13 | -8.28 | 73.01 | 19.64 | 239.49 | 0.3878 | 1376.9 | 425.8 | |
| 0.00 | 1.12 | 0.00 | 0.59 | -4.28 | 71.25 | 17.88 | 247.37 | 0.3333 | -835.0 | -613.7 | |
| 0.00 | 0.69 | 0.00 | 0.36 | -5.94 | 70.02 | 16.65 | 241.20 | 0.3267 | -725.0 | -572.9 | |
| 0.00 | 1.29 | 0.00 | 0.68 | -9.60 | 68.63 | 15.27 | 229.75 | 0.3417 | -869.0 | -717.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
