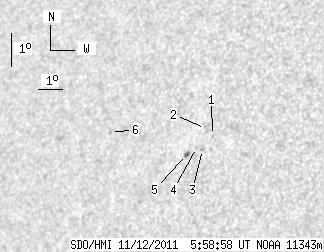

SDO HMI 2011-11-12 05:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.78 | 8.88 | 0.52 | 6.00 | 11.93 | 11.01 | -42.36 | 75.86 | 0.6820 | -625.4 | -522.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-12 05:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.52 | 0.00 | 0.34 | 12.16 | 11.95 | -41.41 | 75.34 | 0.6708 | -736.0 | -632.2 | |
| 0.00 | 2.58 | 0.00 | 1.73 | 12.36 | 11.63 | -41.74 | 75.11 | 0.6752 | -682.0 | -601.6 | |
| 0.00 | 1.55 | 0.00 | 1.04 | 11.72 | 11.62 | -41.74 | 76.05 | 0.6740 | -797.0 | -583.0 | |
| 0.00 | 0.95 | 0.00 | 0.64 | 11.78 | 11.37 | -41.99 | 76.02 | 0.6773 | -516.0 | -476.5 | |
| 0.78 | 2.33 | 0.52 | 1.57 | 11.55 | 11.00 | -42.36 | 76.43 | 0.6815 | -566.1 | -457.4 | |
| 0.00 | 0.95 | 0.00 | 0.68 | 12.09 | 7.67 | -45.69 | 76.28 | 0.7226 | -427.0 | -318.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
