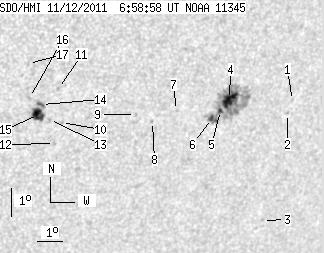

SDO HMI 2011-11-12 06:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 28.93 | 122.12 | 19.57 | 84.06 | -25.35 | 87.10 | 34.28 | 227.19 | 0.6947 | -90.9 | 100.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-12 06:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.86 | 0.00 | 0.63 | -25.28 | 91.43 | 38.61 | 230.46 | 0.7341 | -680.0 | -551.4 | |
| 0.00 | 1.38 | 0.00 | 1.00 | -25.72 | 91.38 | 38.57 | 229.92 | 0.7364 | -673.0 | -498.2 | |
| 0.00 | 0.95 | 0.00 | 0.72 | -29.41 | 91.87 | 39.05 | 226.10 | 0.7640 | -540.0 | -416.0 | |
| 11.54 | 86.98 | 8.08 | 60.99 | -25.15 | 88.78 | 35.96 | 228.80 | 0.7088 | 966.5 | 275.7 | |
| 1.72 | -4.00 | 1.21 | -4.00 | -25.51 | 88.54 | 35.72 | 228.21 | 0.7090 | 877.9 | 999999 | |
| 3.10 | -4.00 | 2.17 | -4.00 | -25.77 | 88.26 | 35.44 | 227.70 | 0.7084 | 757.4 | 999999 | |
| 0.00 | 0.95 | 0.00 | 0.65 | -25.45 | 86.75 | 33.93 | 226.94 | 0.6921 | 517.0 | 510.4 | |
| 0.00 | 1.21 | 0.00 | 0.82 | -25.80 | 85.91 | 33.09 | 225.88 | 0.6870 | -432.0 | -286.3 | |
| 0.00 | 1.55 | 0.00 | 1.04 | -25.53 | 85.16 | 32.34 | 225.58 | 0.6782 | -542.0 | -436.3 | |
| 0.00 | 1.29 | 0.00 | 0.84 | -25.72 | 82.37 | 29.55 | 222.96 | 0.6543 | -563.0 | -488.7 | |
| 0.00 | 1.46 | 0.00 | 0.94 | -24.56 | 81.95 | 29.13 | 223.94 | 0.6404 | -725.0 | -585.8 | |
| 0.00 | 1.29 | 0.00 | 0.85 | -26.43 | 82.30 | 29.48 | 222.09 | 0.6599 | -606.0 | -487.3 | |
| 0.00 | 0.78 | 0.00 | 0.50 | -25.60 | 81.88 | 29.07 | 222.65 | 0.6489 | -564.0 | -442.1 | |
| 2.24 | 21.10 | 1.44 | 13.60 | -25.08 | 81.45 | 28.63 | 222.85 | 0.6403 | -848.4 | -592.3 | |
| 10.33 | -14.00 | 6.67 | -14.00 | -25.42 | 81.42 | 28.60 | 222.44 | 0.6431 | -883.5 | 999999 | |
| 0.00 | 1.29 | 0.00 | 0.83 | -24.84 | 80.94 | 28.12 | 222.66 | 0.6334 | -745.0 | -559.9 | |
| 0.00 | 1.03 | 0.00 | 0.65 | -23.69 | 80.62 | 27.81 | 223.74 | 0.6202 | -716.0 | -580.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
