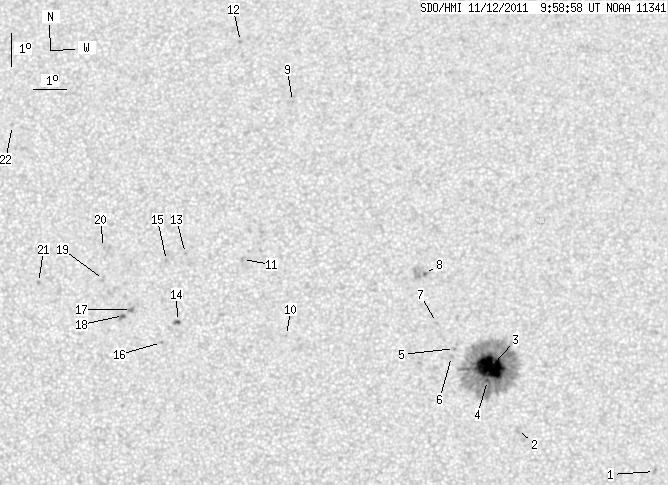

SDO HMI 2011-11-12 09:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 45.21 | 283.15 | 22.65 | 141.94 | 9.76 | 56.27 | 5.09 | 320.94 | 0.1545 | -691.9 | -342.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-12 09:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.24 | 0.00 | 1.13 | 6.29 | 62.09 | 10.91 | 286.34 | 0.1969 | -950.0 | -766.3 | |
| 0.00 | 2.15 | 0.00 | 1.08 | 7.57 | 57.97 | 6.79 | 303.28 | 0.1408 | -846.0 | -649.5 | |
| 39.86 | 239.42 | 19.97 | 119.94 | 9.42 | 57.18 | 6.00 | 316.57 | 0.1508 | -1459.8 | -450.0 | |
| 1.38 | -3.00 | 0.69 | -3.00 | 9.04 | 57.09 | 5.91 | 315.18 | 0.1448 | -1050.8 | 999999 | |
| 0.00 | 1.29 | 0.00 | 0.65 | 10.00 | 56.10 | 4.92 | 324.57 | 0.1465 | -991.0 | -739.5 | |
| 0.00 | 1.21 | 0.00 | 0.60 | 9.76 | 56.01 | 4.83 | 324.11 | 0.1422 | -877.0 | -781.0 | |
| 0.00 | 1.38 | 0.00 | 0.69 | 10.78 | 55.57 | 4.39 | 330.38 | 0.1529 | -640.0 | -454.0 | |
| 0.95 | 11.62 | 0.48 | 5.84 | 12.25 | 55.23 | 4.05 | 336.36 | 0.1729 | -599.7 | 192.6 | |
| 0.00 | 1.12 | 0.00 | 0.57 | 17.47 | 51.22 | 0.04 | 359.85 | 0.2478 | 863.0 | 634.7 | |
| 0.00 | 1.03 | 0.00 | 0.52 | 10.40 | 51.04 | -0.14 | 1.12 | 0.1261 | -816.0 | -521.7 | |
| 0.00 | 1.98 | 0.00 | 0.99 | 12.68 | 49.70 | -1.48 | 8.70 | 0.1676 | 850.0 | 730.6 | |
| 0.00 | 1.46 | 0.00 | 0.75 | 19.31 | 49.59 | -1.59 | 5.40 | 0.2803 | 961.0 | 710.6 | |
| 0.00 | 1.12 | 0.00 | 0.56 | 12.85 | 47.96 | -3.22 | 18.04 | 0.1775 | 891.0 | 649.7 | |
| 1.64 | 2.58 | 0.82 | 1.29 | 10.81 | 47.74 | -3.44 | 23.91 | 0.1459 | -980.7 | -711.5 | |
| 0.00 | 1.21 | 0.00 | 0.61 | 12.64 | 47.39 | -3.79 | 21.44 | 0.1774 | 834.0 | 596.6 | |
| 0.00 | 1.12 | 0.00 | 0.56 | 10.18 | 47.27 | -3.91 | 28.85 | 0.1398 | -800.0 | -628.3 | |
| 0.00 | 3.27 | 0.00 | 1.64 | 11.16 | 46.35 | -4.83 | 30.75 | 0.1625 | 1076.0 | 899.9 | |
| 1.38 | 3.10 | 0.69 | 1.56 | 10.98 | 46.11 | -5.07 | 32.57 | 0.1620 | 1060.1 | 890.9 | |
| 0.00 | 2.41 | 0.00 | 1.21 | 12.06 | 45.48 | -5.70 | 32.16 | 0.1834 | 907.0 | 688.9 | |
| 0.00 | 0.86 | 0.00 | 0.43 | 13.02 | 45.46 | -5.72 | 29.59 | 0.1977 | 639.0 | 572.7 | |
| 0.00 | 1.46 | 0.00 | 0.74 | 11.96 | 43.50 | -7.68 | 40.54 | 0.2022 | 876.0 | 706.4 | |
| 0.00 | 1.12 | 0.00 | 0.58 | 16.70 | 42.52 | -8.66 | 31.63 | 0.2764 | 737.0 | 633.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
