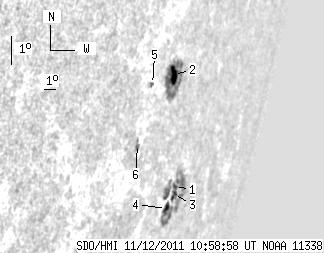

SDO HMI 2011-11-12 10:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.89 | 113.70 | 25.12 | 194.32 | -13.50 | 122.23 | 71.60 | 254.84 | 0.9569 | 434.1 | 27.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-12 10:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.55 | 61.80 | 2.83 | 114.32 | -14.67 | 123.43 | 72.79 | 253.78 | 0.9636 | 442.0 | 9.4 | |
| 7.06 | 46.74 | 10.90 | 72.64 | -11.09 | 120.85 | 70.21 | 257.15 | 0.9485 | 565.9 | 69.4 | |
| 2.15 | -1.00 | 3.95 | -1.00 | -14.93 | 123.54 | 72.91 | 253.54 | 0.9643 | 312.4 | 999999 | |
| 4.13 | -1.00 | 7.44 | -1.00 | -15.34 | 123.17 | 72.54 | 253.06 | 0.9629 | 410.5 | 999999 | |
| 0.00 | 1.46 | 0.00 | 2.08 | -11.31 | 119.13 | 68.50 | 256.70 | 0.9390 | 458.0 | 403.4 | |
| 0.00 | 3.70 | 0.00 | 5.28 | -13.13 | 118.89 | 68.26 | 254.73 | 0.9392 | -394.0 | -271.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
