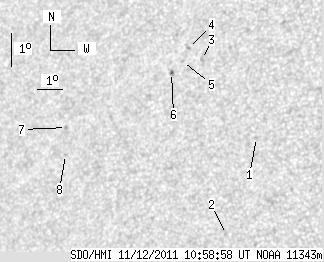

SDO HMI 2011-11-12 10:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.29 | 9.82 | 0.83 | 6.35 | 10.55 | 11.09 | -39.55 | 77.29 | 0.6438 | -377.8 | -366.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-12 10:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.12 | 0.00 | 0.69 | 9.65 | 14.63 | -36.01 | 78.01 | 0.5947 | 515.0 | 411.5 | |
| 0.00 | 0.86 | 0.00 | 0.53 | 6.73 | 13.82 | -36.82 | 83.03 | 0.6018 | 333.0 | 315.2 | |
| 0.00 | 1.98 | 0.00 | 1.26 | 11.91 | 12.25 | -38.39 | 74.94 | 0.6315 | -795.0 | -677.6 | |
| 0.00 | 0.95 | 0.00 | 0.61 | 12.22 | 11.65 | -38.99 | 74.62 | 0.6401 | -708.0 | -654.6 | |
| 0.00 | 1.12 | 0.00 | 0.72 | 11.82 | 11.48 | -39.15 | 75.27 | 0.6413 | -620.0 | -494.5 | |
| 1.29 | 1.55 | 0.83 | 1.00 | 11.48 | 11.11 | -39.53 | 75.89 | 0.6454 | -653.2 | -659.0 | |
| 0.00 | 1.21 | 0.00 | 0.83 | 9.69 | 7.16 | -43.48 | 79.29 | 0.6926 | -631.0 | -550.4 | |
| 0.00 | 1.03 | 0.00 | 0.71 | 8.88 | 7.24 | -43.39 | 80.44 | 0.6907 | -510.0 | -421.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
