SDO HMI 2011-11-12 10:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 25.23 | 94.00 | 17.51 | 66.54 | -25.22 | 87.24 | 36.60 | 229.08 | 0.7150 | 51.4 | 182.2 | |
|
previous
or next observation for the same group /

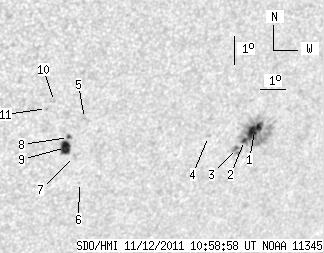

back to the solar disc SDO HMI 2011-11-12 10:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.19 | 66.63 | 8.06 | 48.06 | -25.10 | 88.75 | 38.11 | 230.35 | 0.7282 | 888.6 | 238.6 | |
| 1.81 | -1.00 | 1.30 | -1.00 | -25.43 | 88.45 | 37.82 | 229.78 | 0.7276 | 907.3 | 999999 | |
| 1.64 | 6.54 | 1.18 | 4.71 | -25.69 | 88.21 | 37.58 | 229.32 | 0.7271 | 782.7 | 559.5 | |
| 0.00 | 1.64 | 0.00 | 1.15 | -25.24 | 86.90 | 36.26 | 228.93 | 0.7120 | 725.0 | 675.1 | |
| 0.00 | 0.69 | 0.00 | 0.45 | -24.47 | 81.77 | 31.14 | 225.86 | 0.6582 | -716.0 | -656.9 | |
| 0.00 | 0.77 | 0.00 | 0.52 | -26.64 | 82.22 | 31.58 | 223.69 | 0.6800 | -477.0 | -411.9 | |
| 0.00 | 2.07 | 0.00 | 1.37 | -25.74 | 81.75 | 31.12 | 224.33 | 0.6685 | -547.0 | -376.5 | |
| 1.21 | 1.89 | 0.79 | 1.24 | -25.09 | 81.33 | 30.70 | 224.74 | 0.6592 | -783.4 | -732.2 | |
| 9.38 | 11.88 | 6.18 | 7.83 | -25.43 | 81.31 | 30.68 | 224.32 | 0.6619 | -864.2 | -621.1 | |
| 0.00 | 0.86 | 0.00 | 0.55 | -23.86 | 80.48 | 29.84 | 225.45 | 0.6409 | -632.0 | -595.1 | |
| 0.00 | 1.03 | 0.00 | 0.66 | -24.09 | 80.23 | 29.60 | 224.96 | 0.6405 | -451.0 | -509.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
