SDO HMI 2011-11-12 11:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.33 | 104.48 | 30.96 | 183.85 | -13.54 | 122.21 | 72.13 | 254.87 | 0.9594 | 388.6 | 29.8 | |
|
previous
or next observation for the same group /

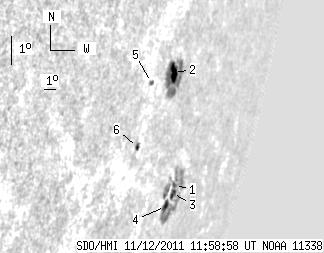

back to the solar disc SDO HMI 2011-11-12 11:58:58 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.95 | 56.80 | 1.79 | 108.39 | -14.71 | 123.54 | 73.45 | 253.83 | 0.9665 | 433.8 | 15.5 | |
| 6.71 | 42.35 | 10.65 | 67.68 | -11.09 | 120.83 | 70.75 | 257.23 | 0.9513 | 552.5 | 58.4 | |
| 2.58 | -1.00 | 4.90 | -1.00 | -14.96 | 123.54 | 73.46 | 253.58 | 0.9667 | 308.1 | 999999 | |
| 4.56 | -1.00 | 8.47 | -1.00 | -15.34 | 123.13 | 73.05 | 253.13 | 0.9651 | 411.9 | 999999 | |
| 1.72 | 2.15 | 2.50 | 3.12 | -11.30 | 118.99 | 68.90 | 256.76 | 0.9414 | 388.4 | 432.6 | |
| 1.81 | 3.18 | 2.65 | 4.66 | -13.29 | 118.93 | 68.84 | 254.66 | 0.9426 | -226.4 | -239.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
